Inspection During Intermediate Maintenance

1. Visually inspect the brake pads for wear.

1. 1.1 Only when changing brake fluid at the same time:  Perform visual inspection with wheels removed.

   > 440519 REMOVING AND INSTALLING WHEEL

Information

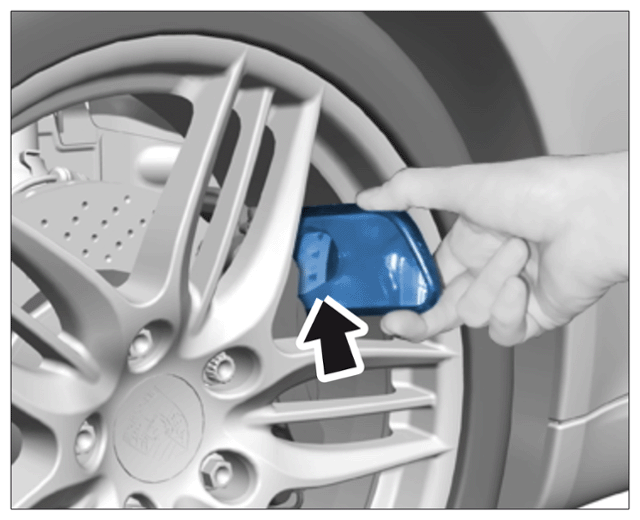

A mirror can be used as an aid -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking brake pads

1. 1.2 Outside of brake pad: Perform visual inspection through the cut-outs in the rim.
2. 1.3 Inside of brake pad: Perform visual inspection from below with the vehicle raised.

   > 4X00IN LIFTING THE VEHICLE
