Removing Brake-Disc Air Guide

1. Remove rear brake disc -1-  on trailing arm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

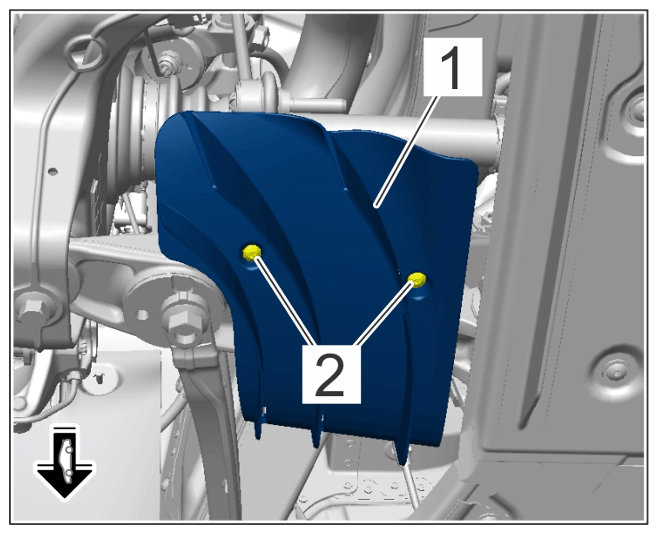

Air guide lower section

1. 1.1 Unscrew screws -2-  .
2. 1.2 Remove air guide lower -1-  section.
3. 1.3 Unclip upper section -3-  on the trailing arm and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

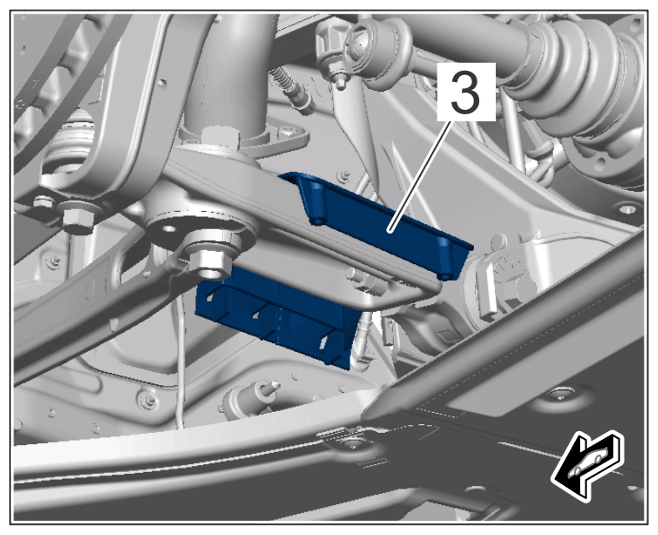

Rear air guide, upper section
