Installing Brake-Disc Air Guide

1. Install rear brake disc air guide -1 and 3-  onto trailing arm.
   1. 1.1 Clip upper section of air guide -3-  onto trailing arm.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear air guide, upper section

   2. 1.2 Position lower section of air guide -1-  onto top section and tighten screws -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

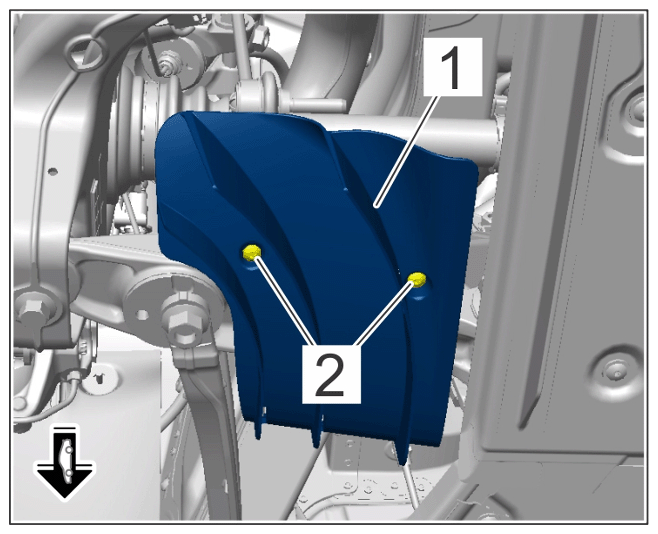

Rear air guide, lower section

> Tightening torque 3.2 N.m (2.4 ft lb.)
