Removing Rear Air Guide

Unscrew screws -2- on the rear air guide -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

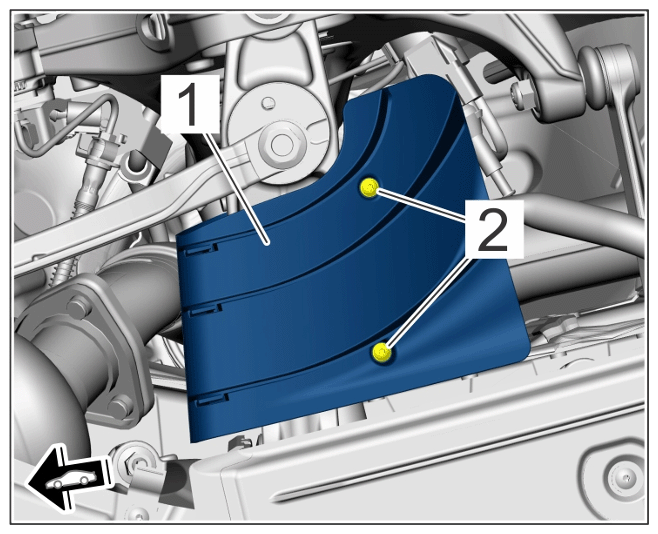

Screws on rear air guide
Loosen upper part -2- from lower part -1- and remove both parts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

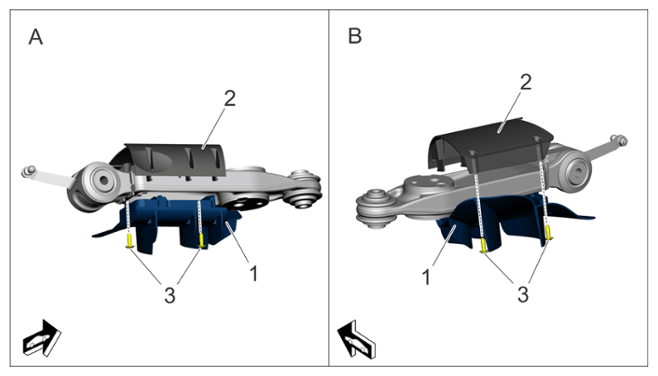

Rear brake disc air guide on trailing arm

A	Front view
B	Rear view
1	Lower part of rear brake disc air guide
2	Upper part of rear brake disc air guide
3	Screws, M5 x 16
