Removing Front Air Guide

  1. Clip out front air guide -1-  at the control arm -Arrows-  and remove it.

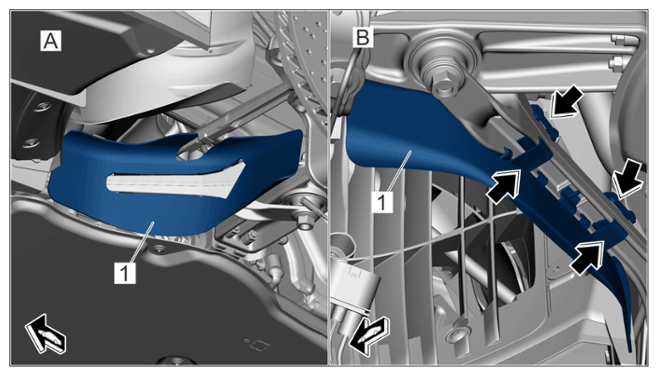

G16222323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front brake-disc air guide

LHD vehicle  Front view
RHD vehicle  Rear view
1  Front brake-disc air guide
