Installing Rear Air Guide

1. Position lower part -1-  with upper part -2-  on the control arm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

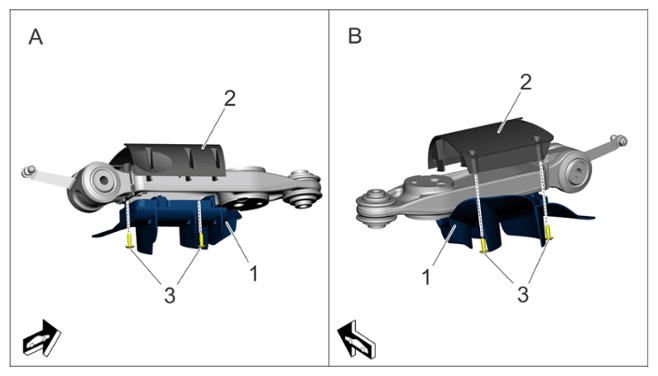

   Rear brake disc air guide on trailing arm

   LHD vehicle	Front view
   RHD vehicle	Rear view
   1	Lower part of rear brake disc air guide
   2	Upper part of rear brake disc air guide
   3	Screws, M5 x 16

2. Screw -2-  in and tighten screws on the air guide.

   > Tightening torque 3.2 N.m (2.4 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

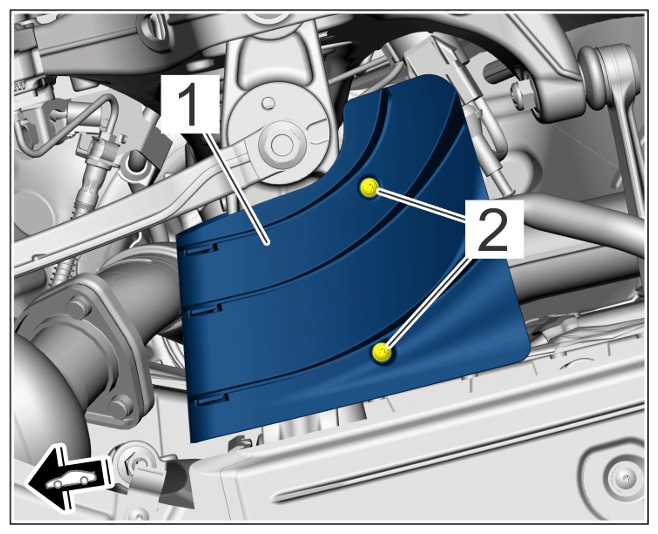

Screws on rear air guide
