Installing Front Air Guide
- Position the air guide -1-
on the front control arm and clip it in -Arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

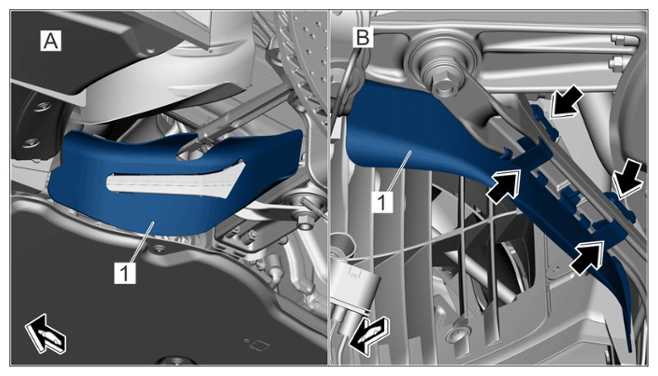

Front brake-disc air guide
| LHD vehicle |
Front view |
| RHD vehicle |
Rear view |
| 1 |
Front brake-disc air guide |
