WM, 460519 Removing And Installing Brake Pedal: Tools

Tool denomination	Type	Tool number	Image
Unlocking tool	VW tool	> T40024	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...	Toleranc...	Toleranc...
Mounting saddle to body	Hexagon-head bolt, M8 x 25	Tightening torque	23 N.m (17 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting saddle
Mounting saddle to body	Hexagon nut, M8	Tightening torque	23 N.m (17 ft lb.)

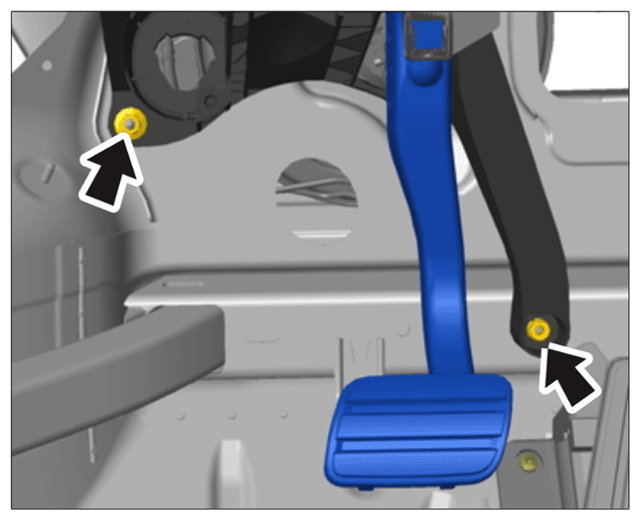

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Disconnecting pedals
Brake booster to pedal module	Torx screw, M8 x 165 x 77	Tightening torque	23 N.m (17 ft lb.)

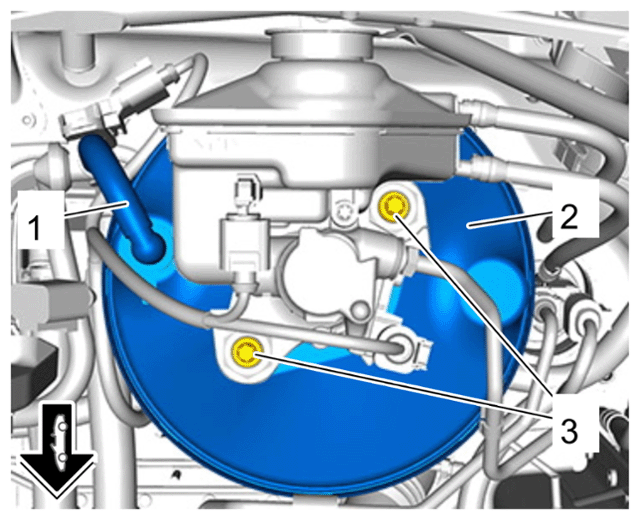

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake booster vacuum line
