Removing Brake Pedal

Information

The pictures shown in this document may differ from the original.

1. Only for PDK:  Disengage push rod for brake booster (in the footwell).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressing out push rod

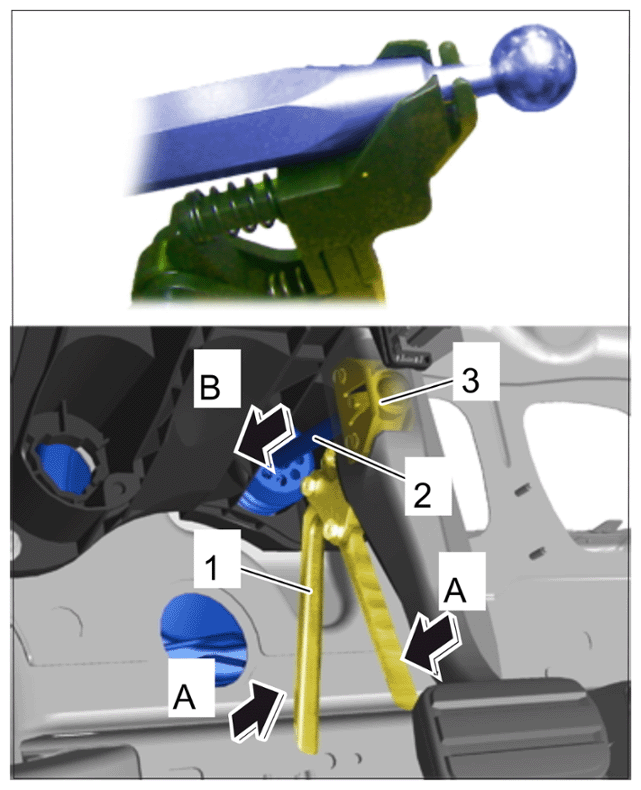

   1. 1.1 > T40024 - Unlocking tool-1-  must be inserted ahead of the ball joint on the push rod -2-  from below.
   2. 1.2 Press unlocking tool together -arrows A-  and separate the ball joint from the retaining clip -3-  (-arrow B-  ).
2. Only for PDK:  Remove pedals.
   1. 2.1 Unscrew and remove fastening screws -arrows-  above the brake booster.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting pedals

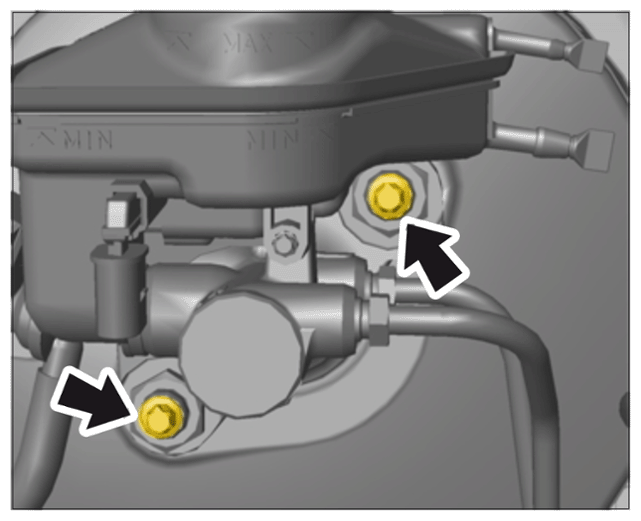

   2. 2.2 Unscrew and remove fastening screws -arrows-  from the brake booster.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting pedals

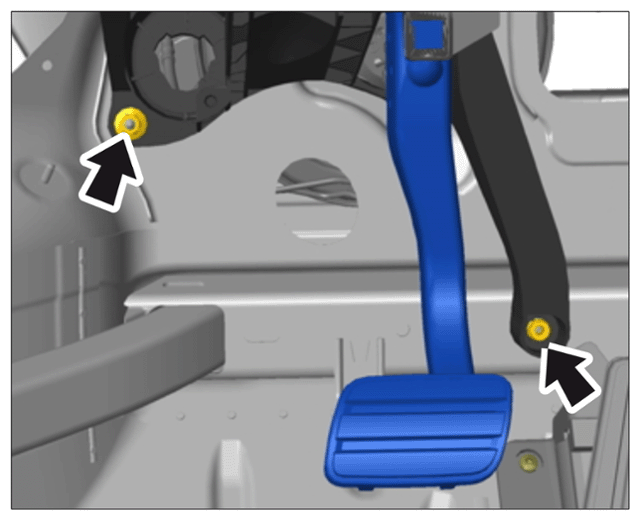

   3. 2.3 Screw off inner fastening nuts -arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting pedals

   4. 2.4 Remove pedals.
3. Remove brake pedal.

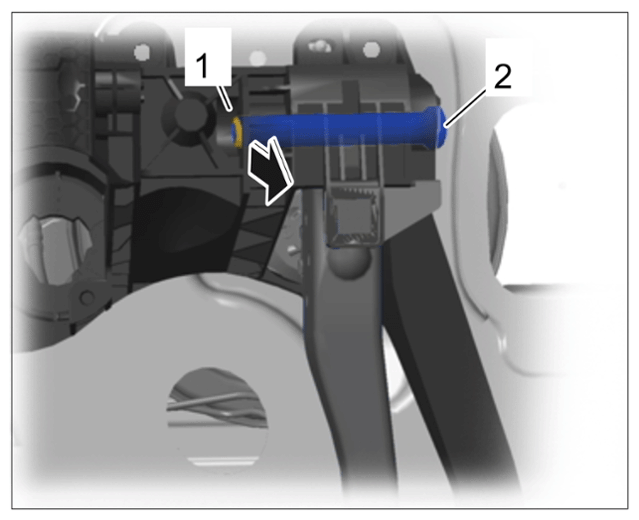

1. 3.1 Pull out the lock -1-  at the left of the brake pedal shaft -2-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake pedal lock

2. 3.2 Press brake pedal shaft out by a few millimeters from left to right using a suitable tool.

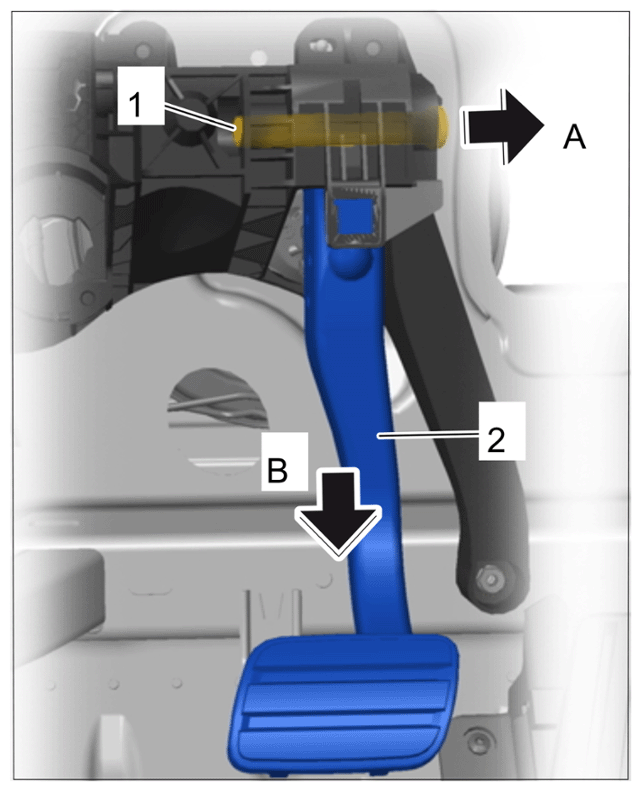

3. 3.3 Carefully lever the brake pedal shaft -1-  out of the brake pedal -2-  using a suitable tool -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing brake pedal

4. 3.4 Remove brake pedal -2-  by pulling it downwards -arrow B-  .
