Removing Front Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

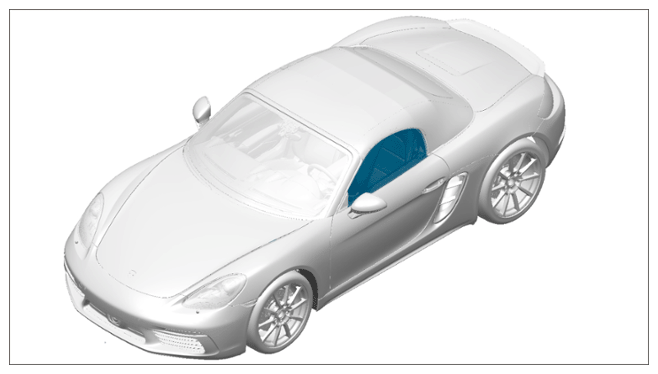

Installation position of door window glass

1. Loosen the door window.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

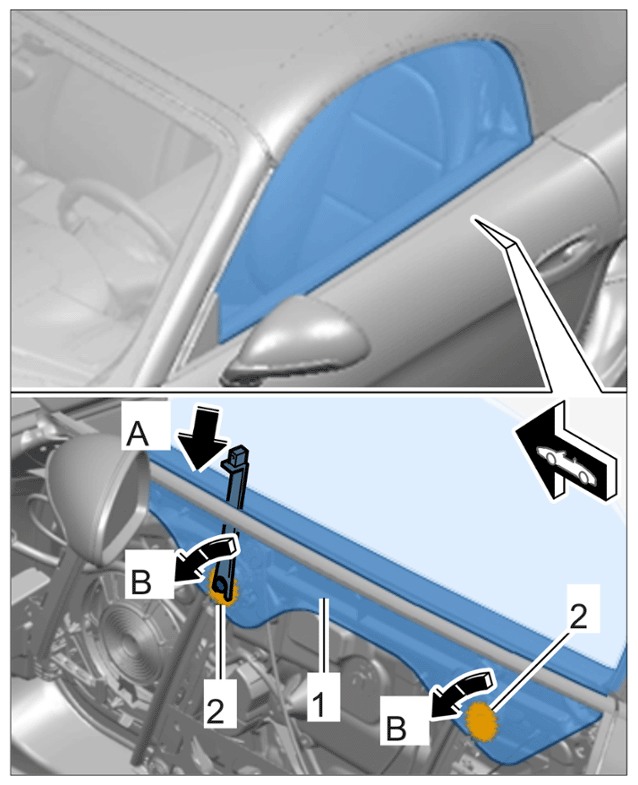

   Loosen the door window

   1. 1.1 Insert special tool > 9842/2 - hook wrench  between the door channel and door window glass -1-arrow A-  .
   2. 1.2 Unscrew hook screws -2-  using the special tool -Arrow B-  .

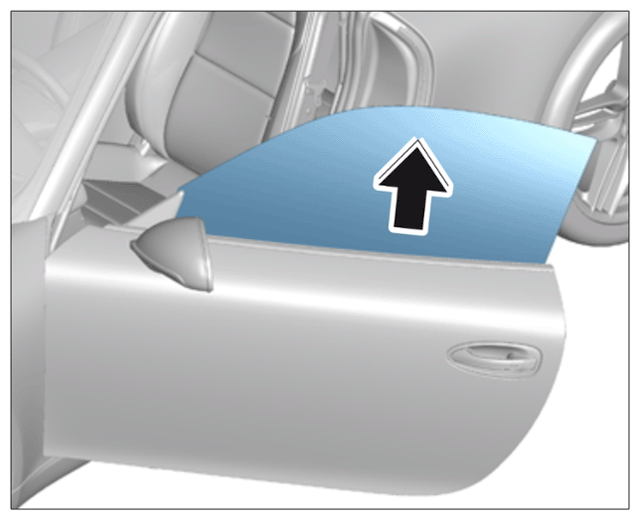

2. Guide the door window glass out of the window guide and remove it -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing door window pane
