Installing Front Door Window
NOTE:
Dirty door window glass installed
- Risk of irreparable damage to front window channel seal
→ During installation, make sure that no lubricant from the window guides gets on to the door window glass.
→ Clean the door window glass and check that the front window channel seal is clean.
→ Replace damaged window channel seal.

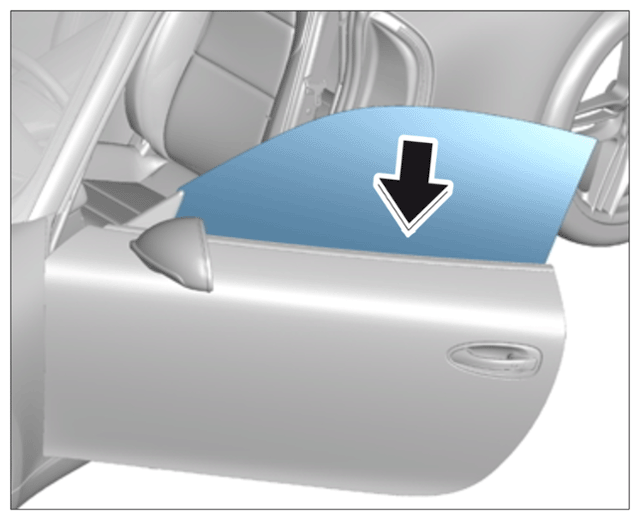

- Insert door window glass into door channel -arrow-
.
Inserting door window glass into the guide

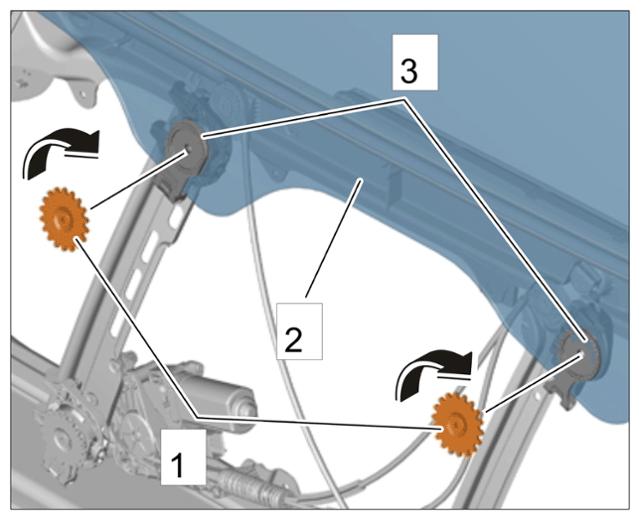

- Position the door window glass holes -2-
in such a way that they are parallel to the bores in the mountings for the door window glass -3-
.
Securing door window glass
- Fit the hook screws -1- from behind and tighten them using a screwdriver, turning it anti-clockwise -arrows- until the mountings for the door window glass are touching the door window glass (the window must still be easy to adjust).
