Installing (Front Lateral) Seal For Convertible-Top Compartment Lid

  1. Remove adhesive residue from the body and seal using isopropyl and replace adhesive strips.

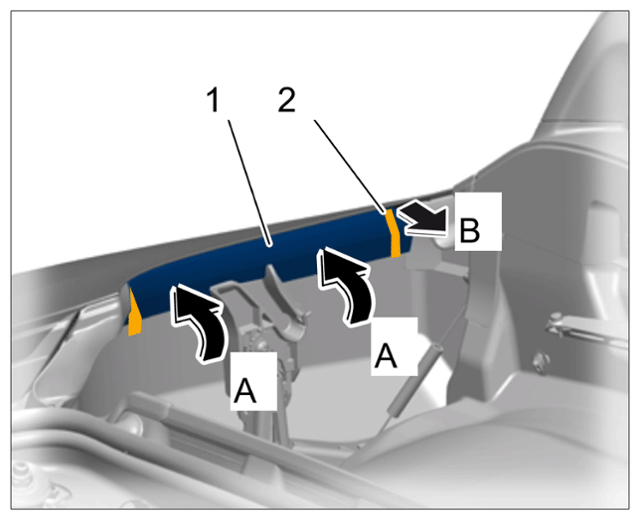

    G16223685Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing seal for convertible-top compartment lid

  2. Clip in seal -1-  in direction -A-  . Make sure it is positioned correctly.
  3. Pull off paper strip -2-  and press on seal -1-  .
