Home >> Porsche >> 2020 >> 718 Spyder >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> 61 Convertible Top, Hardtop -- 718 SPYDER >> WM, 61931933 Removing And Installing (Centre) Seal For Lid F. Convert. Top Housing >> Removing (Centre) Seal For Lid F. Convert. Top Housing >> Removing (Centre) Seal For Convertible-Top Compartment Lid

Removing (Centre) Seal For Convertible-Top Compartment Lid

G16223679Courtesy of PORSCHE CARS NORTH AMERICA, INC.

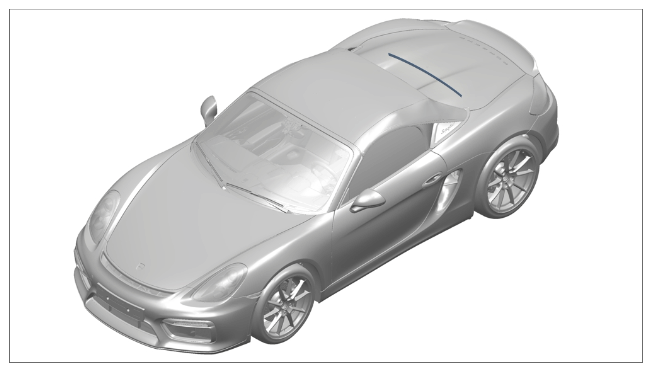

Installation position of centre seal for convertible-top compartment lid

Pull seal -1-  out of the seals at the sides in direction -arrow A-  and remove by pulling upwards. -arrow-

G16223680Courtesy of PORSCHE CARS NORTH AMERICA, INC.

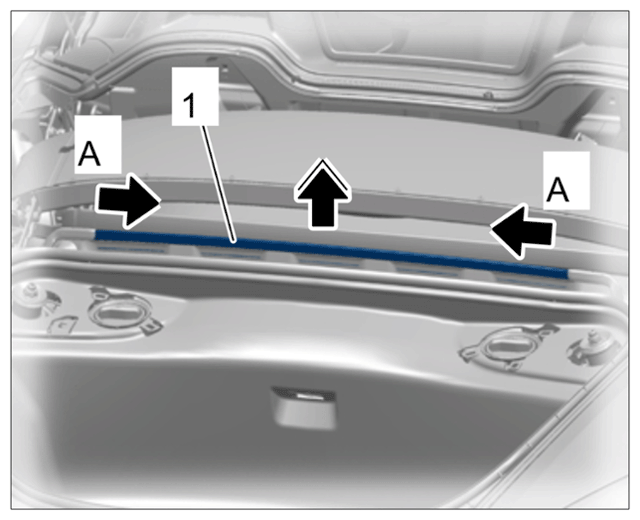

Removing seal
