Removing (Rear Lateral) Seal For Convertible-Top Compartment Lid

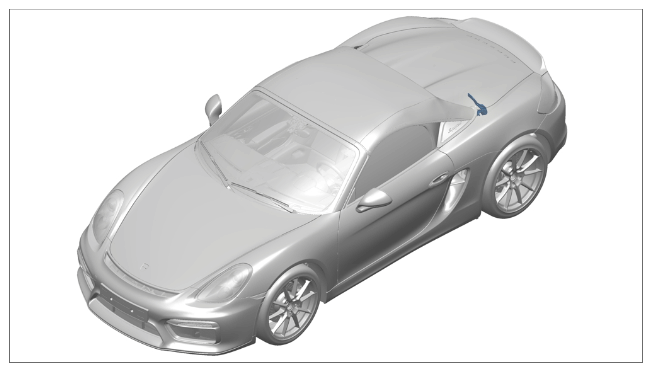

G16223677Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of lateral seal for convertible-top compartment lid

  1. Open the rear lid.
  2. Drill out rivets -2-  .

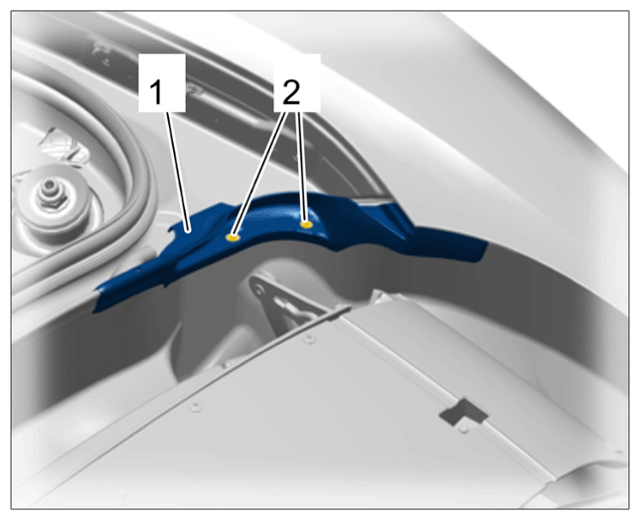

    G16223678Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing lateral seal for convertible-top compartment lid

  3. Lift the seal -1-  up and off.
