Removing Rubber Seal With Rail (Upper Lateral)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

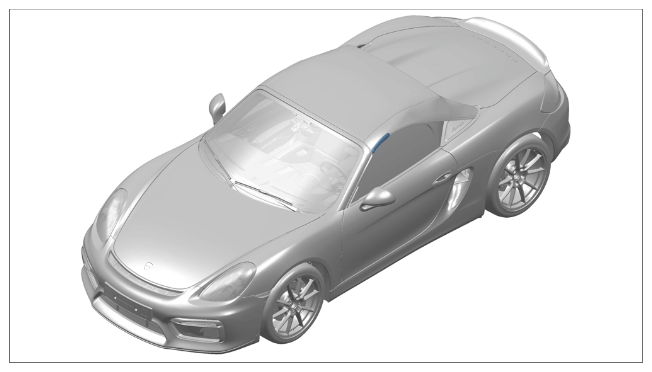

Installation position of rubber seal with upper lateral rail

1. Move convertible top into a partly opened position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

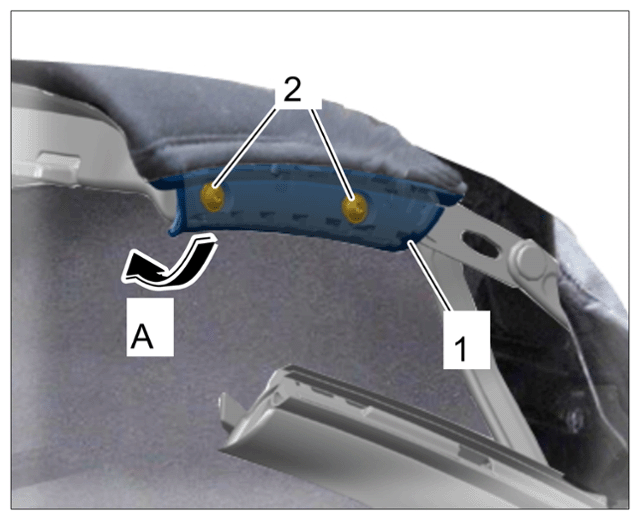

   Removing rubber seal with rail (upper lateral)

2. Press seal down in direction of arrow -A-  .
3. Unscrew fastening screws -2-  .
4. Remove rubber seal with rail -1-  .
