Removing Rubber Seal With Rail (Centre Lateral)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

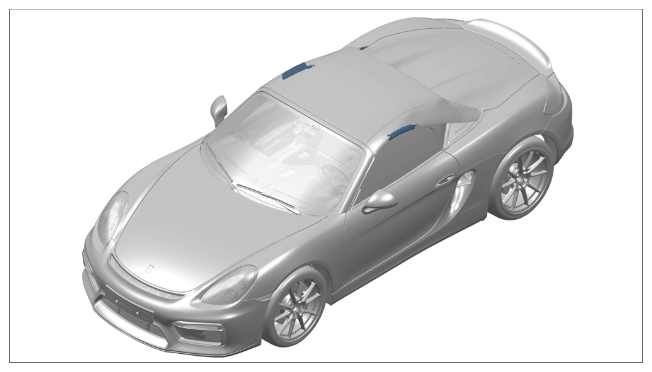

Installation position of rubber seal with centre lateral rail

1. Move convertible top into a partly opened position.
2. Open clip -3-  and loosen straps (Note the routing of the straps before removal).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

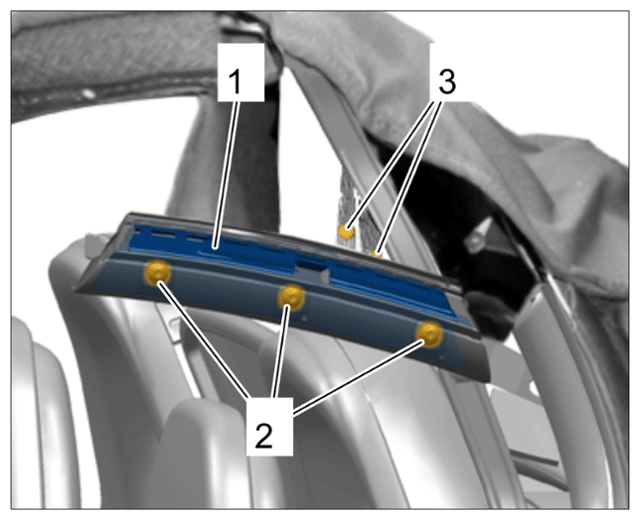

   Removing rubber seal with rail

3. Remove rubber seal with rail.
   1. 3.1 Press rubber seal down and unscrew and remove fastening screws -2-  .
   2. 3.2 Remove rubber seal with rail -1-  .
