Installing Rubber Seal With Rail (Centre Lateral)

  1. Install rubber seal with rail.

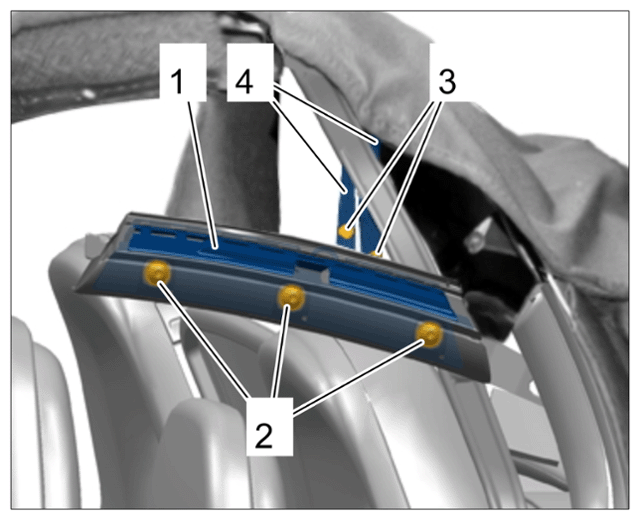

    G16223669Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing rubber seal with rail

    1. 1.1 Fit seal with rail -1-  .
    2. 1.2 Press rubber seal up and tighten fastening screws -2-  to the specified torque > Tightening torque 9.7 N.m (7.5 ft lb.)  .
  2. Fasten straps -4-  with clips -3-  on rubber seal with rail -1-  . Check that straps are routed correctly.
