Removing Rubber Seal With Rail (Lower Lateral)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

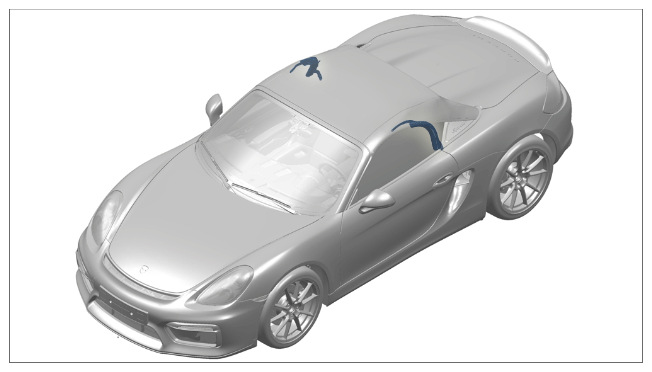

Installation position of rubber seal with rail (lower lateral)

1. Move convertible top into a partly opened position.
2. Unhook seal at the top.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

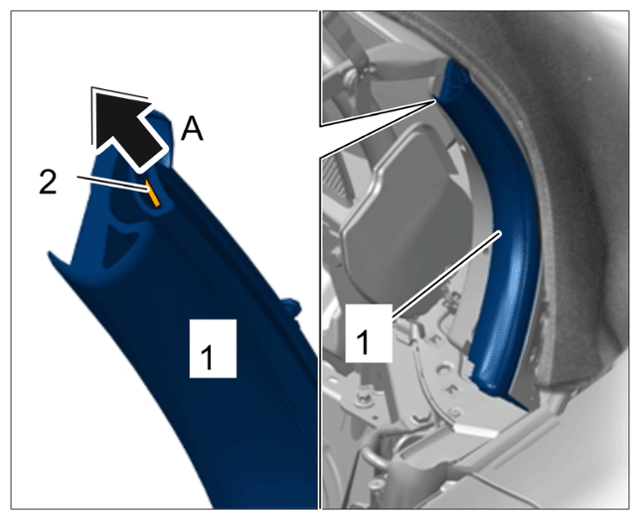

   Unhooking seal

   1. 2.1 Pull seal -1-  up. Arrow -A-
   2. 2.2 Unhook seal -1-  at the clip -2-  .
3. Detach rubber seal -1-  from the rail -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

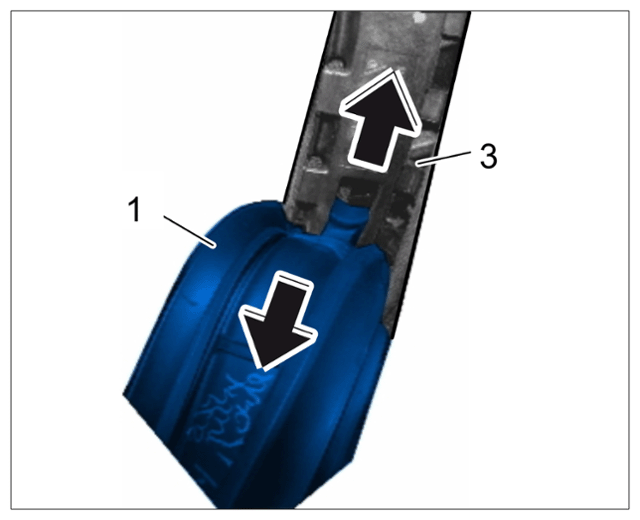

   Detaching seal

4. Remove rubber seal with rail.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

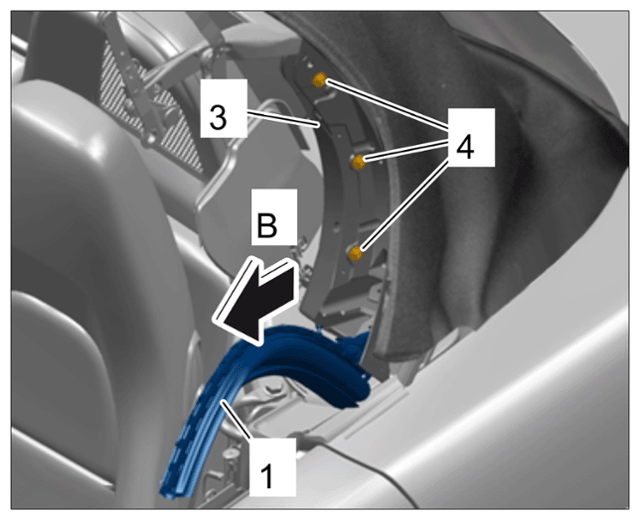

   Pulling off seal

   1. 4.1 Unscrew and remove fastening screws -4-  .
   2. 4.2 Remove rubber seal with rail. Arrow -B-
