Installing Rubber Seal With Rail (Lower Lateral)

Fit fastening screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

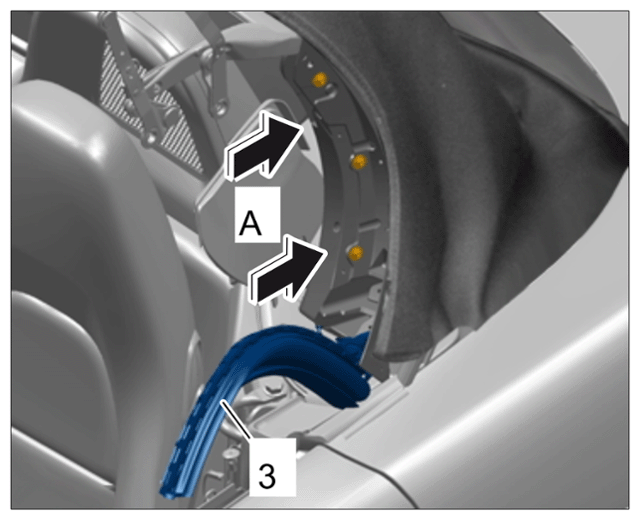

Pressing retaining strip back
1. 1.1 Press rail back completely. Arrows -A-
Tighten fastening screws to the specified tightening torque. > Tightening torque 6 N.m (4.5 ft lb.)
Hook in seal at the top.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

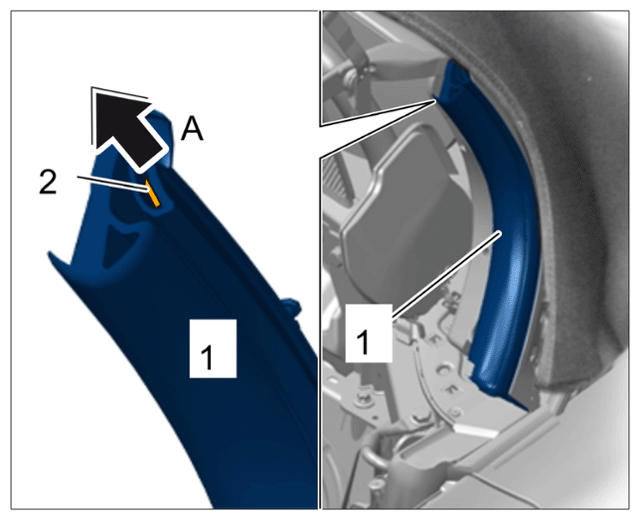

Hooking in seal
1. 4.1 Pull seal -1- up. Arrow -A-
2. 4.2 Hook in seal -1- at the clip -2- .
Engage seal completely in the rail. Arrows -B- and -C-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

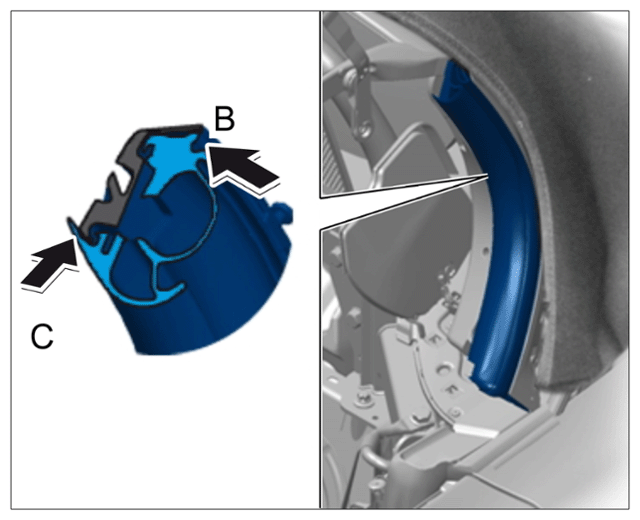

Engaging seal
