Removing Tension Rope At The Sides

Information

The convertible top must be moved to various positions in order to gain the best possible access to the fitting areas shown below.

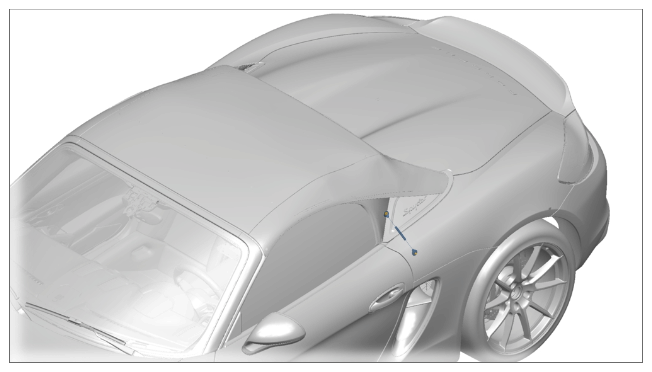

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of tension rope at the sides

1. Open the rear lid.
2. Unscrew fastening screws -1-  and remove tension rope -2-  .

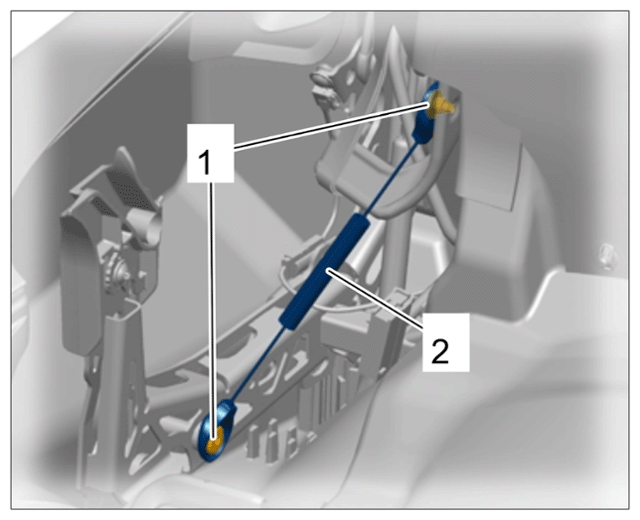

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing tension rope at the sides
