Removing Inner Tension Rope At The Sides

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of inner tension rope at the sides

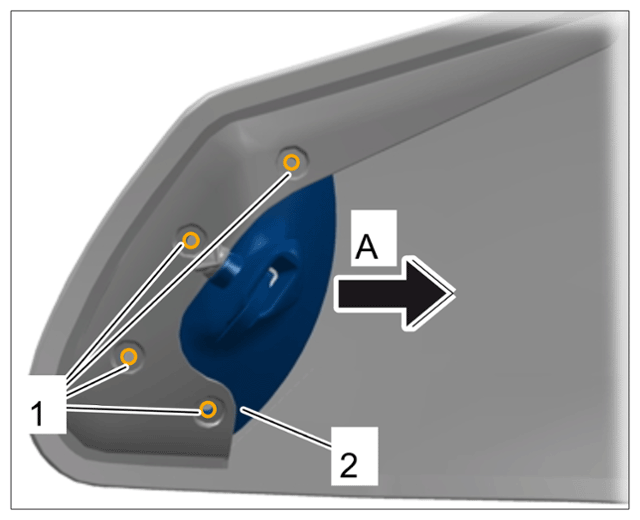

1. Open rear convertible top lock.
2. Drill out rivets for convertible top lock -1-  and pull convertible top lock -2-  out in direction of arrow -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing rear lock

3. Disengage tension rope from rear convertible top lock.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

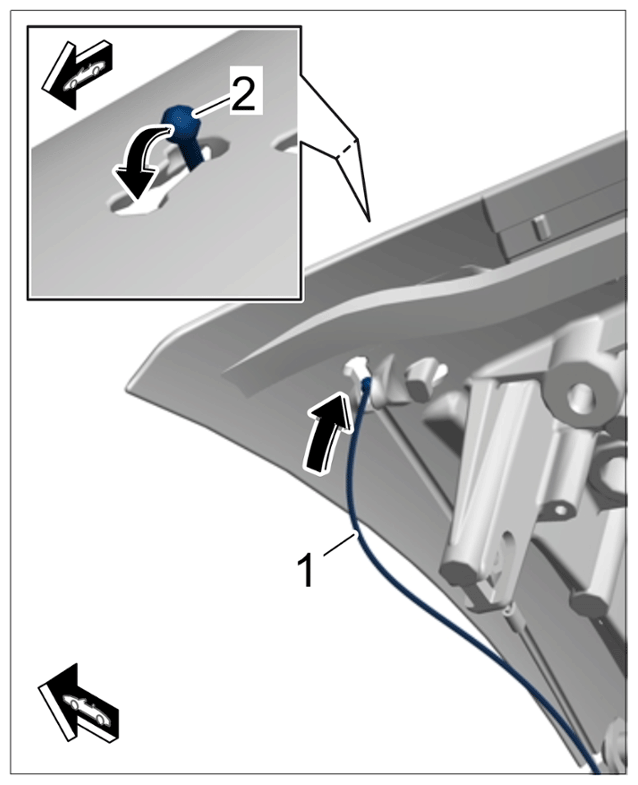

   Disengaging inner tension rope at the sides

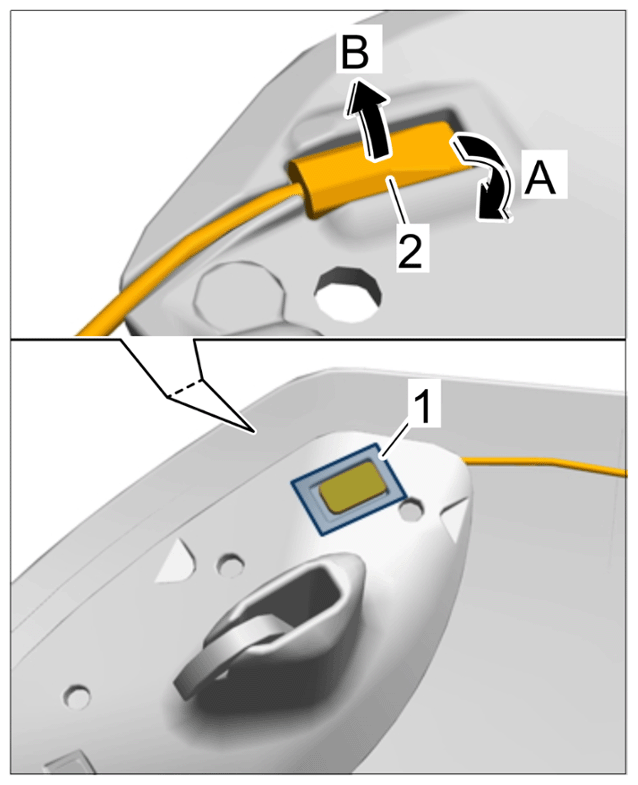

   1. 3.1 Pull off adhesive strips -1-  .
   2. 3.2 Press end of tension rope -2-  up in direction of arrow -A-  and guide it out of the convertible top lock in direction of arrow -B-  .
4. Disengage locking ball -2-  and guide tension rope -1-  out of the roof frame.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disengaging tension rope

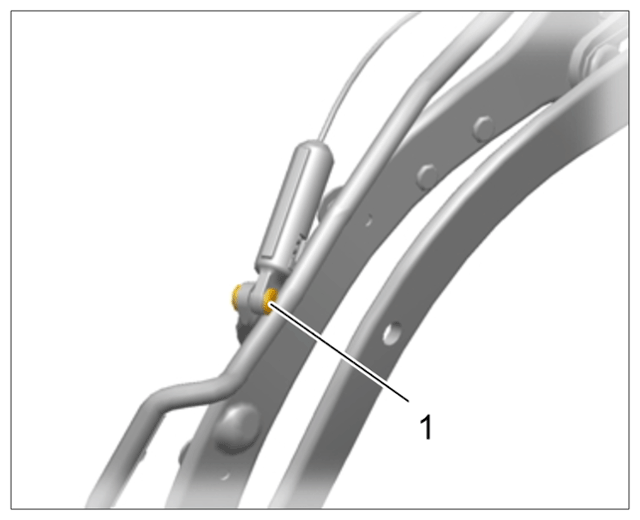

5. Drill out side rivets at the bottom -1-  and detach convertible top covering.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drilling out lower rivets at the sides

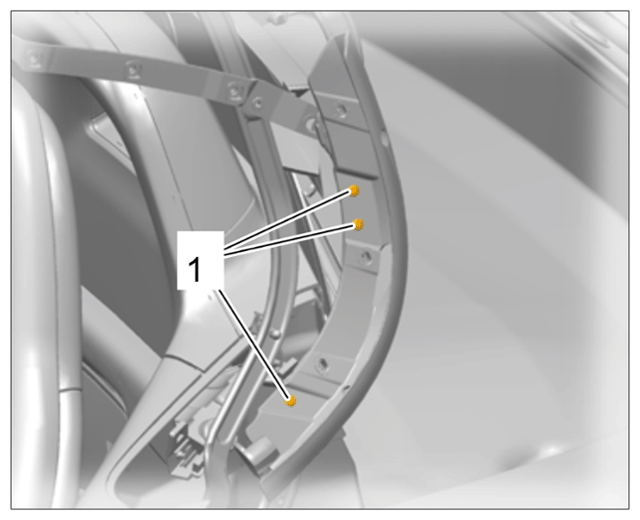

6. Drill out rivets for tensioning spring -1-  from the passenger compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drilling out rivets for tension rope

   Information

   The tension rope can be pulled in during installation using the cord.

7. Guide out inner tension rope at the sides.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

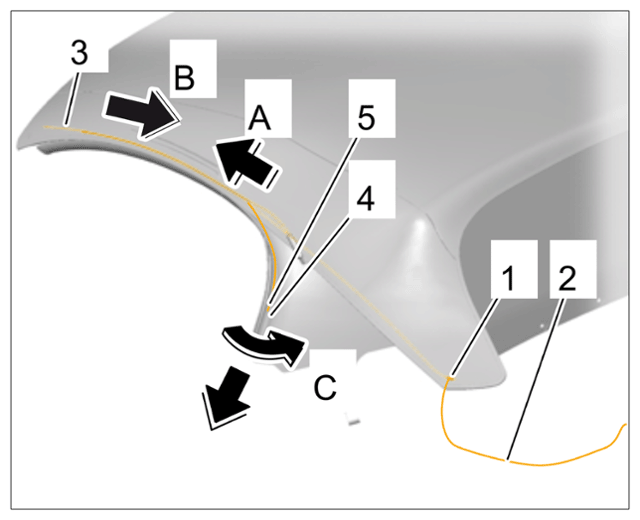

   Guiding out inner tension rope at the sides

   1. 7.1 Secure the cord -2-  to the tension rope -1-  .
   2. 7.2 Guide end of tension rope -1-  out in direction of arrow -A-  .
   3. 7.3 Guide end of tension rope -3-  out in direction of arrow -B-  .
   4. 7.4 Press convertible top covering -4-  aside in direction of arrow -C-  .
   5. 7.5 Guide ends of tension rope -1, 3 and 5-  downward and pull them out.
