Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Type	Basic val...
Fastening screw for flap mechanism, outer	Tightening torque	3.2 N.m (2.4 ft lb.)

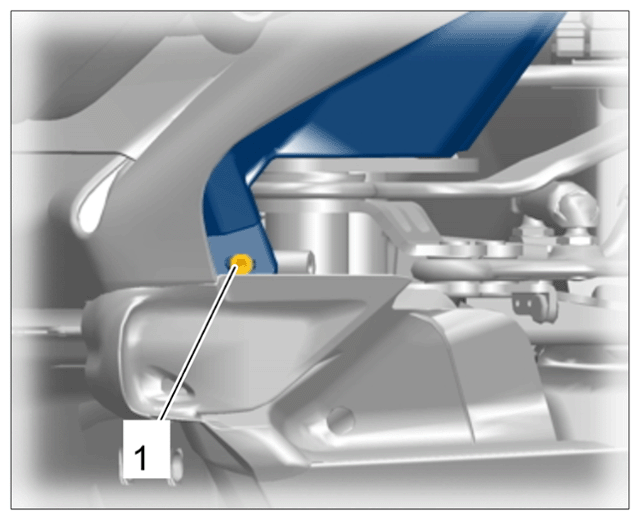

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for flap, outer
Fastening screw for flap, inner	Tightening torque	3.2 N.m (2.4 ft lb.)

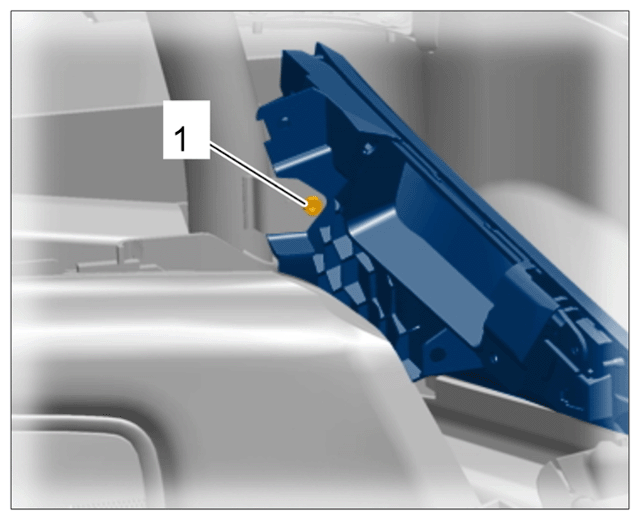

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner fastening screw
Fastening screw for flap mechanism, side	Tightening torque	3.2 N.m (2.4 ft lb.)

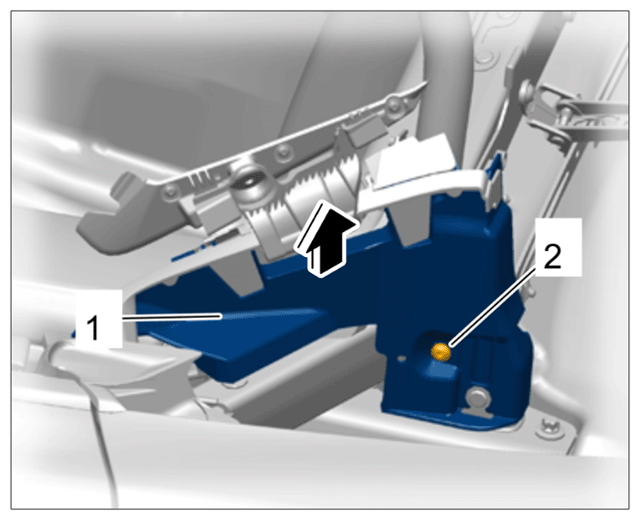

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Flap mechanism
