Removing Flap Mechanism

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

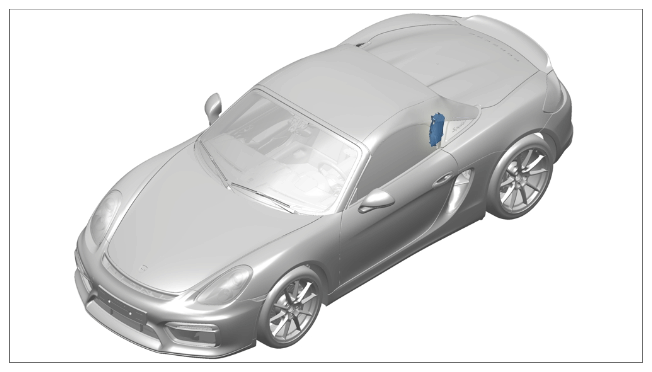

Installation position of flap

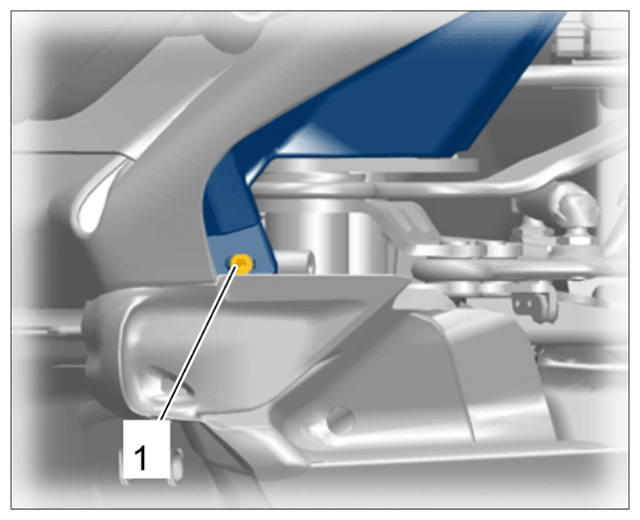

1. Unscrew and remove inner fastening screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing inner fastening screw

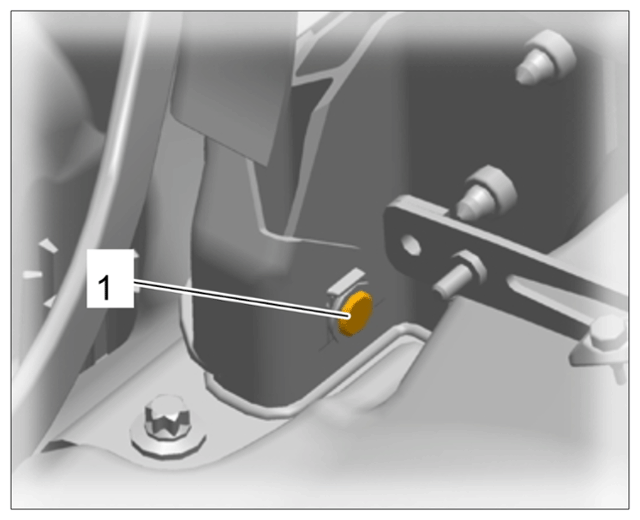

2. Unscrew and remove outer fastening screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing outer fastening screw

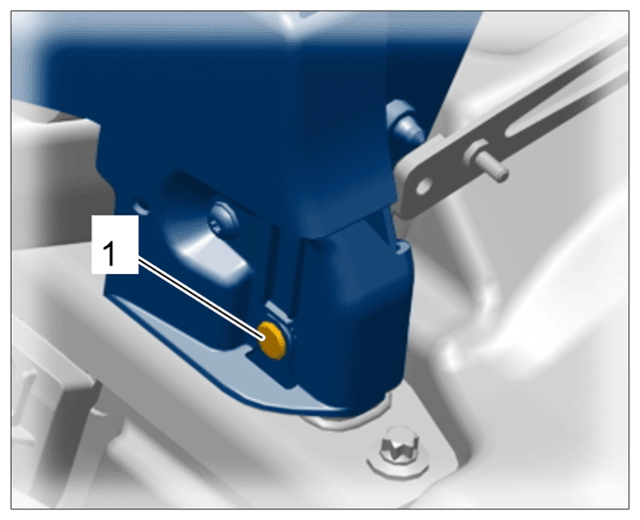

3. Drill out outer rivets -1-  using an angle drill.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Outer rivets

4. Drill out inner rivets -1-  using an angle drill.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inner rivets

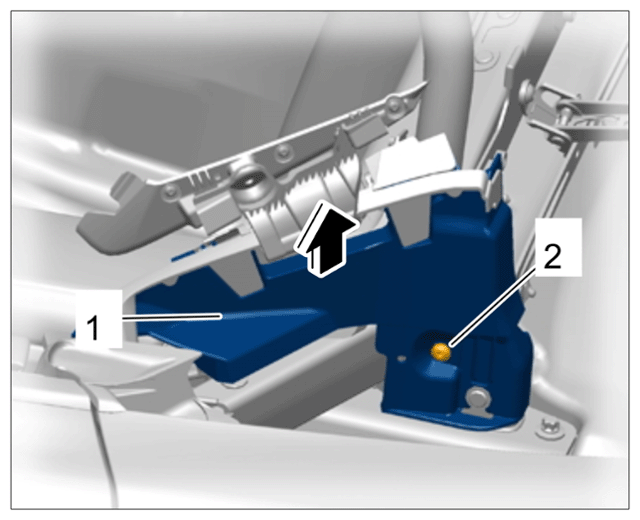

5. Unscrew and remove fastening screw -2-  and lift flap mechanism up and off -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing flap mechanism
