Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Type	Basic val...	Toleranc...
Fastening screw for bracket for mount	Tightening torque	9 N.m (6.5 ft lb.)	+/- 1 N.m (0.5 ft lb.)

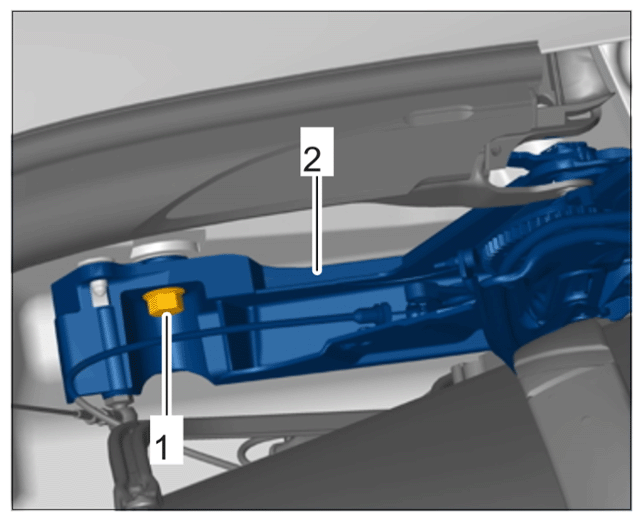

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing bracket for mount at the rear
Fastening screw for rear convertible top support	Tightening torque	46 N.m (34 ft lb.)

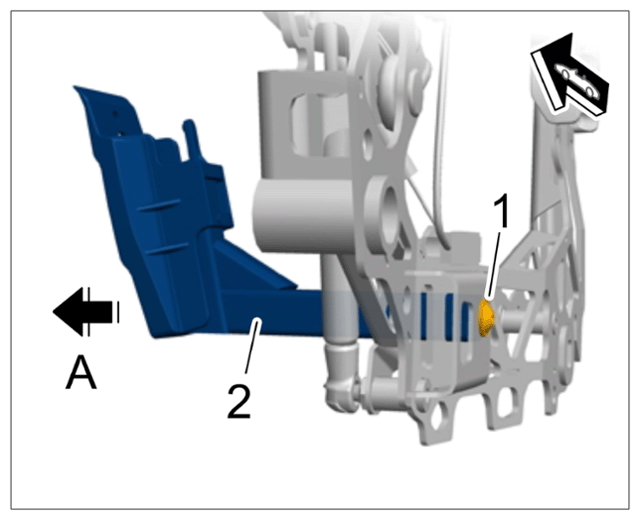

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening convertible top at the rear
Fastening screw for convertible top support/roll-over bar, front	Anziehdreh moment	46 N.m (34 ft lb.)

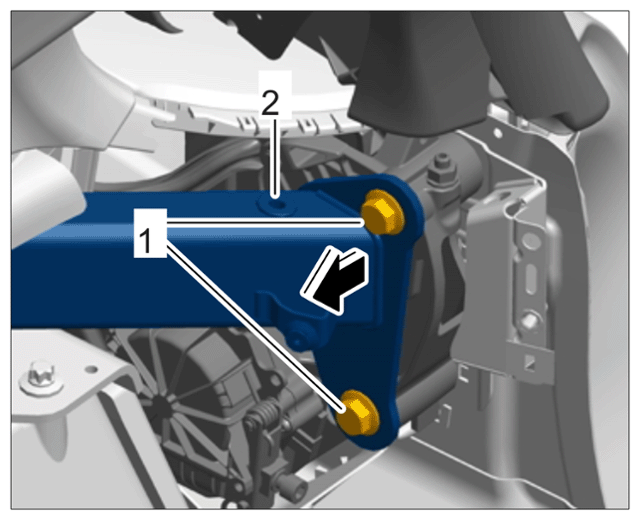

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening front convertible top
Fastening screw for wire harness on B-pillar for convertible top frame	Tightening torque	9 N.m (6.5 ft lb.)	+/- 1 N.m (0.5 ft lb.)

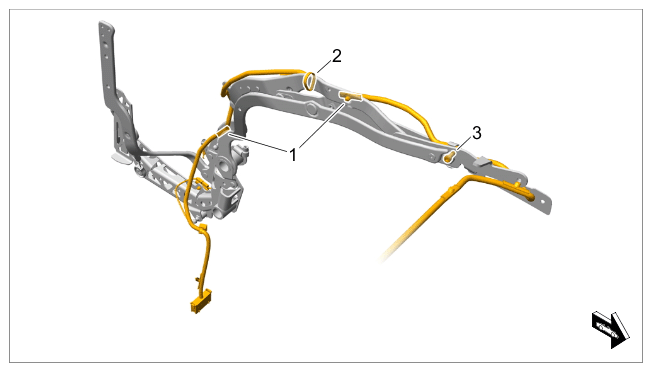

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing wiring harness for roof
Fastening screw for lid support bearing	Tightening torque	9 N.m (6.5 ft lb.)	+/- 1 N.m (0.5 ft lb.)

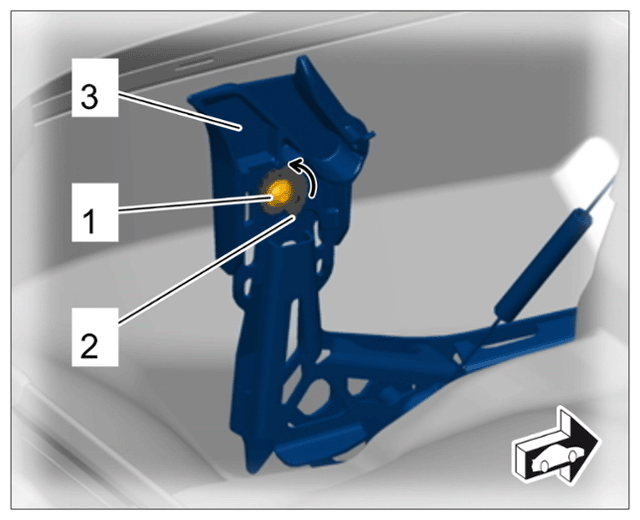

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lid support bearing
