Disassembling Convertible Top Frame

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

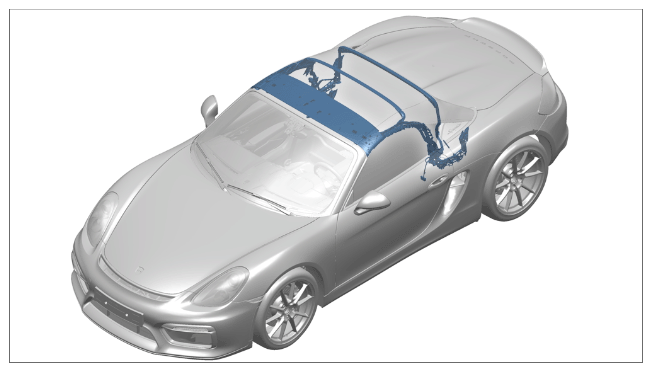

Installation position of convertible top frame

1. Remove roof frame.
   1. 1.1 Unscrew and remove fastening screws -1-  for filler pieces.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing filler pieces

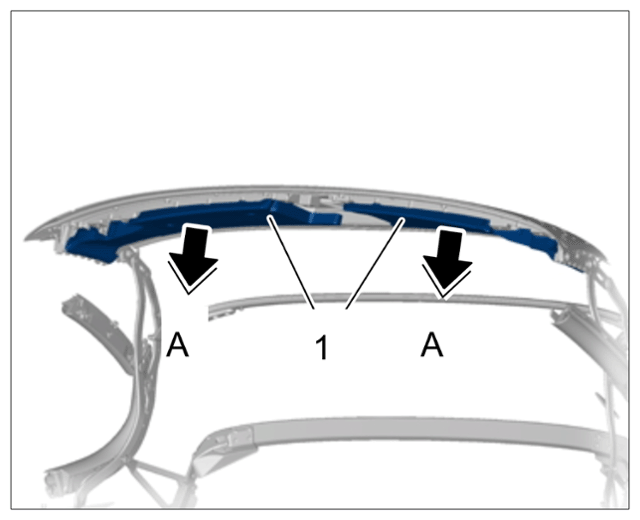

   2. 1.2 Remove filler pieces -1-  by pushing them down in direction of arrow -A-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing filler pieces

   3. 1.3 Loosen clips -1-  and cut off tie-wrap -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

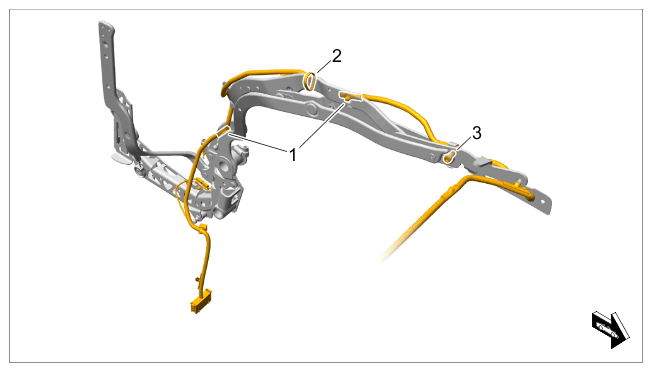

      Removing wire harness

   4. 1.4 Remove wire harness -3-  .
   5. 1.5 Unscrew and remove fastening screws -1-  on the inner side of the roof frame.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Loosening inner roof frame

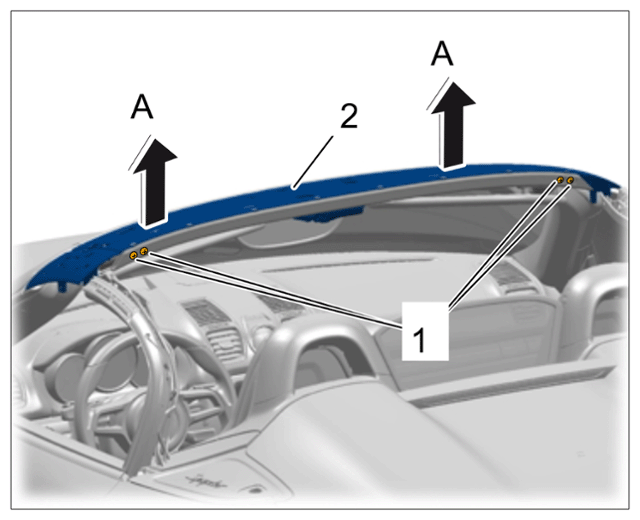

   6. 1.6 Unscrew fastening screws at the rear of the roof frame -1-  and lift the roof frame -2-  up and off.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing front roof frame

   WARNING: Preloaded or pressurized components

   • Risk of squashing or bruising

     → Do not reach into the danger area.

     → Relieve tension on components before starting work.

     → Secure components to prevent them from loosening suddenly.

   Information

   The procedure is identical for both ends of the pneumatic spring.

2. Remove pneumatic spring.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing pneumatic spring

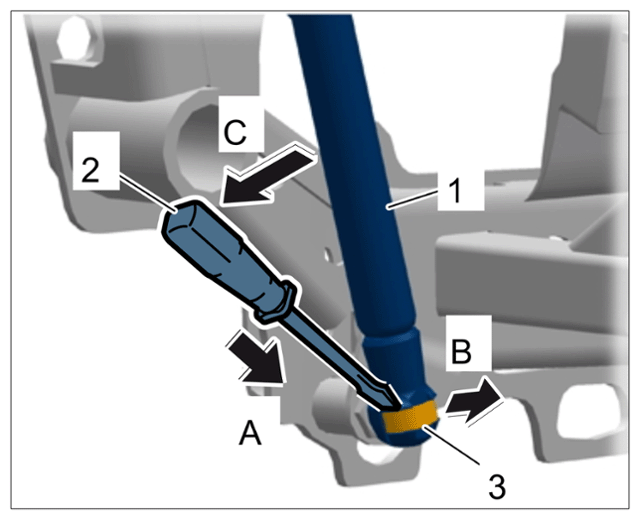

   1. 2.1 Insert a screwdriver -2-  between the head of the pneumatic spring and the safety clip -3-  in direction of arrow -A-  .
   2. 2.2 Loosen safety clip on pneumatic spring by levering the screwdriver -2-  in direction of arrow -B-  . The safety clip remains at the head of the pneumatic spring.
   3. 2.3 Pull pneumatic spring -1-  off the ball joint in direction of arrow -B-  .
   4. 2.4 Remove pneumatic spring.
3. Remove lid support bearing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing lid support bearing

   1. 3.1 Mark position of the eccentric adjuster -2-  .

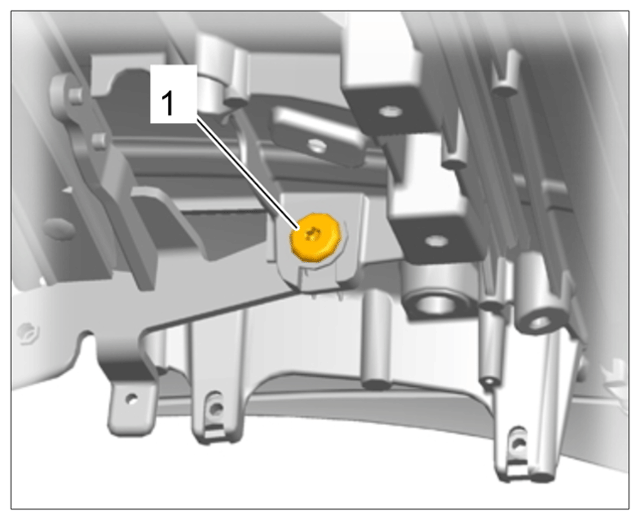

   2. 3.2 Unscrew and remove fastening screw -1-  for bearing and loosen eccentric adjuster.
   3. 3.3 Lift bearing -3-  up and off.
4. Remove microswitch for roof.

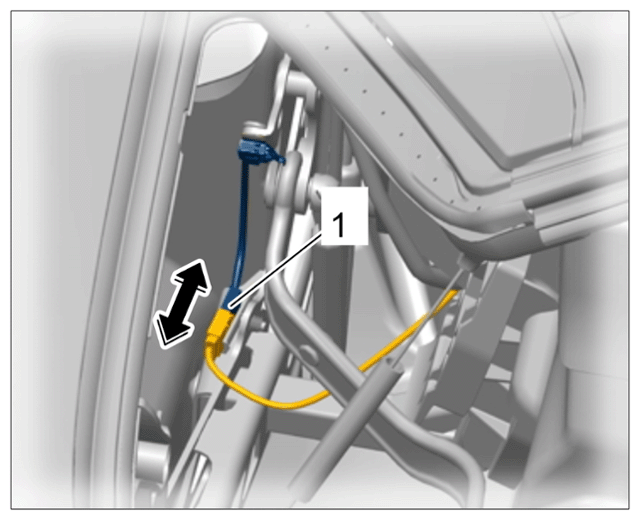

   1. 4.1 Release and disconnect electric plug connection -1-  for microswitch.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting plug connection for microswitch

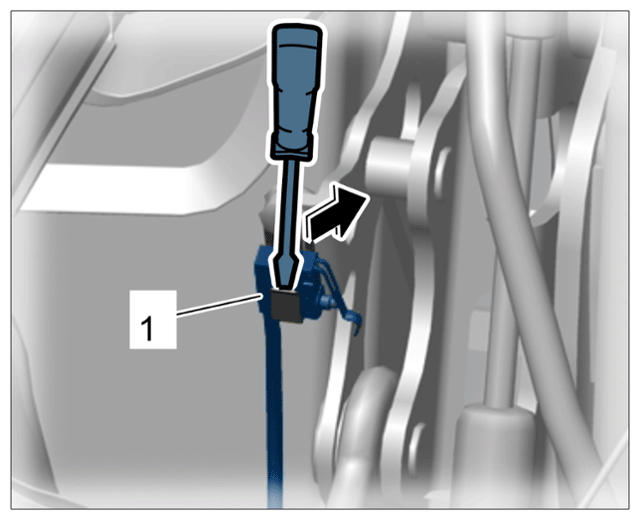

   2. 4.2 Unclip microswitch for roof -1-  and lift wiring harness up and out.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unclipping microswitch for roof

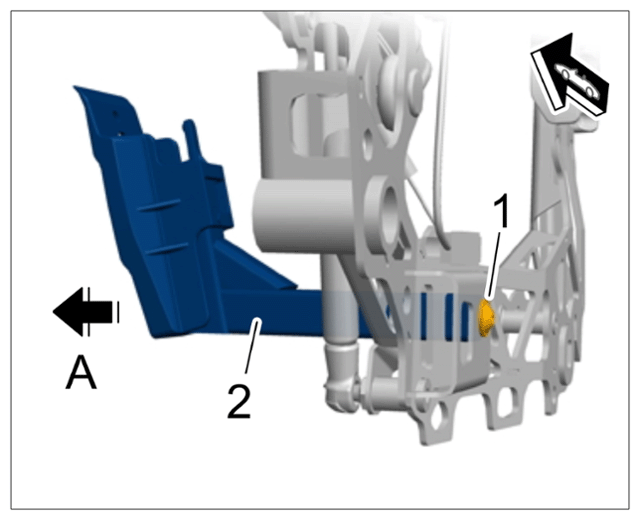

5. Unscrew and remove fastening screw -1-  and remove bracket for mount -2-  in direction of arrow -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing bracket for rear mount

6. Remove wire harness for roof.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing wire harness for roof

   1. 6.1 Unclip wire harness -1-  and cut off tie-wrap -2-  .
   2. 6.2 Unscrew fastening screw for wire harness -3-  and remove wire harness.
