Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

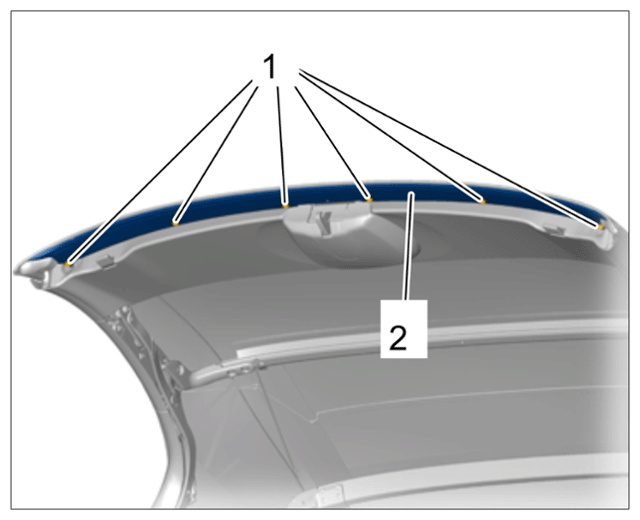

| Retaining strip for convertible top covering to roof frame | Tightening torque | 6 N.m (4.5 ft lb.) | +/- 1 N.m (0.5 ft lb.) | ||
|
Removing retaining strip for convertible top covering at the front |
|||||

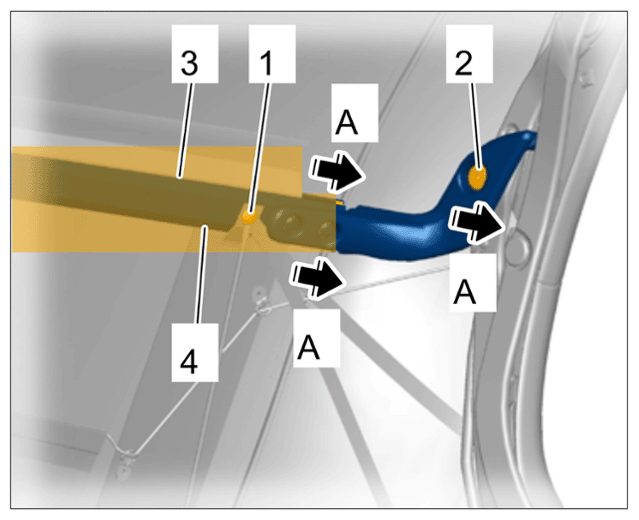

| Fastening screw for front roof strut | Tightening torque | 9 N.m (6.5 ft lb.) | +/- 1 N.m (0.5 ft lb.) | ||
|
Removing front roof strut |
|||||
