Removing Convertible Top Covering

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

Information

The convertible top must be moved to various positions in order to gain the best possible access to the fitting areas shown below.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

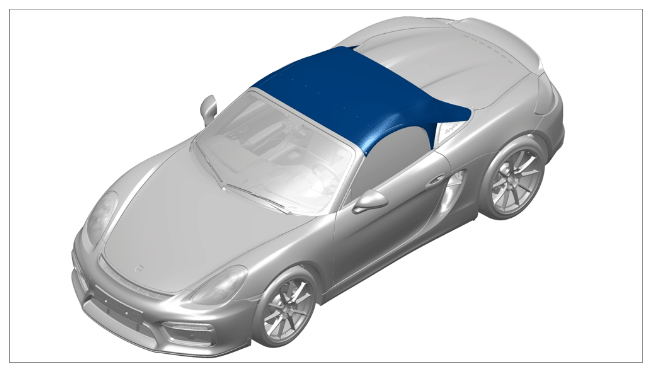

Installation position of convertible top covering

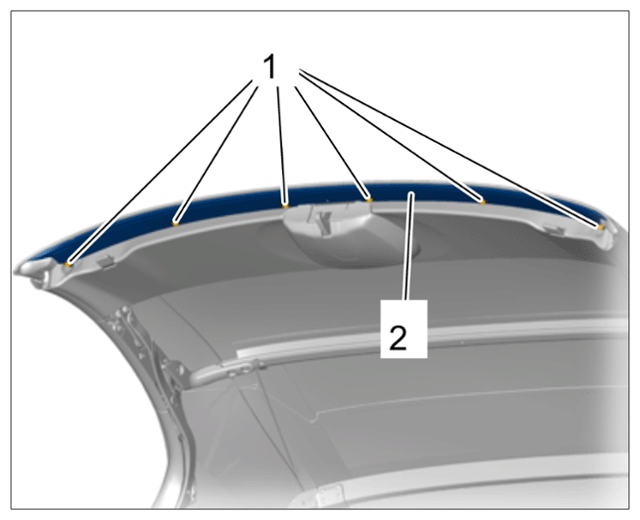

1. Unscrew fastening screws -1-  and remove retaining strip -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing retaining strip for convertible top covering at the front

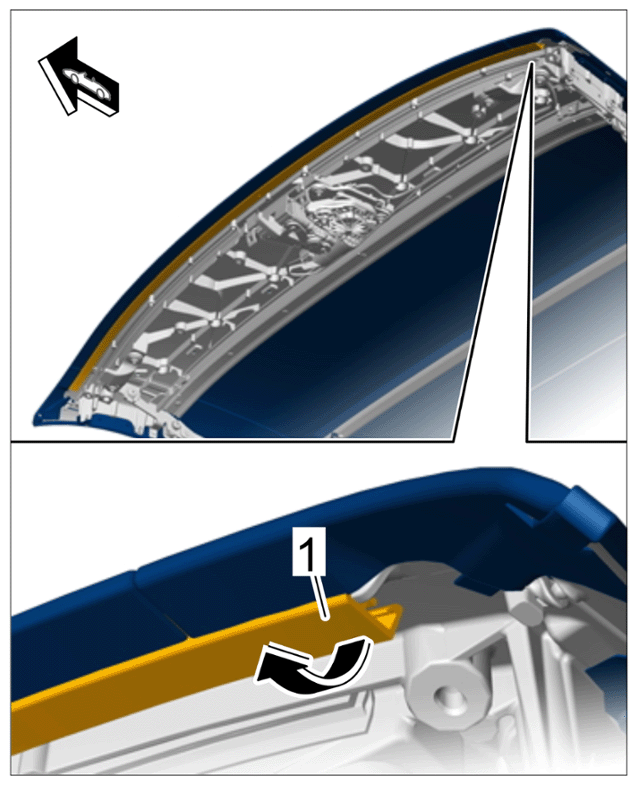

2. Loosen retaining strip on convertible top covering -1-  at the front edge. -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disengaging convertible top covering

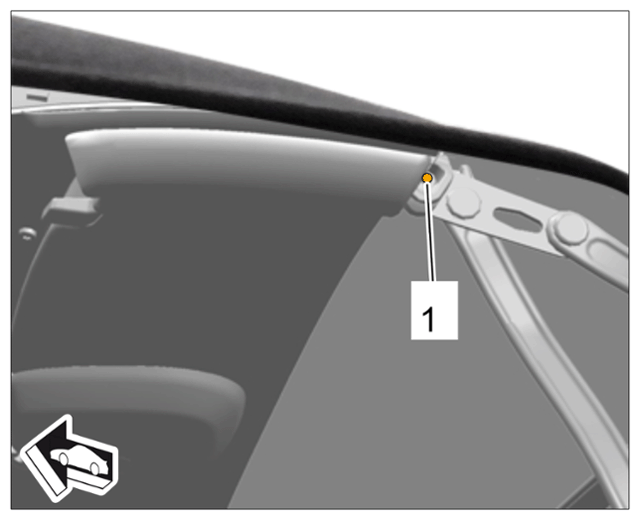

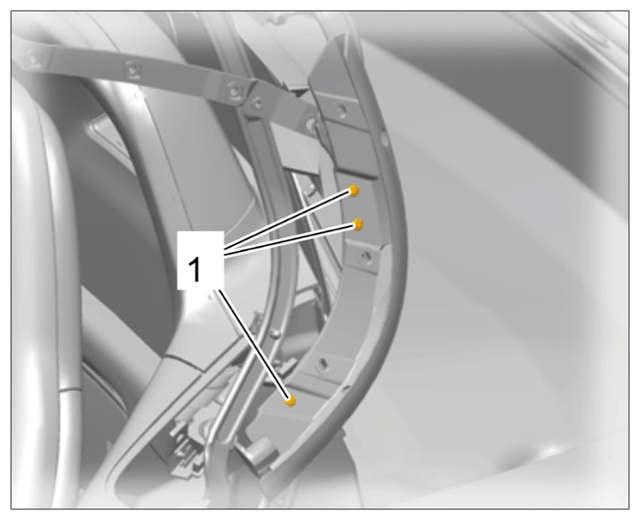

3. Drill out front side rivets -1-  for convertible top covering.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front side rivets

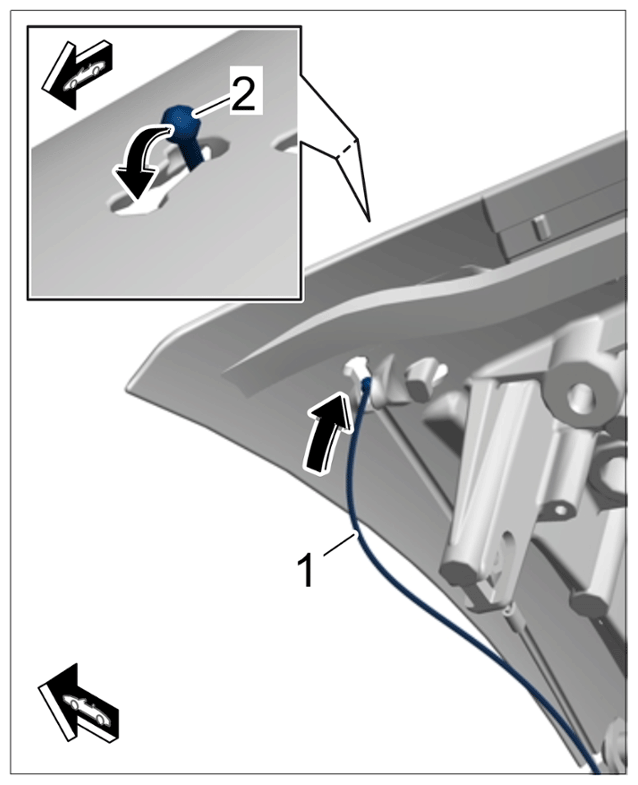

4. Disengage locking ball -2-  and guide tension rope -1-  out of the roof frame.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disengaging tension rope

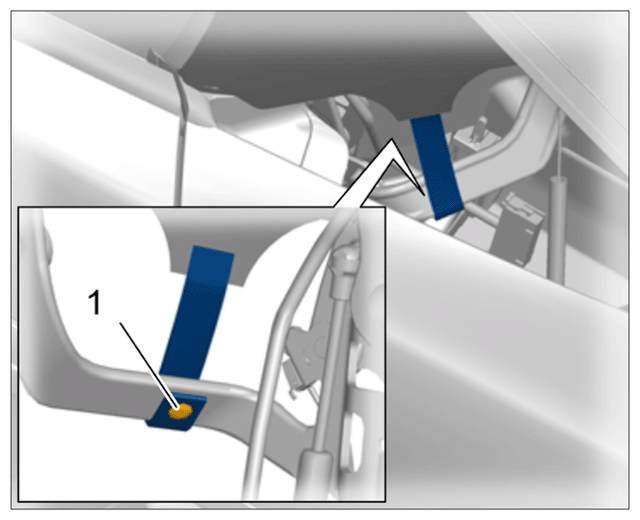

5. Drill out rivets for rear strap -1-  from the passenger compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rivets for rear strap

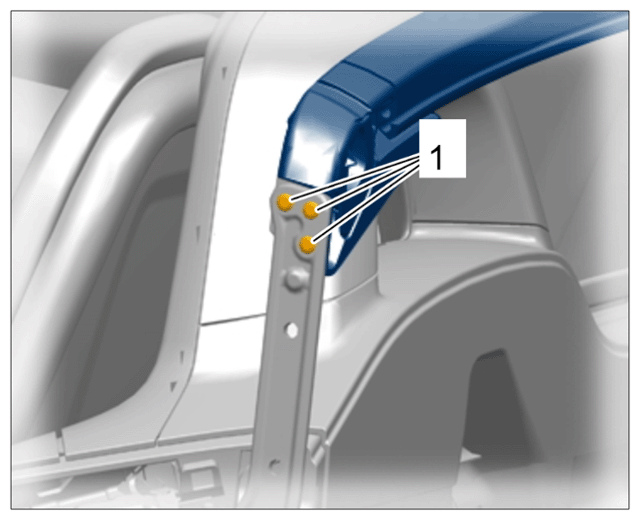

6. Drill out rivets -1-  for convertible top covering at the sides.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower side rivets

7. Fold up convertible top covering and drill out rivets -1-  for rear roof strut.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drilling out rivets for rear roof strut

8. Detach convertible top covering at the front roof strut.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening convertible top covering on the inside

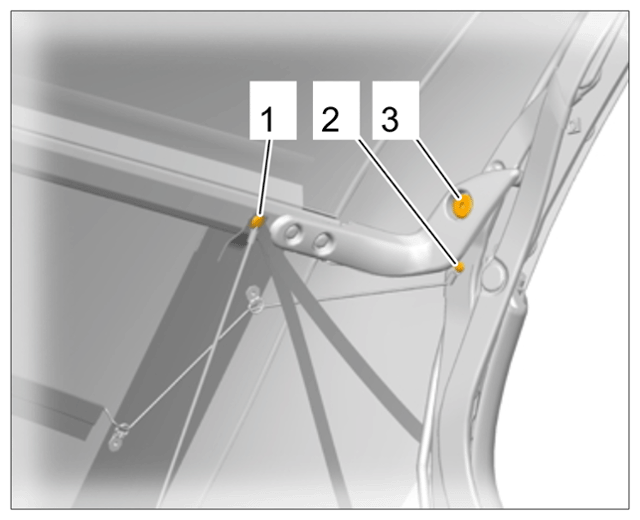

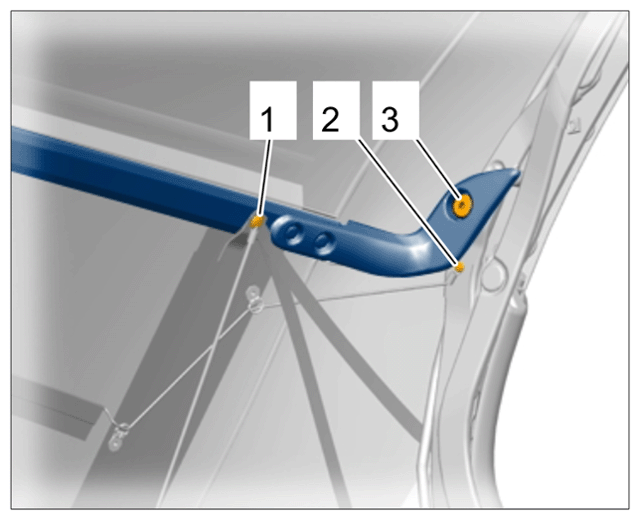

   1. 8.1 Drill out rivets on roof strut -1-  and convertible top frame -2-  .
9. Unscrew and remove fastening screw for front roof strut -3-  .

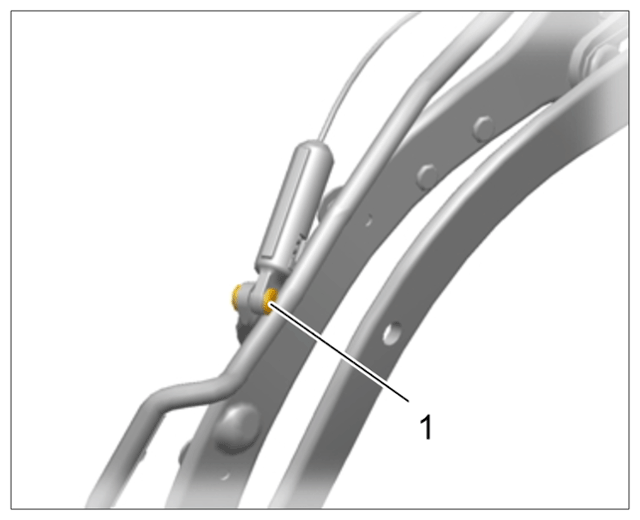

10. Fold convertible top covering forward and drill out rivets for tension rope -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drilling out rivets for tension rope

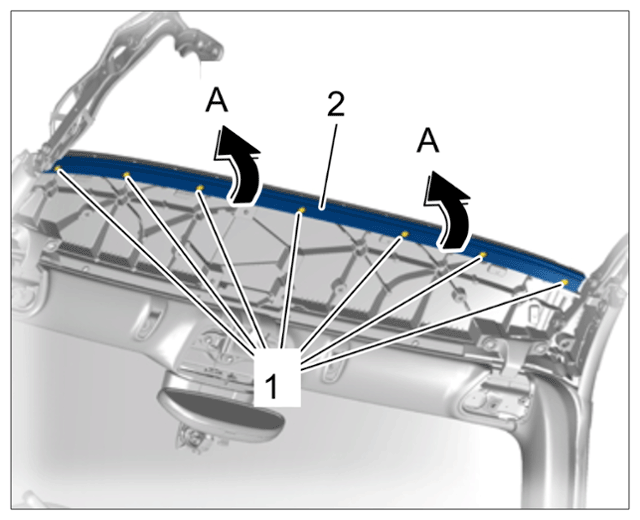

11. Drill out rivets for convertible top rooflining -1-  at the front side.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drilling out rivets for convertible top rooflining at the front

12. Drill out rivets on the rear roof frame -1-  , remove retaining strip -2-  and remove convertible top rooflining -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drilling out rivets on rear roof frame

13. Drill out rivets at the bottom of the roof frame -1-  and disengage convertible top covering -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drilling out rivets on bottom of roof frame

14. Remove convertible top covering including front and rear roof struts with the help of another person.
