Removing (Upper) Lateral Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

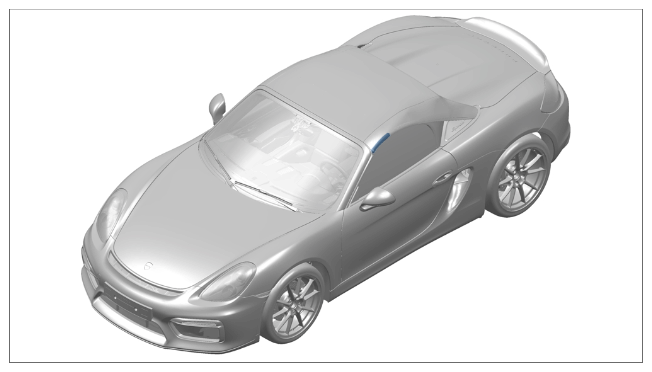

Installation position of rubber seal with upper lateral rail

1. Move convertible top into a partly opened position.
2. Remove seal.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

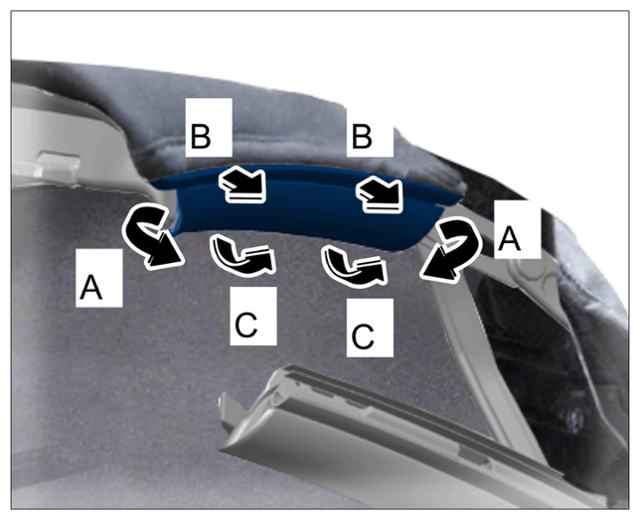

   Unhooking upper lateral seal

   1. 2.1 Unhook seal at the outsides in direction of arrow -A-  .
   2. 2.2 Pull off upper seal in direction of arrows -B-  .
   3. 2.3 Unhook lower seal in direction of arrows -C-  and remove seal.
