Installing (Upper) Lateral Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

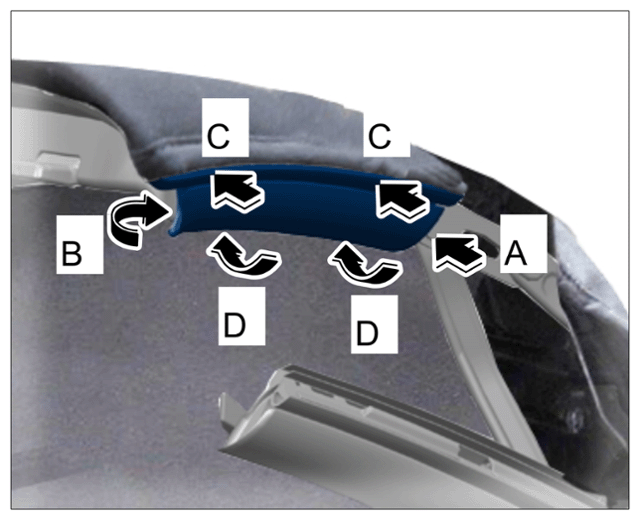

Hooking in upper lateral seal

1. 1.1 Push on lateral seal and hook it in direction -A-  .
2. 1.2 Pull seal over the rail in direction of arrow -B-  and engage it.
3. 1.3 Engage upper seal in direction of arrow -C-  .
4. 1.4 Pull lower seal over the rail in direction of arrow -D-  and engage it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

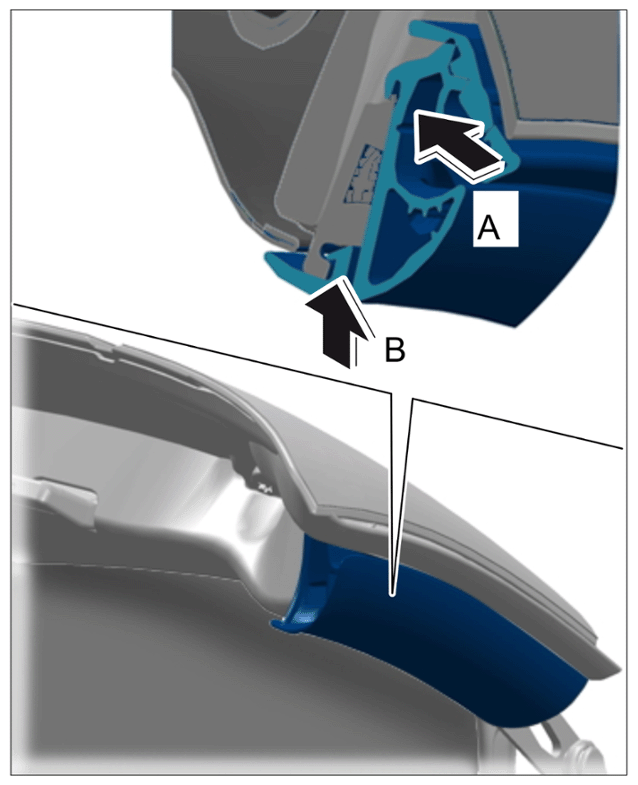

Engaging upper lateral seal
