Removing (Centre) Lateral Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

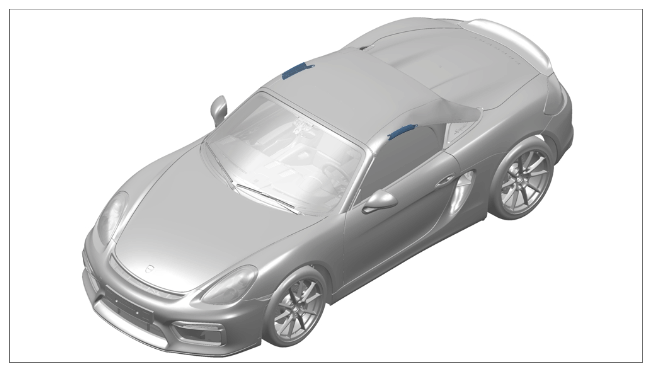

Installation position of lateral seal

1. Move convertible top into a partly opened position.
2. Remove seal from the guide.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

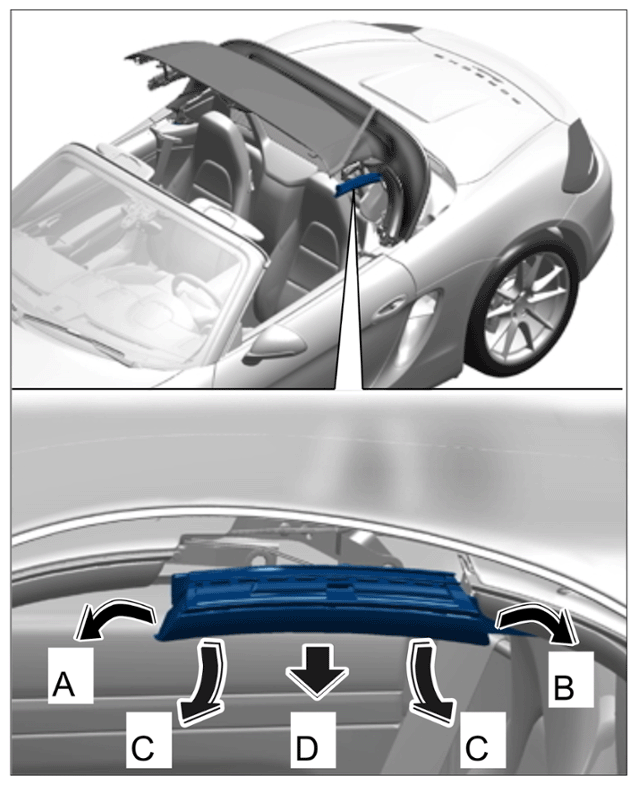

   Unhooking seal (shown on the Boxster)

   1. 2.1 Unhook seal at the front. Arrow -A-
   2. 2.2 Unhook seal at the rear. Arrow -B-
   3. 2.3 Unhook seal at the bottom. Arrow -C-
   4. 2.4 Remove seal. Arrow -D-
