Installing (Centre) Lateral Seal

  1. Install seal.

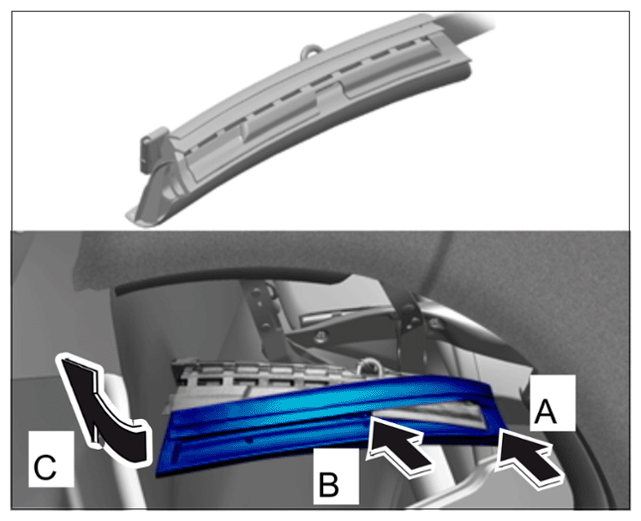

    1. 1.1 Fit rear seal on the rail. Arrow -A-
      G16223524Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Installing seal

    2. 1.2 Guide seal into the clip. Arrow -B-
    3. 1.3 Engage seal in the rail. Arrow -C-
    4. 1.4 Engage seal completely.

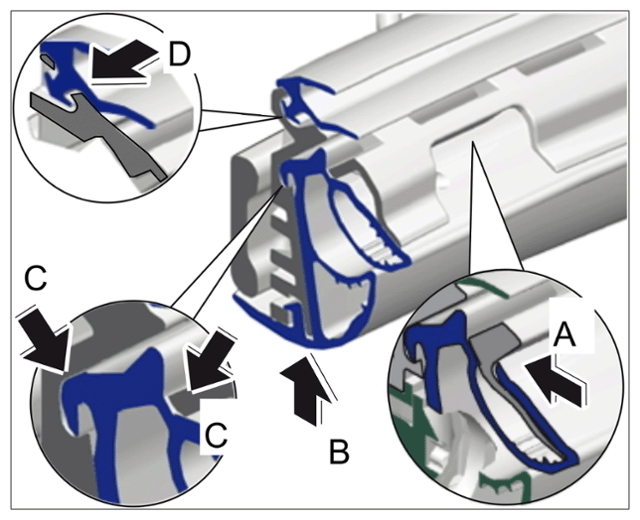

      G16223525Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Engaging seal

      1. 1.4.1 Engage seal completely at the clip (arrow) -A-
      2. 1.4.2 Engage seal completely at the lower edge. Arrow -B-
      3. 1.4.3 Engage seal completely in the centre duct. Arrow -C-
      4. 1.4.4 Engage seal completely in the upper duct. Arrow -D-
