Removing (Lower) Lateral Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

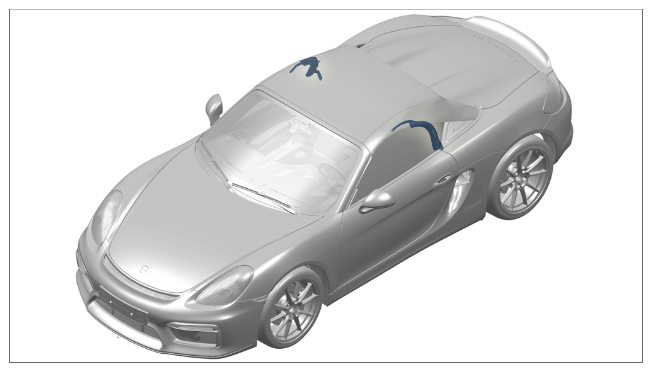

Installation position of lower lateral seal.

1. Unhook seal at the top.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

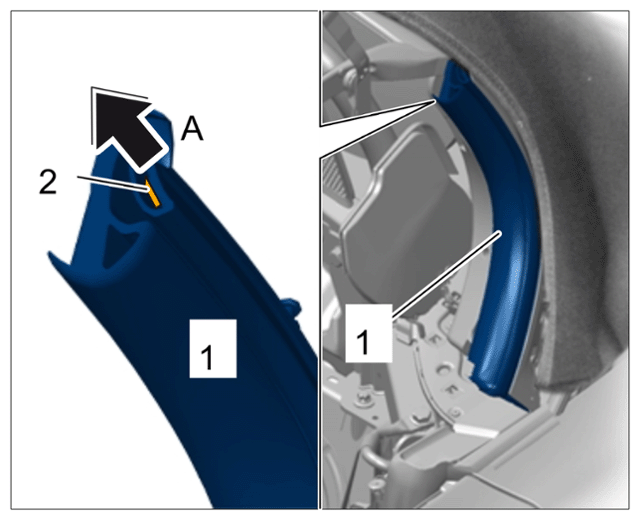

   Unhooking seal

   1. 1.1 Pull seal -1-  up. -arrow A-
   2. 1.2 Unhook seal -1-  at the clip -2-  .
2. Remove seal.

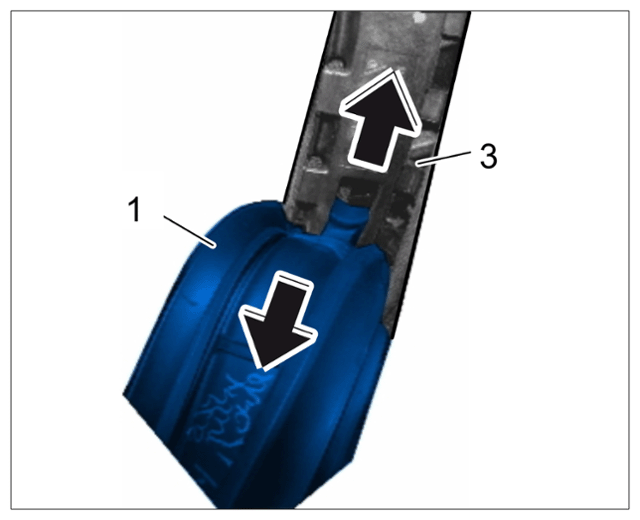

   1. 2.1 Pull seal -1-  off the retaining strip -3-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Pulling off seal

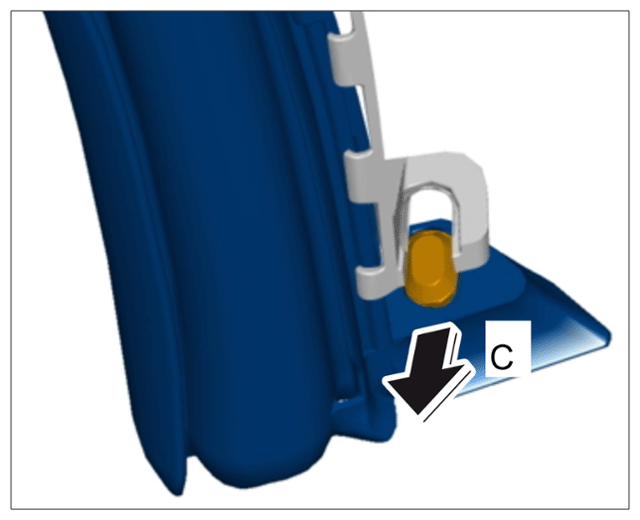

   2. 2.2 Unhook locking lug. -arrow C-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unhooking locking lug
