Installing (Lower) Lateral Seal

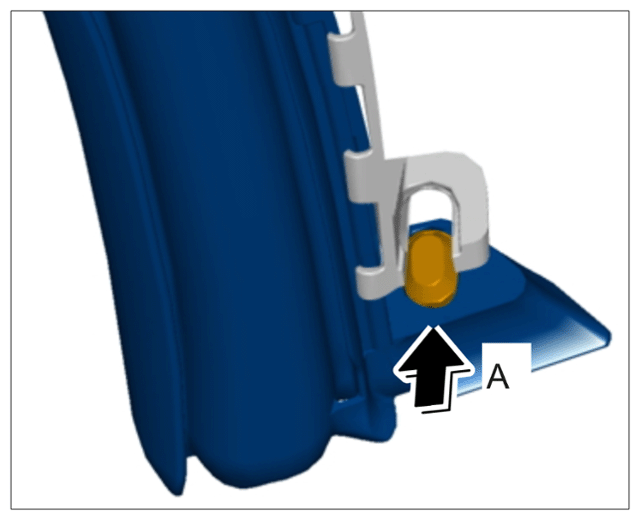

Hook in locking lug. -arrow A-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engaging seal at the bottom
Hook in seal at the top.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

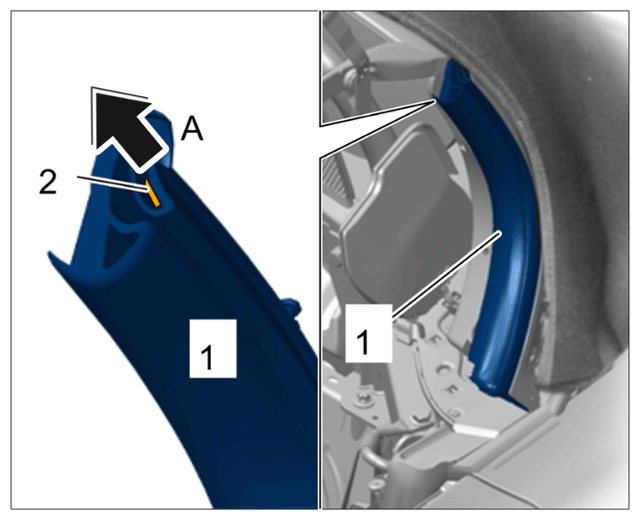

Unhooking seal
1. 2.1 Pull seal -1- up. -arrow A-
2. 2.2 Hook in seal -1- at the clip -2- .

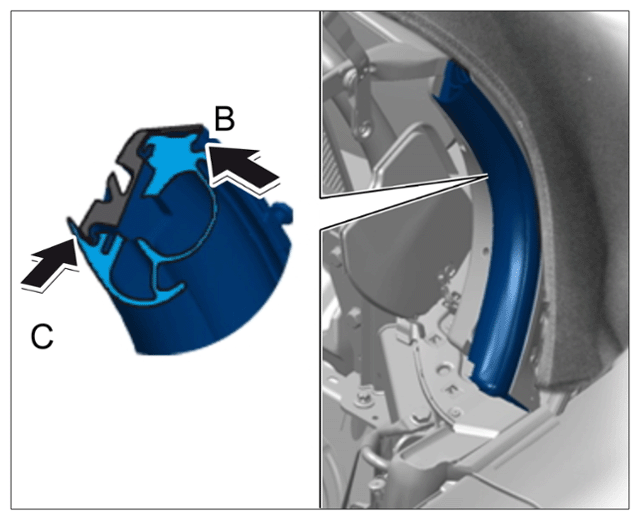

Engage seal completely in the retaining strip. Arrow -B- and -C

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engaging seal
