Adjusting Convertible Top Lock

Information

If the installation position was not marked during removal, adjust convertible top lock.

1. Position convertible top lock.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

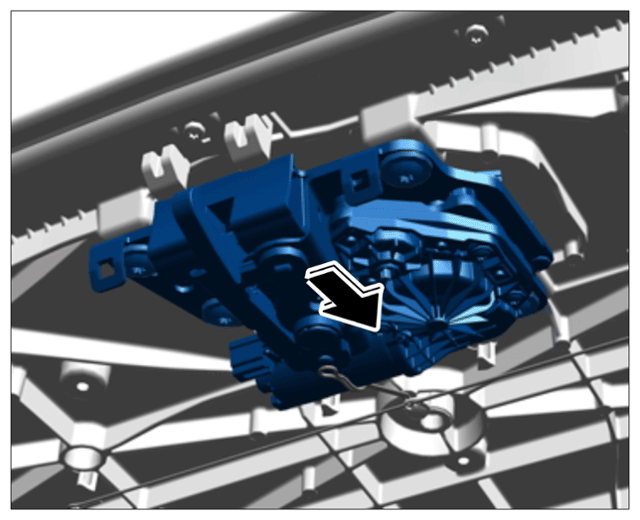

   Positioning convertible top lock

   1. 1.1 Fit convertible top lock on the roof frame.
   2. 1.2 Screw in new screws.
   3. 1.3 Slide the convertible top lock back fully -arrow-  .
2. Tighten screws -4-  to the specified initial tightening torque. > Initial tightening 6 N.m (4.5 ft lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

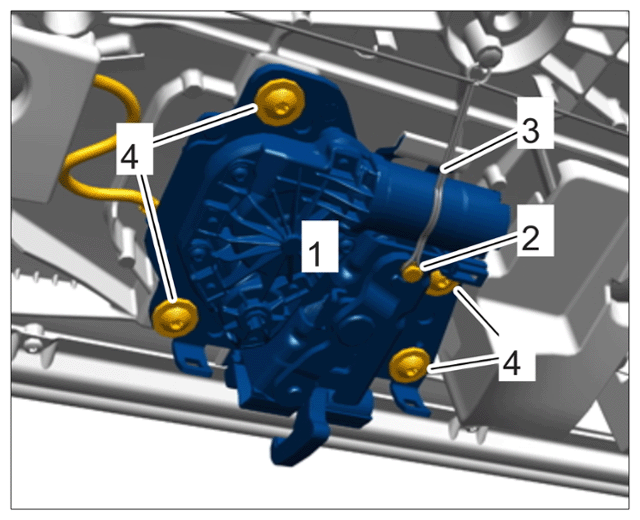

   Tightening screws (shown on the 991)

3. Close the convertible top fully.
4. Open the convertible top.
5. Mark the position of the lock -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

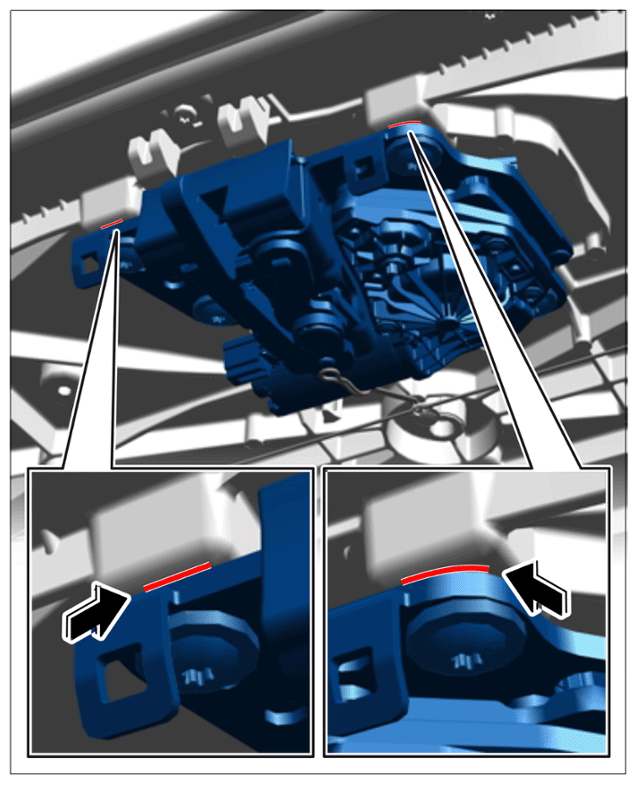

   Marking installation position without preload

6. Loosen screws.
7. Move convertible top lock by -dimension X-  away from direction of travel. > Adjustment value 1.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

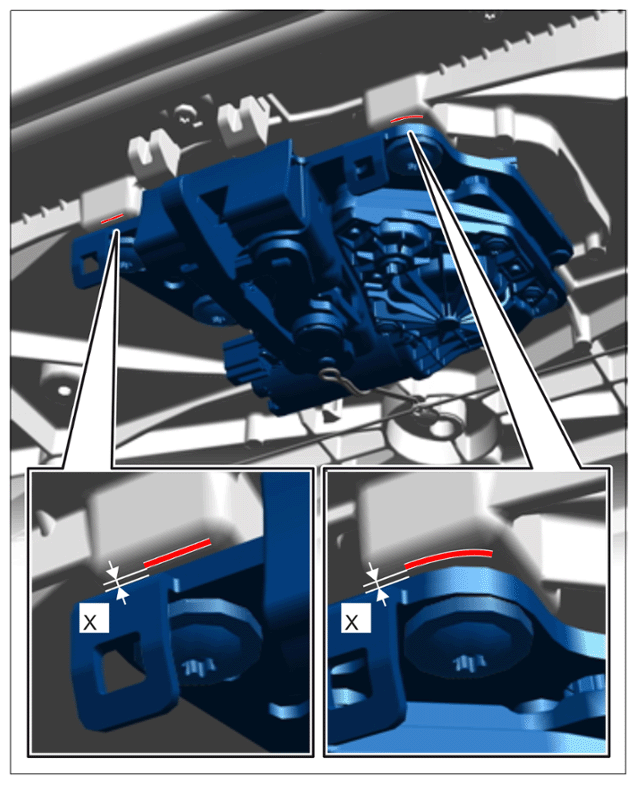

   Setting preload on convertible top lock

8. Tighten the screws. > Tightening torque 36 N.m (27 ft lb.)
9. Carry out a function test.
