Removing Water Drip Pan

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

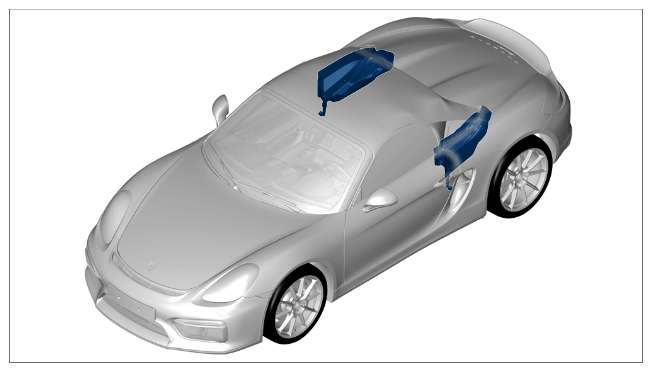

Installation position of water drip pan

1. Guide water drip pan -1-  out of the guide pin -2-  and remove it by pulling it up.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

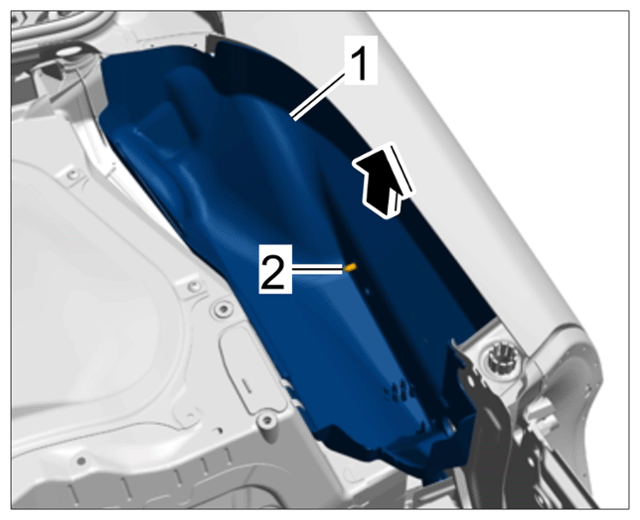

   Removing water drip pan
