Installing Water Drip Pan

  1. Installation is performed in reverse order to removal.
  2. Slide water drip pan -1-  in direction of -arrow-  into the flange of the drain hose -2-  .

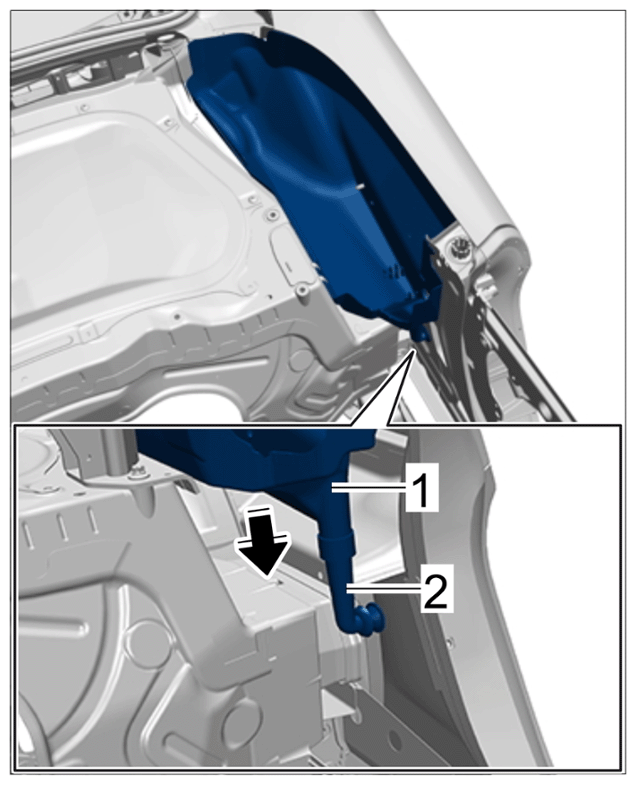

    G16223511Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing water drip pan
