Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Type	Basic val...	Toleranc...
Fastening screws for inner roof frame	Tightening torque	9 N.m (6.5 ft lb.)	+/- 1 N.m (0.5 ft lb.)

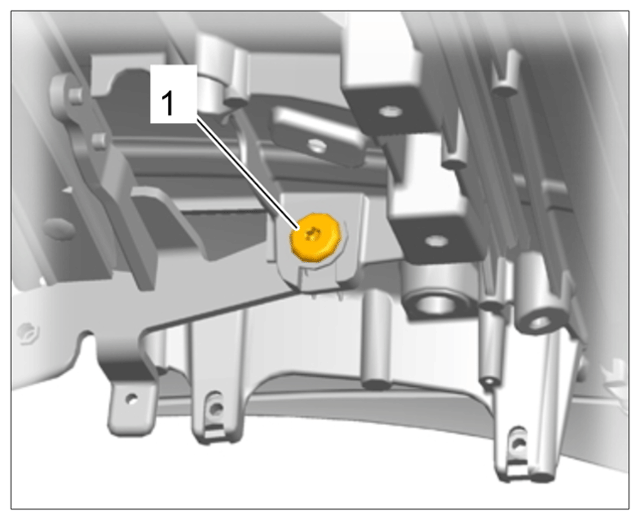

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening inner roof frame
Fastening screws for rear roof frame	Tightening torque	9 N.m (6.5 ft lb.)	+/- 1 N.m (0.5 ft lb.)

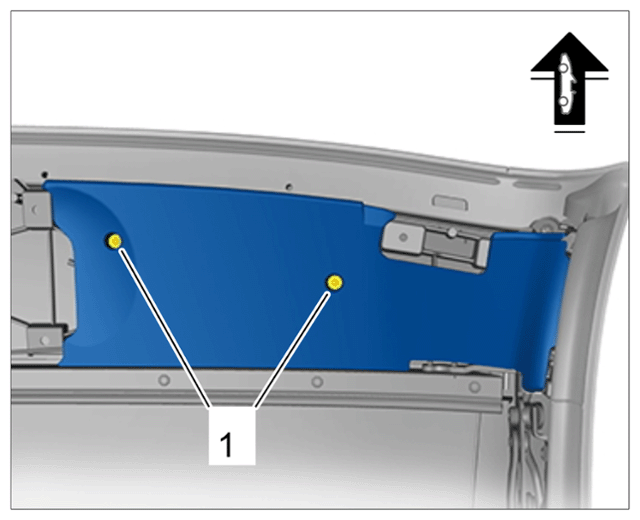

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front roof frame
Fastening screws for filler piece	Tightening torque	9 N.m (6.5 ft lb.)

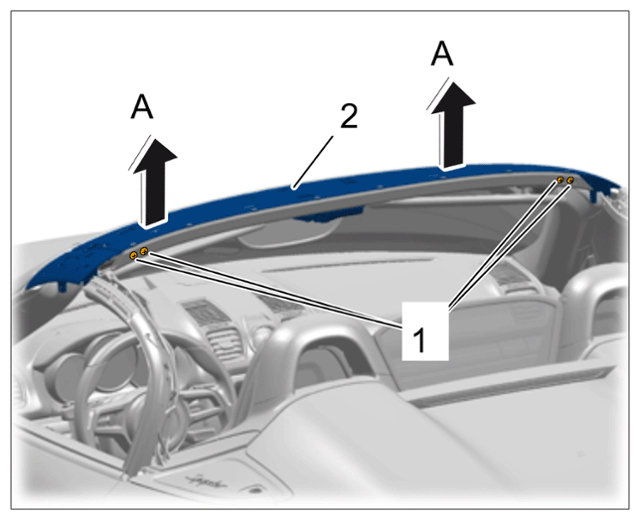

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing filler pieces
