Removing Rear Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

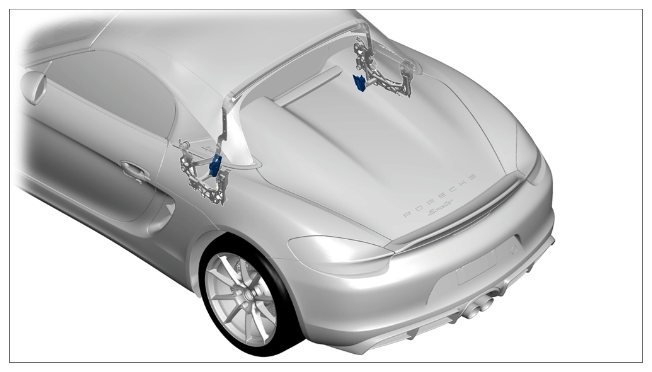

Installation position of rear mount

1. Release locking lug in direction of arrow -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

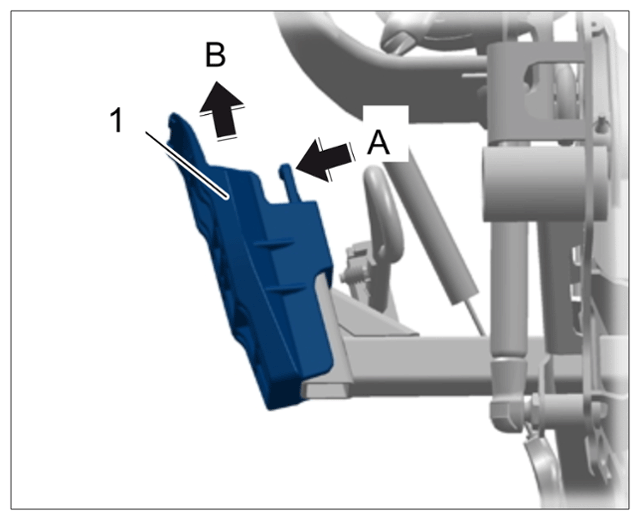

   Rear mount

2. Pull mount -1-  up in direction of arrow -B-  off the convertible top linkage.
