Removing Front Convertible Top ROOFLINING

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

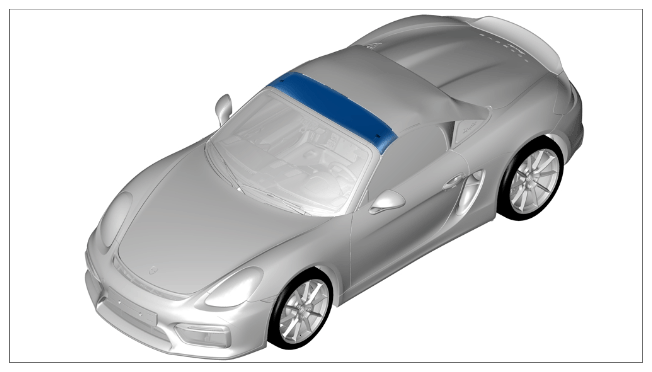

Installation position of convertible top rooflining

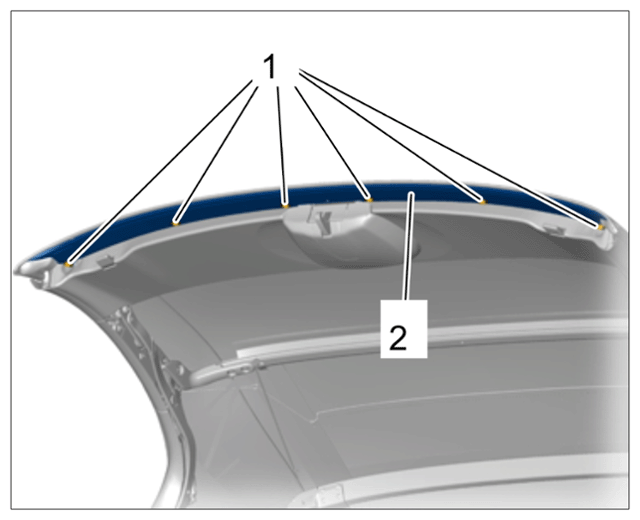

1. Unscrew fastening screws -1-  and remove retaining strip -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

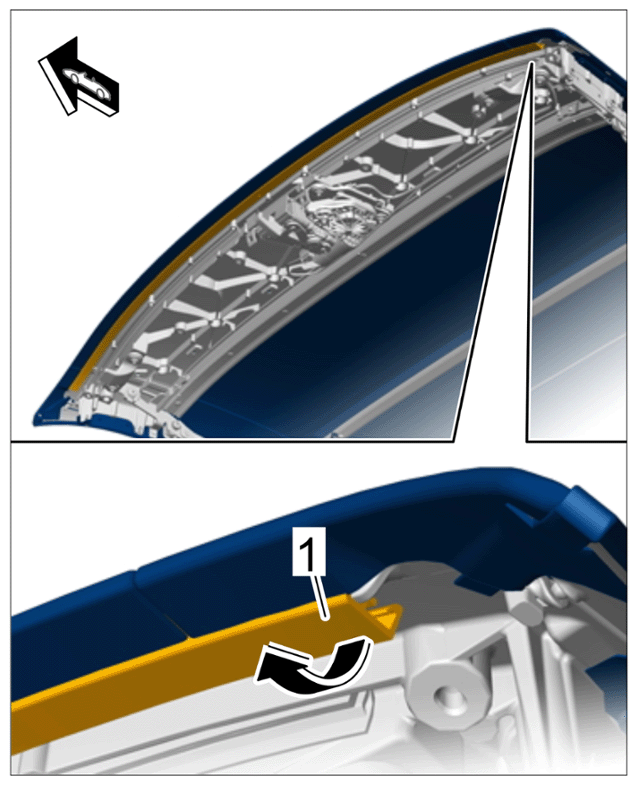

   Removing retaining strip for convertible top covering at the front

2. Loosen retaining strip on convertible top covering -1-  at the front edge. -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disengaging convertible top covering

3. Drill out front side rivets -1-  for convertible top covering.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

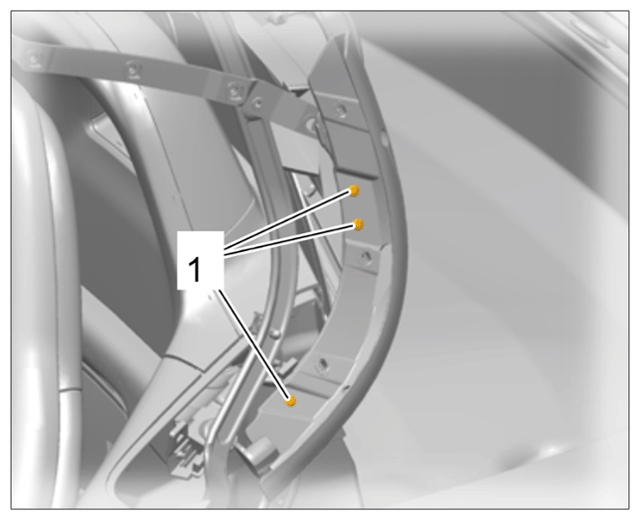

   Front side rivets

4. Disengage locking ball -2-  on the tension rope -1-  from the roof frame.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

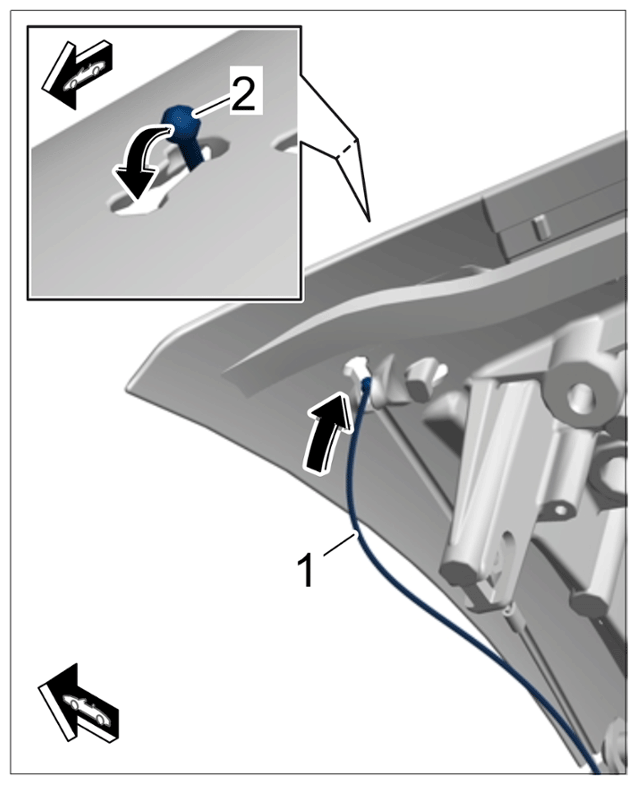

   Disengaging tension rope

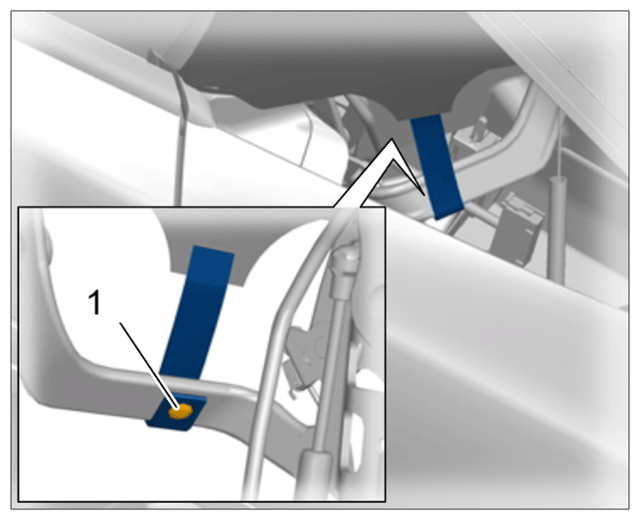

5. Drill out rivets for rear strap -1-  from the passenger compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

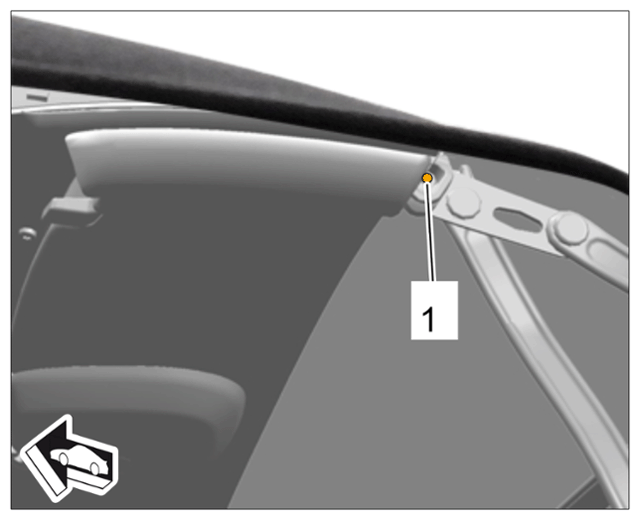

   Rivets for rear strap

6. Drill out rivets -1-  for convertible top covering at the sides.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

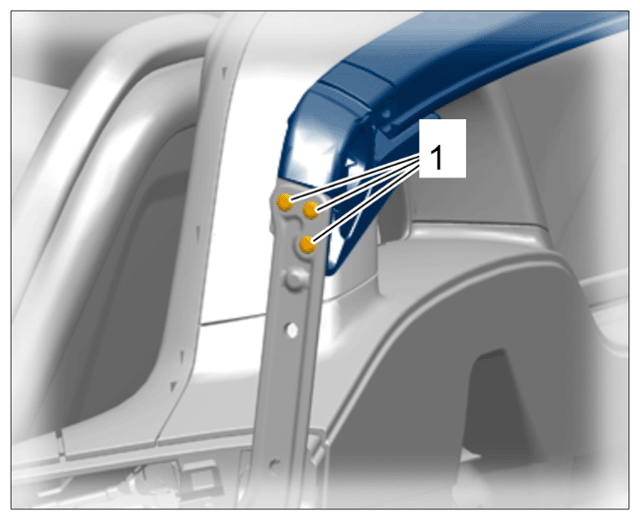

   Lower side rivets

7. Fold up convertible top covering and drill out rivets -1-  for rear roof strut.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drilling out rivets for rear roof strut

8. Drill out rivets on roof strut -1-  and convertible top frame -2-  from the inside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

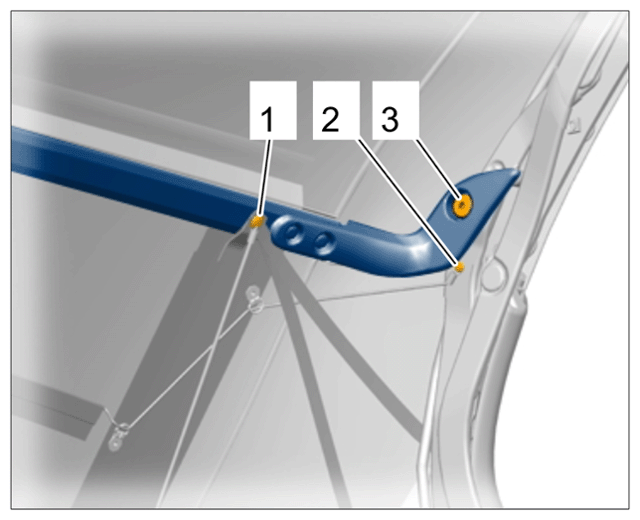

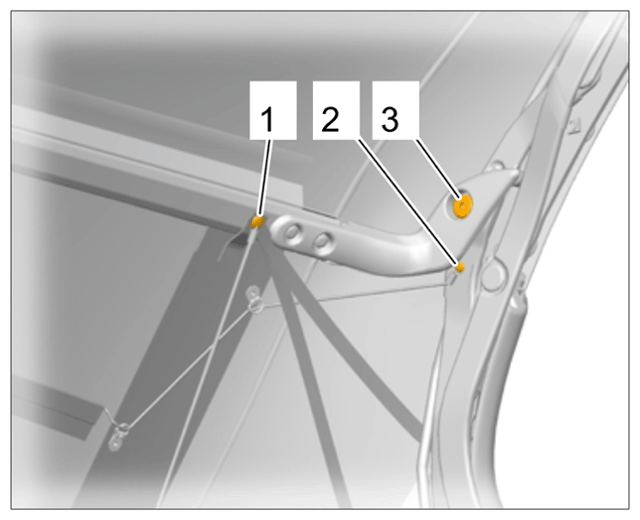

   Loosening convertible top covering on the inside

   1. 8.1 Unscrew and remove fastening screw -3-  for front roof strut.

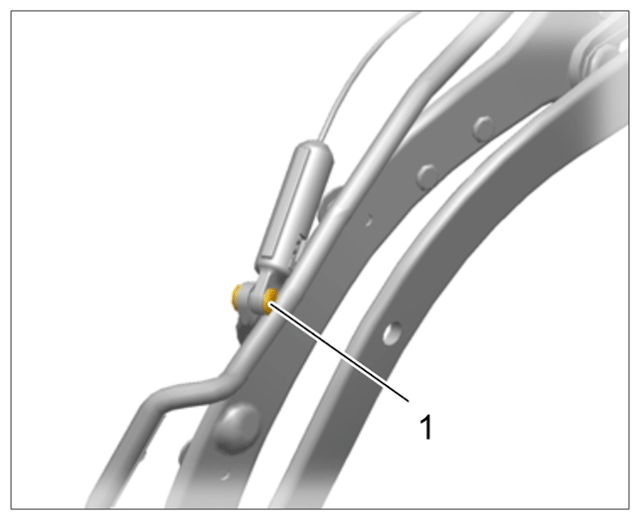

9. Fold convertible top covering forward and drill out rivets for tension rope -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drilling out rivets for tension rope

10. Drill out rivets for convertible top rooflining -1-  at the front side.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

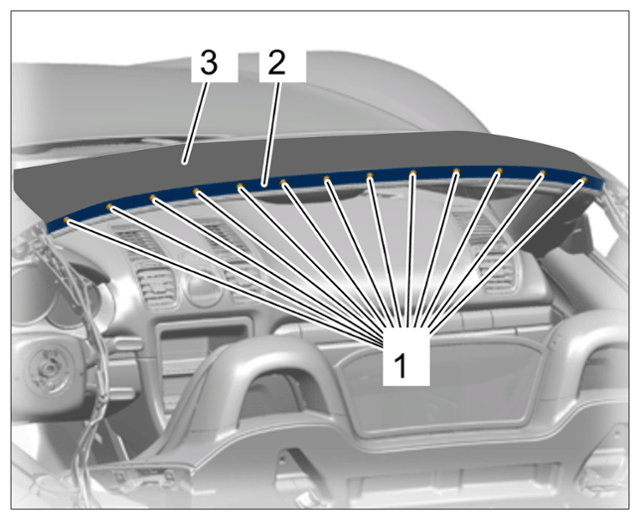

    Drilling out rivets for convertible top rooflining at the front

11. Drill out rivets on the rear roof frame -1-  , remove retaining strip -2-  and remove convertible top rooflining -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drilling out rivets on rear roof frame
