Removing And Installing Front Lock

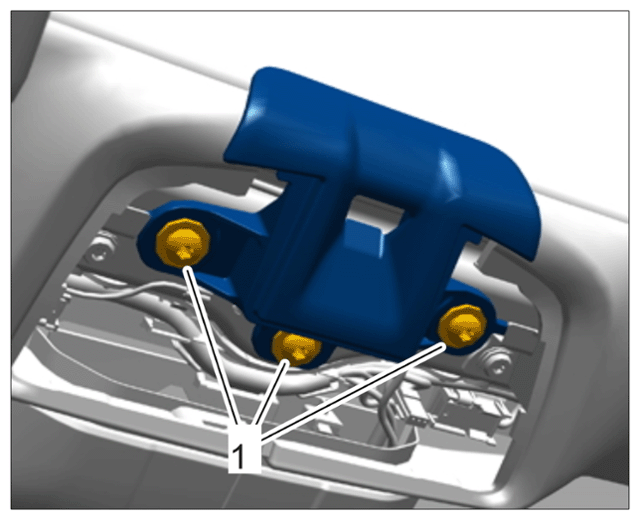

  1. Unscrew screws -1-  and remove lock by pulling it down.
    G16223476Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing lock

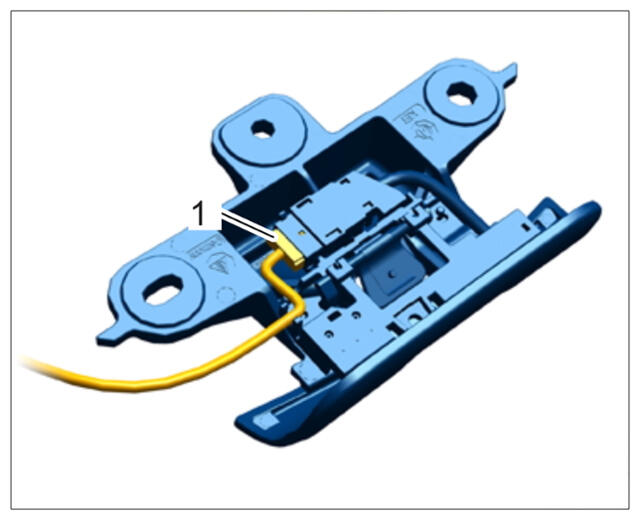

  2. Release and unplug electric plug connection -1-  .
    G16223477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

  3. Remove front lock.
  4. Installation is performed in reverse order.
  5. Screw in and tighten screws. > Tightening torque 9.7 N.m (7.5 ft lb.)
