Remove Headrest Covering

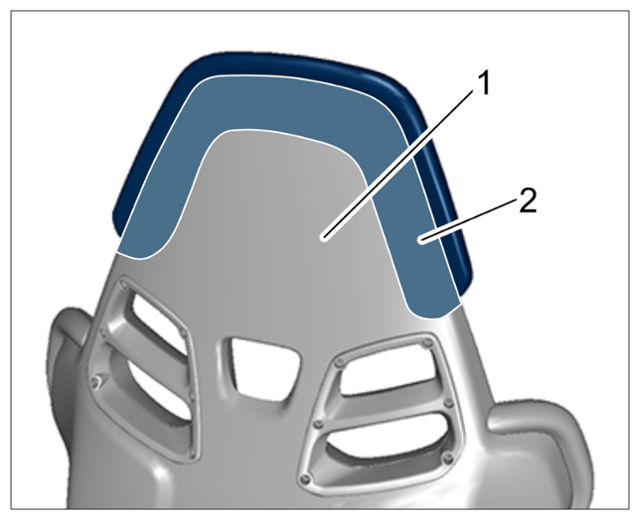

  1. Mask the seat backrest -1-  in the marked area -2-  with adhesive tape (2-3 layers).
    G16225156Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Adhesive tape

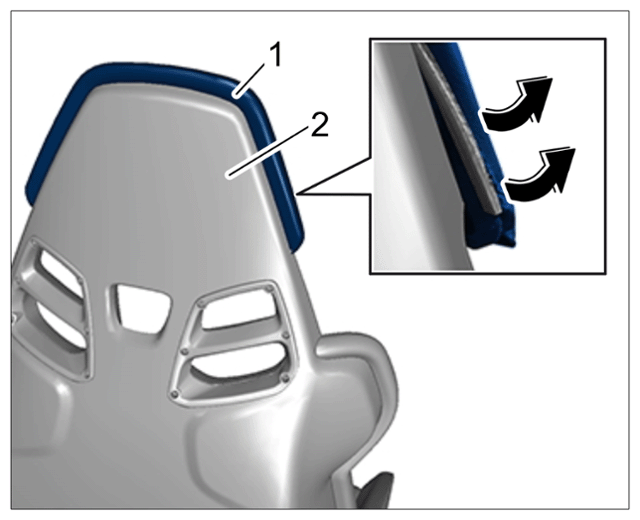

  2. Fold over the cover -1-  , starting at the bottom and carefully pull it off of the seat backrest -2-  . -Arrows-
    G16225157Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headrest covering

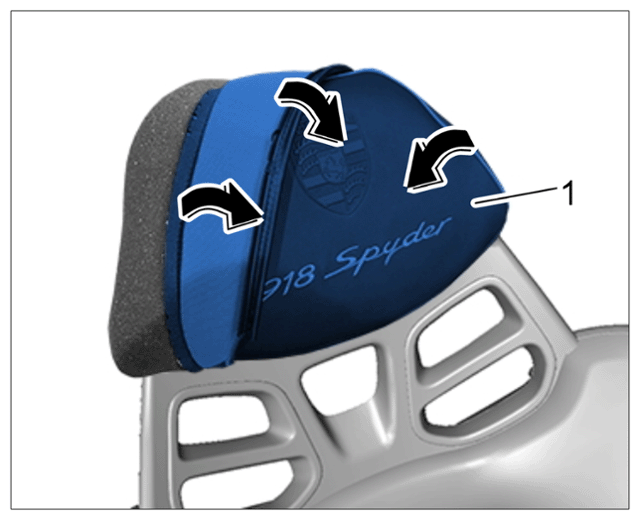

  3. Fold covering -1-  over the cushion -Arrows-  and pull it off.
    G16225158Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headrest covering

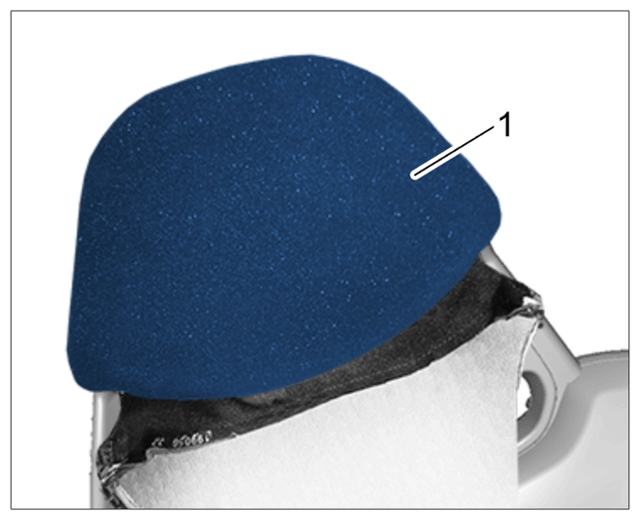

  4. Remove padding -1-  from the seat shell.
    G16225159Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cushioning

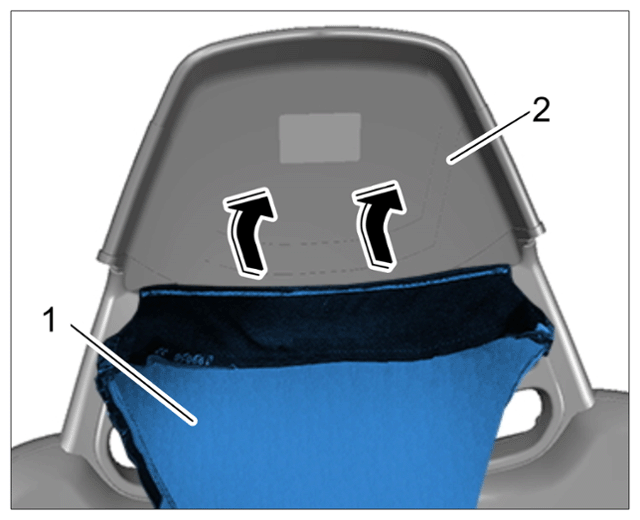

  5. Disengage cover -1-  from the seat shell -2-  (-Arrows-  ) and remove it.
G16225160Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headrest covering
