Install Headrest Covering

Information

Always replace fastening clamps.

Information

Make sure not to scratch any visible areas of the seat backrest when removing and installing the fastening clamps.

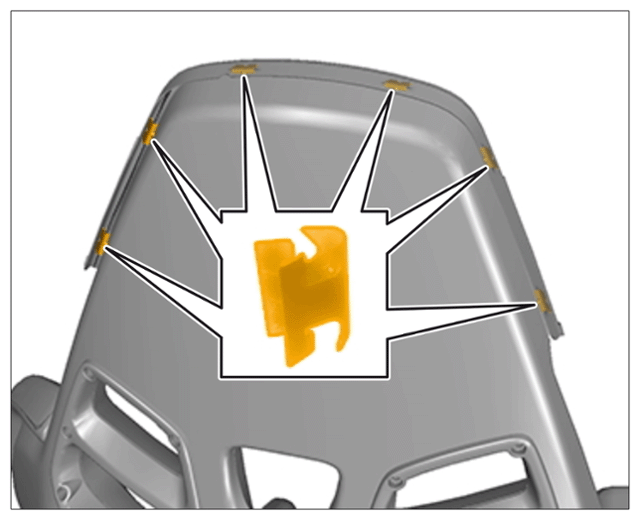

1. Replace fastening clamps for headrest covering.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening clamps

2. Fit the cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Headrest covering

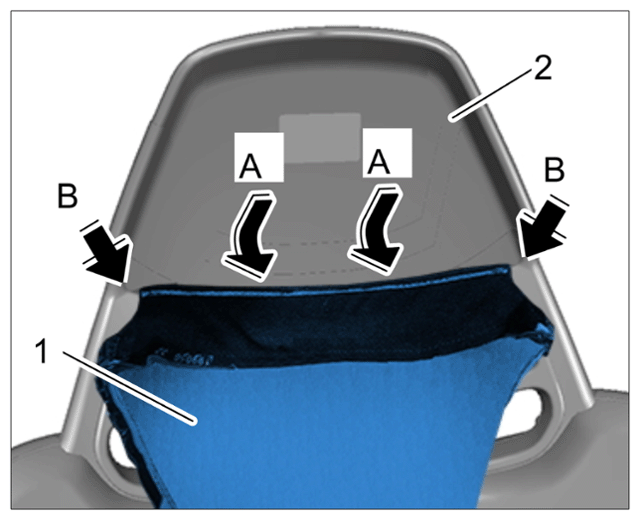

   1. 2.1  Engage cover -1-  in the seat backrest -2-  (-Arrow A-  ).

   Make sure that the gap is the same at the sides. -Arrow B-

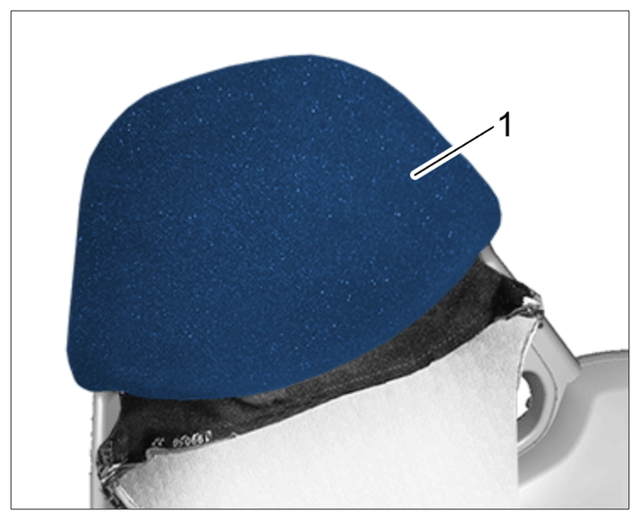

3. Position padding -1-  in the seat shell.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Padding

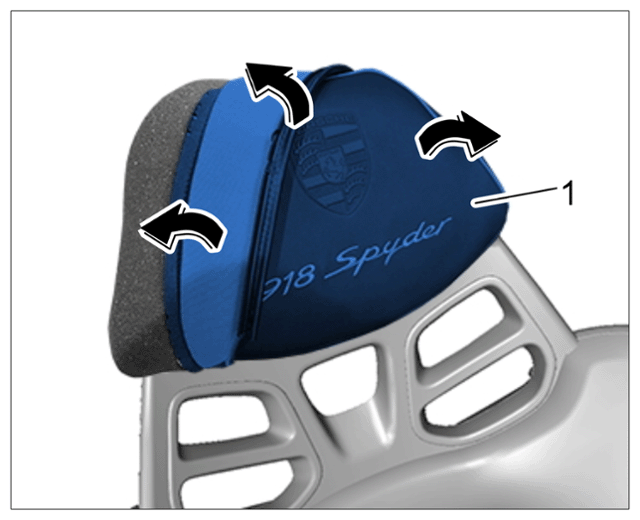

4. Fold covering -1-  over the seat shell. -Arrows-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Headrest covering

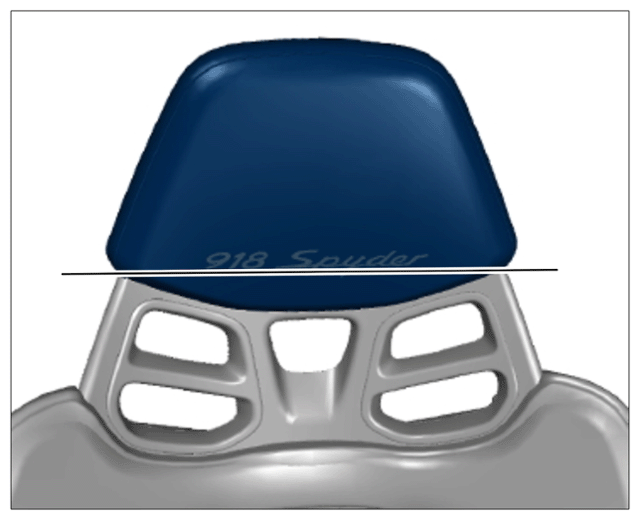

5. Align covering.

   The logo must be aligned parallel to the openings on the belt strap guide.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Headrest covering

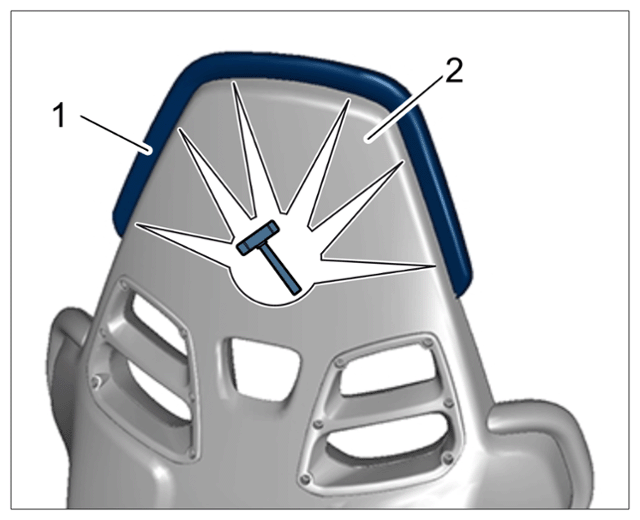

6. Press joint on cover -1-  into the seat shell -2-  and secure it by tapping gently (with a plastic hammer).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Headrest covering

7. Remove adhesive tape.
