Installing Cover For Front Centre Backrest (Sports Bucket Seat)

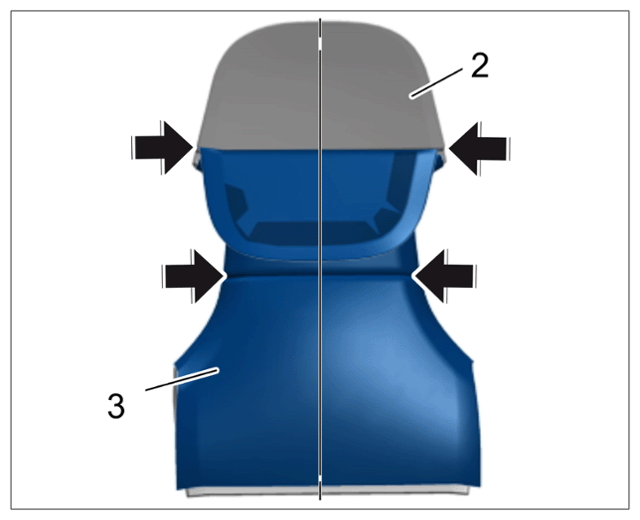

Centre the cover -3- on the front of the padding -2- (-Arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for front centre backrest position (sports bucket seat)
Align hook-and-loop strip on the cover -1- with the hook-and-loop fastener on the padding -2- and press it on firmly -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for front centre backrest (sports bucket seat)
Secure cover.

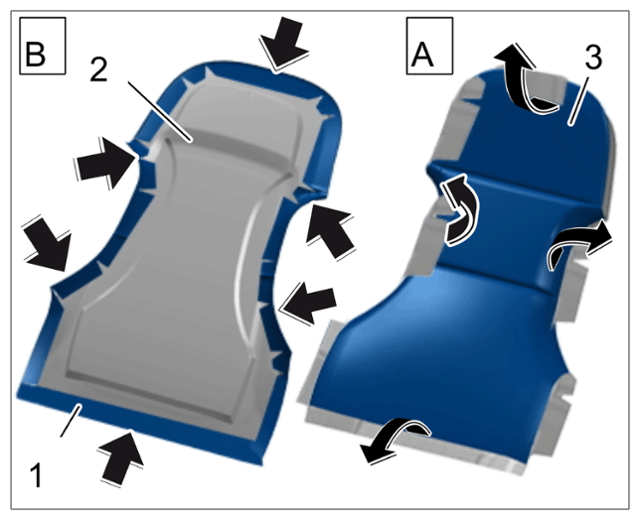

1. 3.1 Fold cover -3- over all the way around (-Arrows- ) and align it -A- .
2. 3.2 Align hook-and-loop strip -1- on the cover with the hook-and-loop fastener on the padding -2- (-Arrows- ) and secure it -B- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hook-and-loop fastener for cover for front centre backrest (sports bucket seat)
Press on hook-and-loop fasteners on the back of the padding.
