Removing Cover For Front Centre Backrest

  1. Detach cover.

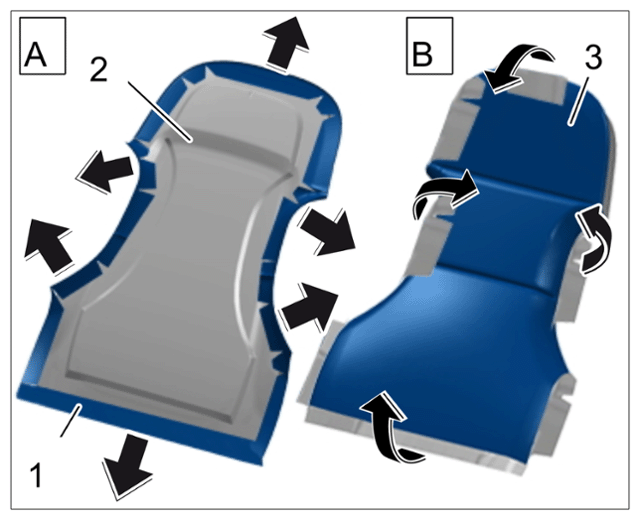

    G16225144Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover

    1. 1.1  Release Velcro fasteners -1-  on the back of the padding -2-  all the way around. -Figure A-
    2. 1.2  Fold cover -3-  over all the way around. -Figure B-
  2. Carefully detach Velcro strip -1-  on the cover -3-  from the Velcro fastener on the front of the padding -2-  . -Arrows-

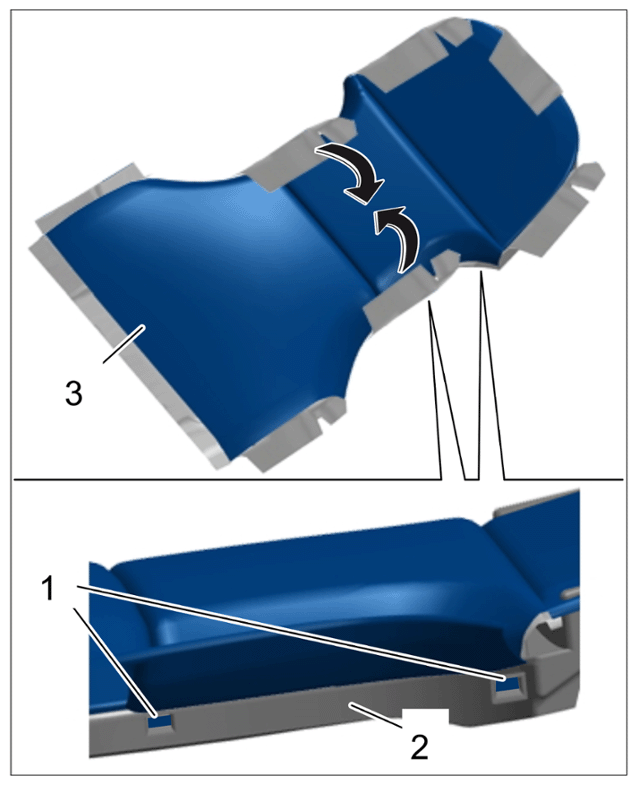

    G16225145Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover for front centre backrest

  3. Remove cover for front centre backrest.
