Installing Cover For Front Centre Backrest

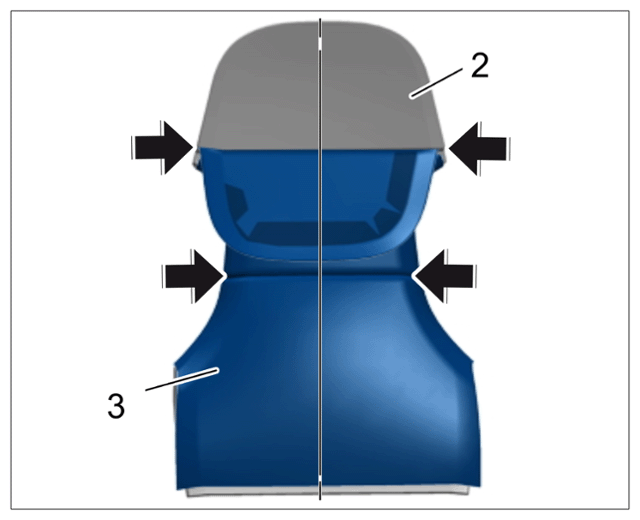

Centre the cover -3- on the front of the padding -2-Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for front centre backrest

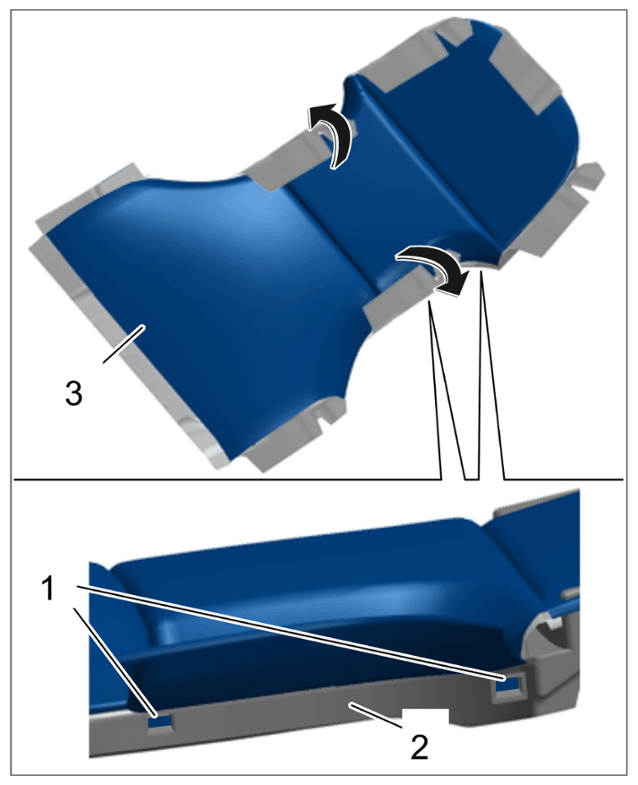

Align Velcro strip on the cover -1- with the Velcro fastener on the padding -2- and press it on firmly -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for front centre backrest
Secure cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for front centre backrest

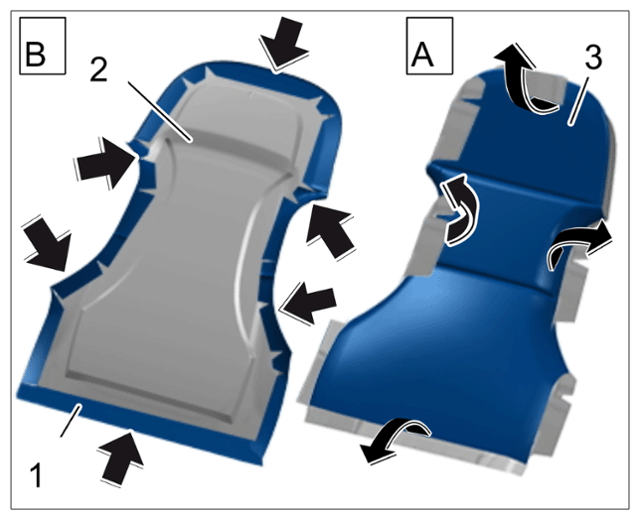

1. 3.1 Fold covering -3- over all the way around (-Arrows- ) and align it -Figure A- .
2. 3.2 Align Velcro strip -1- on the covering with the Velcro fastener on the padding -2- (-Arrows- ) and secure it -Figure B- .
Press on Velcro fasteners on the back of the padding.
