Removing And Installing Cover For Front Middle Backrest (Air-Conditioned Comfort Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

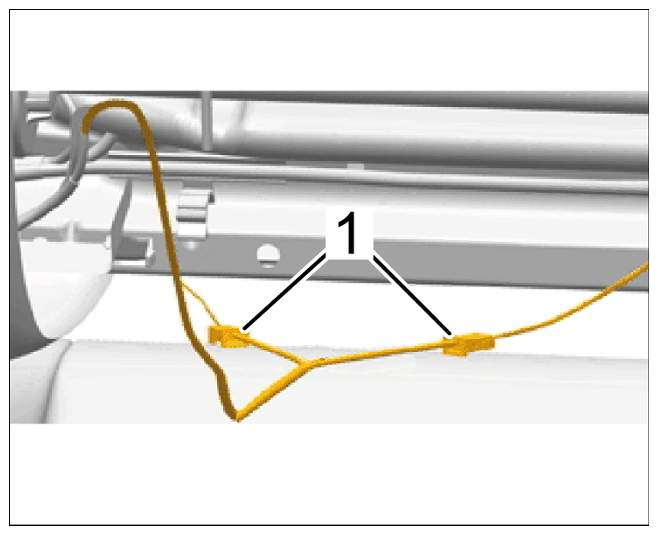

Disconnecting electric plug connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

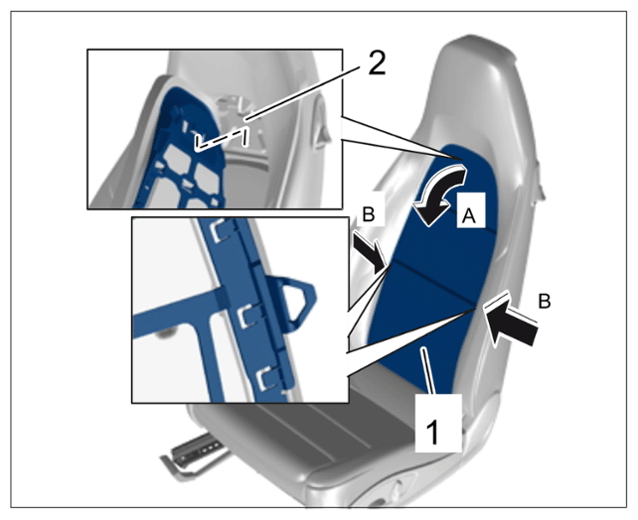

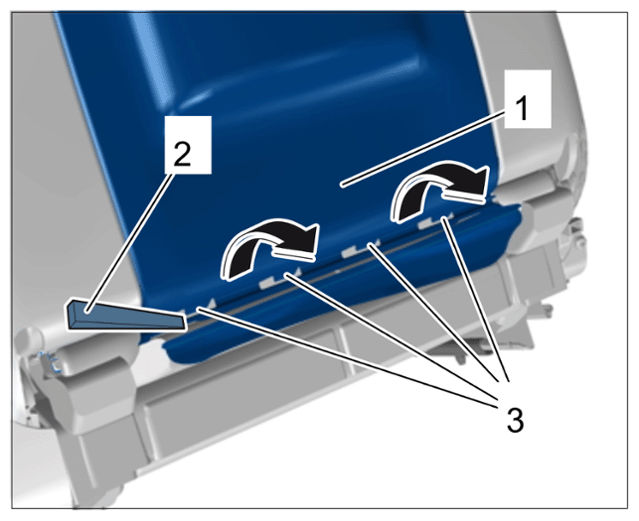

Detaching cover for front middle backrest at the rear

Information

Carefully detach cover for front middle backrest. Do not bend the retaining hook.

1. 3.1  Press cover for front middle backrest -1-  together slightly at the sides -arrows B-  and use a plastic wedge to detach it from the catches -inset below-  .
2. 3.2  Insert your hand in behind the top of the cover for the front middle backrest -1-  and detach it by pulling it up out of the backrest frame -2-  (-arrow A-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

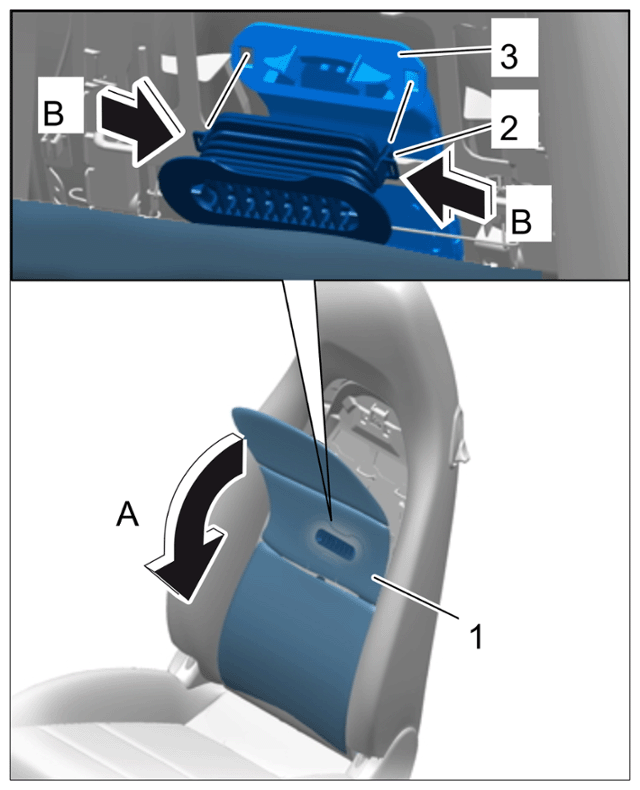

Detaching cover for front middle backrest

1. 4.1  Fold cover for front middle backrest -1-  forward slightly in the upper area -arrow A-  .
2. 4.2  Press in locking lugs on intake plenum -2-  (-arrows B-  ).
3. 4.3  Loosen intake plenum -2-  from the air duct -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing intake plenum

Information

Mark assignment of electric plug connections before disconnecting them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

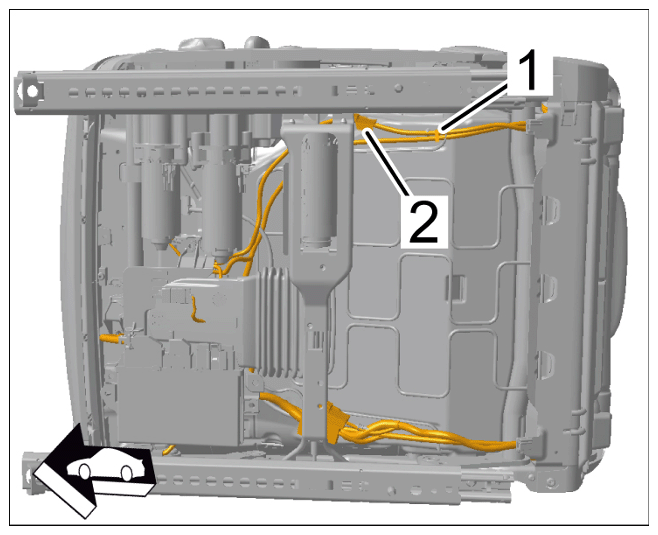

Disconnect the electric plug connections

Information

The help of another person is required to secure the backrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

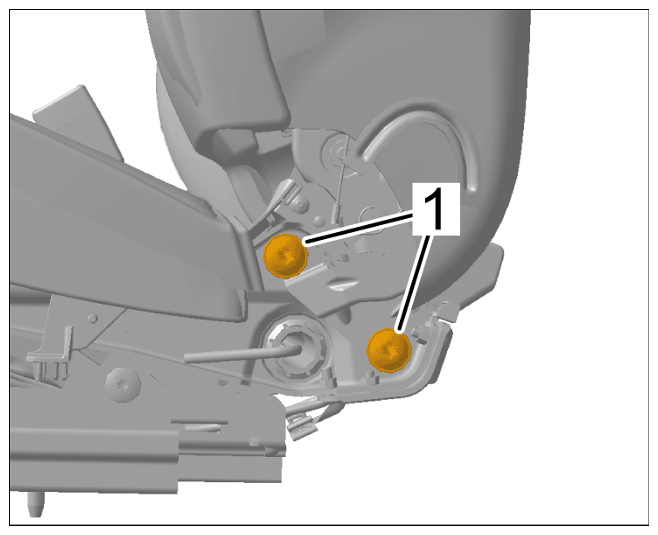

Unscrewing screws for seat backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

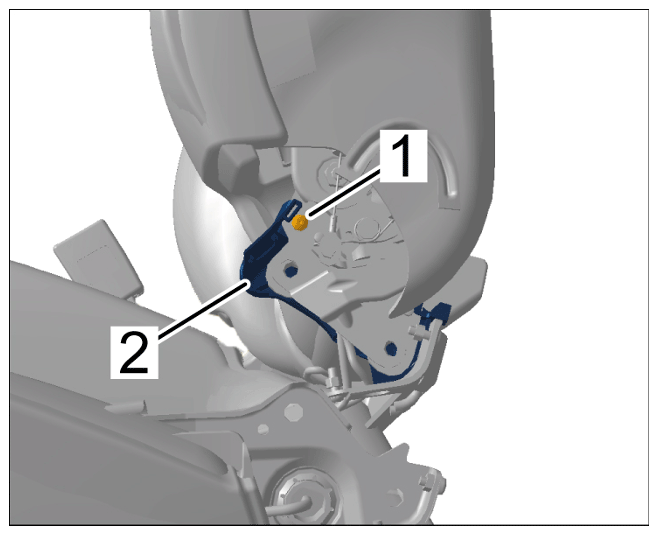

Removing inner backrest cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

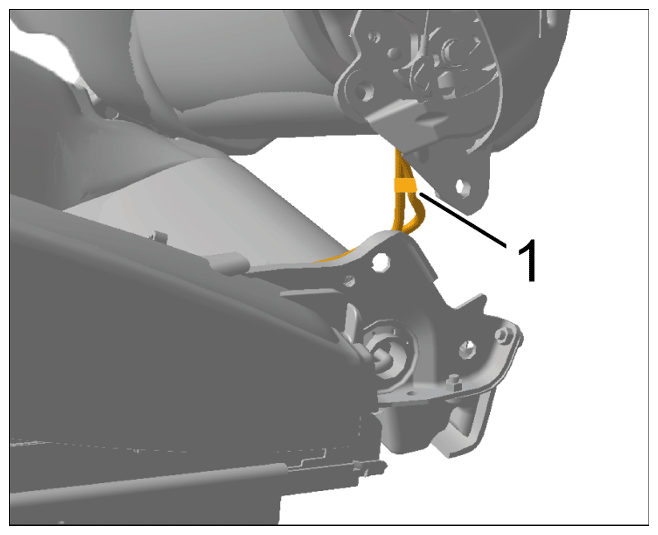

Removing anti-chafing element
