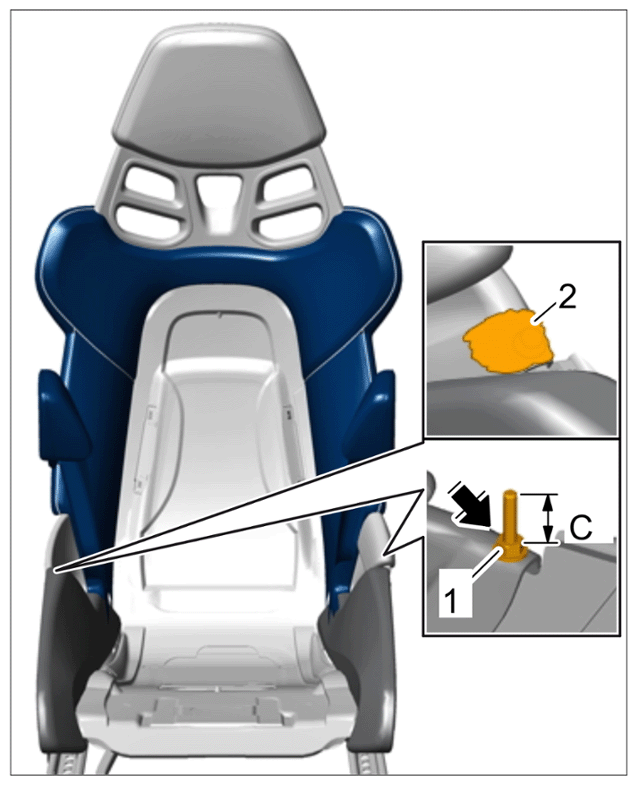

| Bowden cable for belt feed-through element |
Dimension C |
Length |
25 mm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Securing bowden cable |

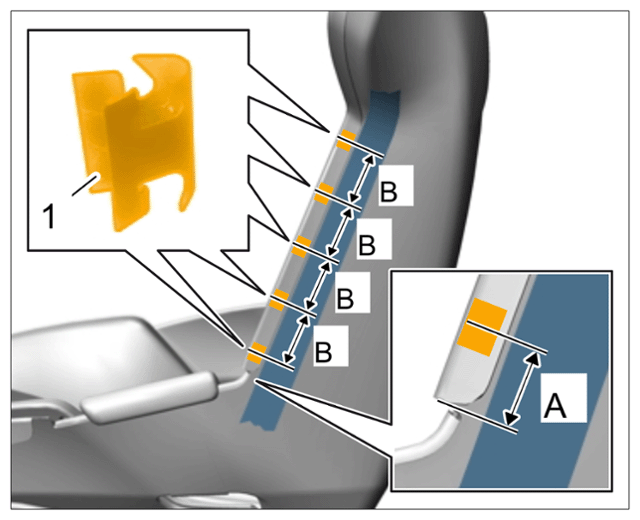

| Fastening clamp for seat shell |
Dimension B |
Length |
55 mm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Backrest clamps |
| Fastening clamp for seat shell |
Dimension A |
Length |
20 mm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Backrest clamps |
