Removing Front Backrest Cover (Sports Bucket Seat)

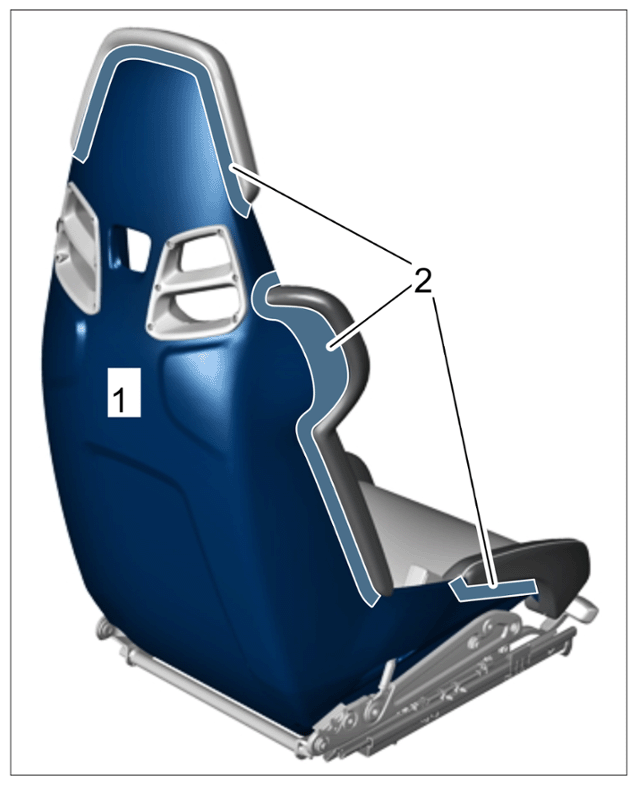

Mask the backrest shell -1- in the marked area -2- with adhesive tape.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat shell preparation

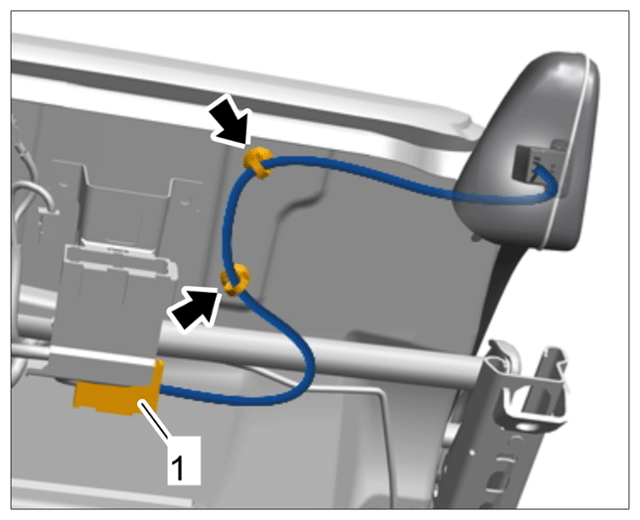

Disconnect plug connection for height adjuster.
1. 2.1 Disconnect plug connection -1- .
2. 2.2 Unclip line -Arrows- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

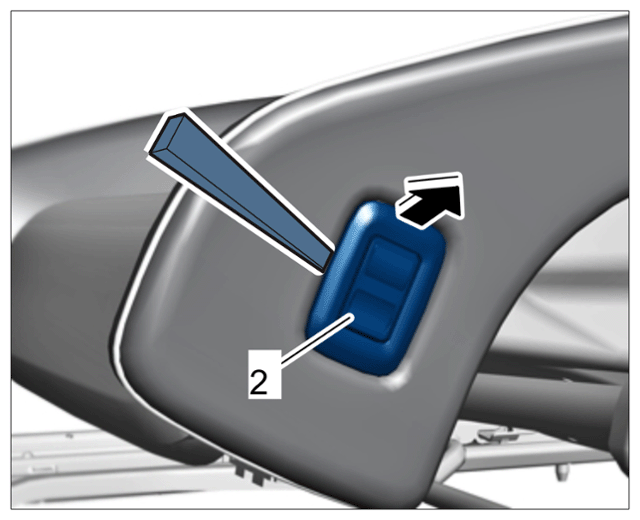

Unclip height adjustment switch -2- (-Arrow- ) and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Height adjustment device

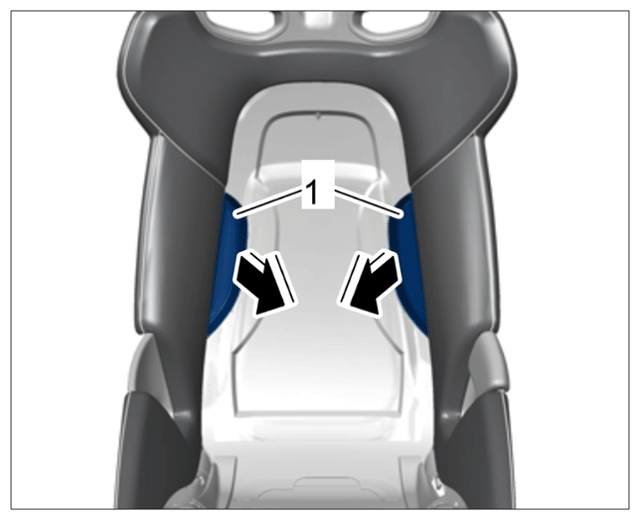

Unclip trims -1-Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front seat trims (sports bucket seat)

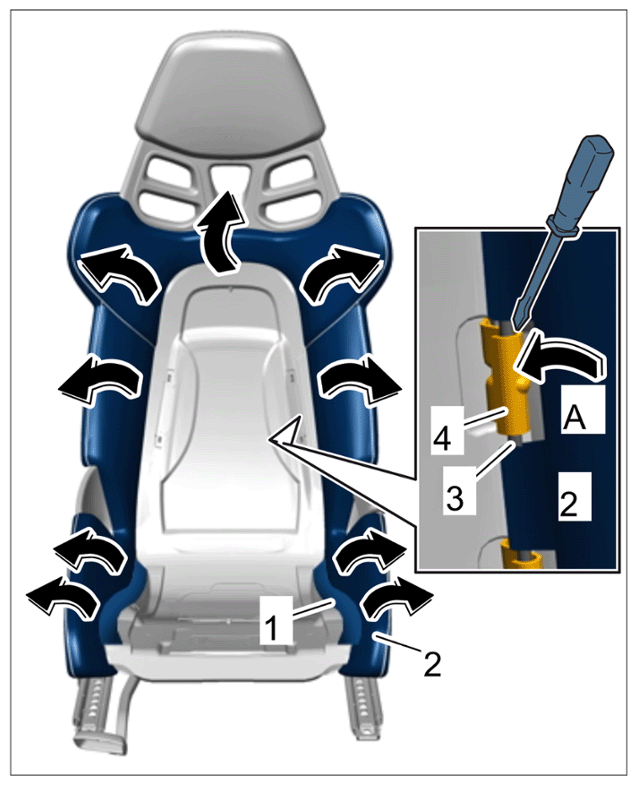

Remove cover.
1. 5.1 Pull off cover -2- at the hook and loop fasteners -1- all the way around -Arrows- .
2. 5.2 Disengage reinforcement -3- in the side airbag area from the bracket -4-Arrow A- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Airbag reinforcement

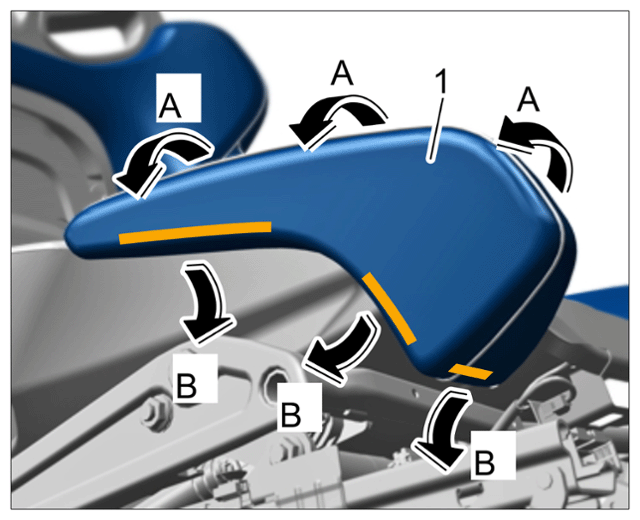

Press seat cover -1- down over the side cushion -Arrows A- and disengage it at the seat shell -Arrows B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat cover for sides

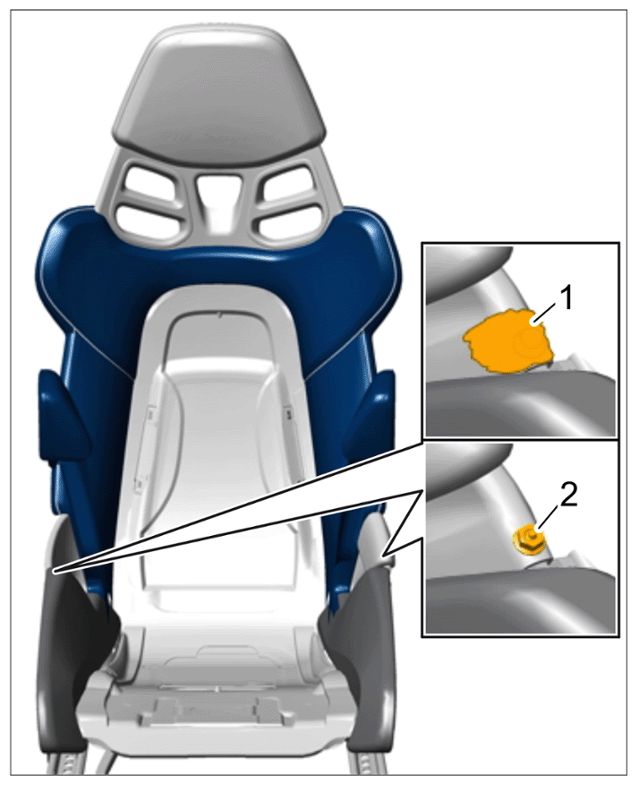

Remove mounting for belt feed-through element.
1. 7.1 Pull off felt adhesive tape -1- .
2. 7.2 Unscrew fastening nut -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for belt feed-through element

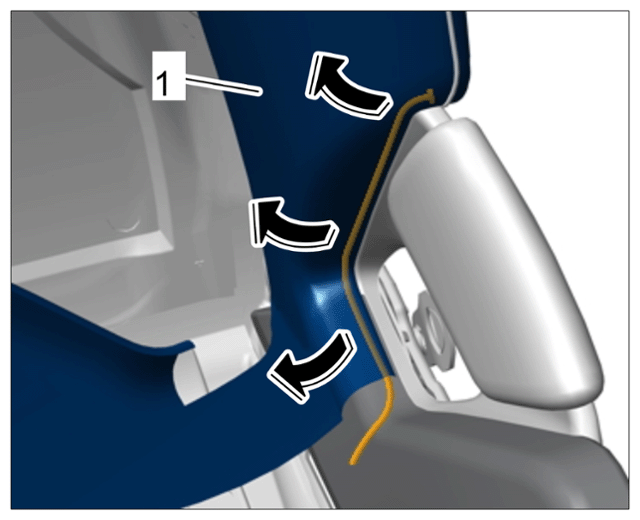

Remove seat cover -1- in the belt feed-through element area -Arrows- .
To do this, pull the Bowden cable out of the seat cover. This must be replaced following removal.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt guide cover

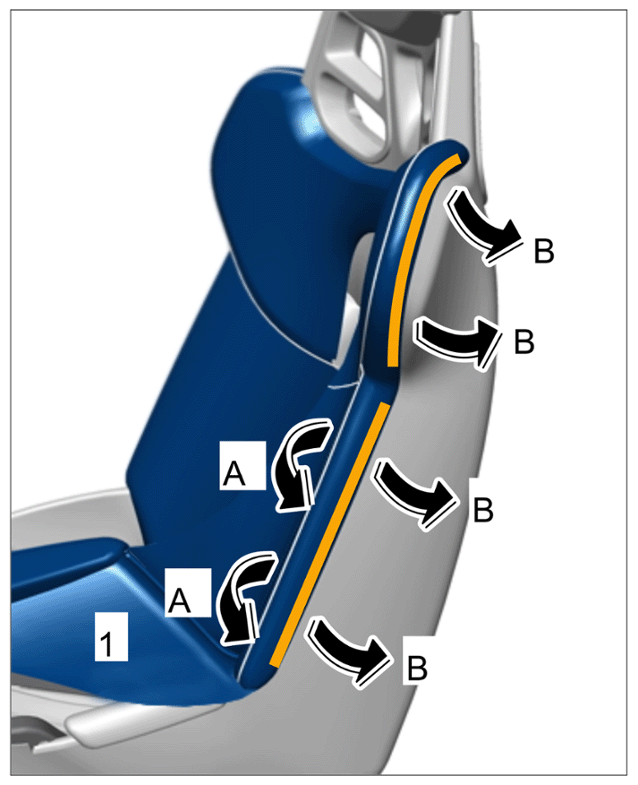

Press seat cover -1- down over the side cushion -Arrows A- and disengage it at the seat shell -Arrows B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat cover for sides

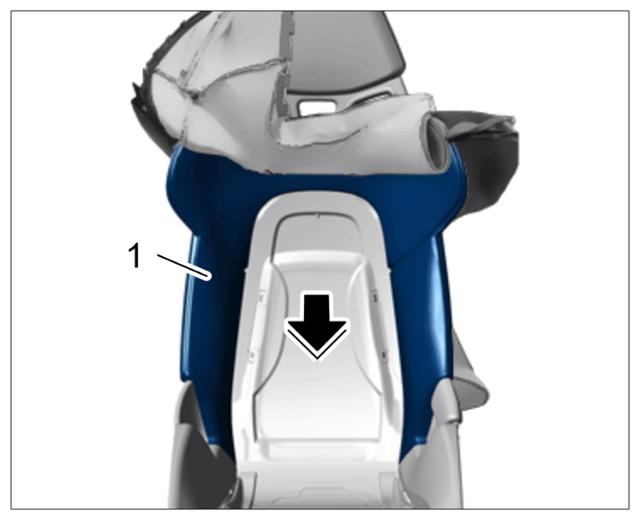

Remove padding -1- (-Arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Padding for front seat (sports bucket seat)

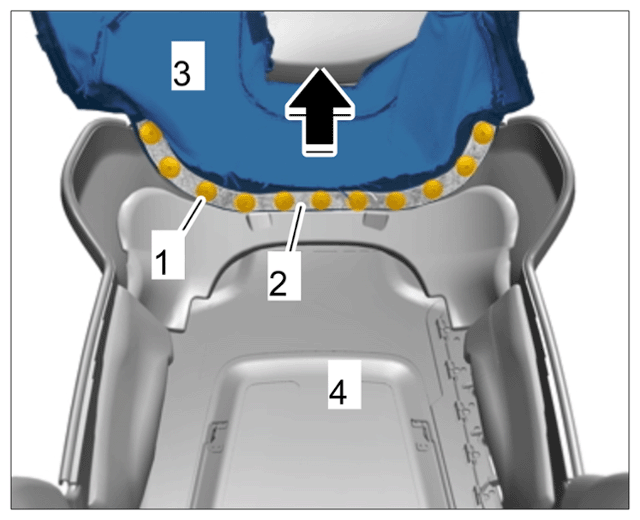

Remove cover.
1. 11.1 Unclip plastic rivets -1- .
2. 11.2 Remove reinforcement -2- with backrest cover -3- from the seat shell -4-Arrow- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest seat cover
