Removing Front Backrest Cover

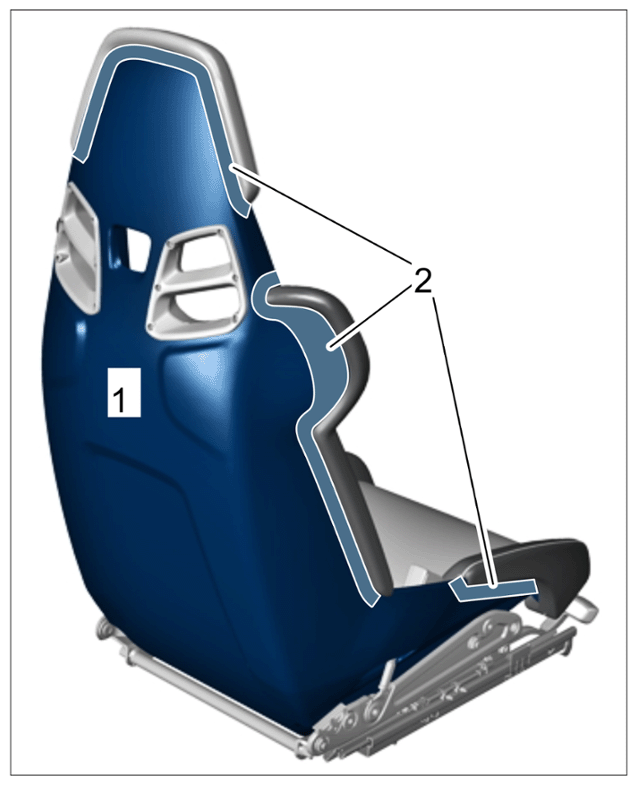

1. Mask the backrest shell -1-  in the marked area -2-  with adhesive tape (2-3 layers).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Backrest shell

2. Disconnect plug connection for height adjuster.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

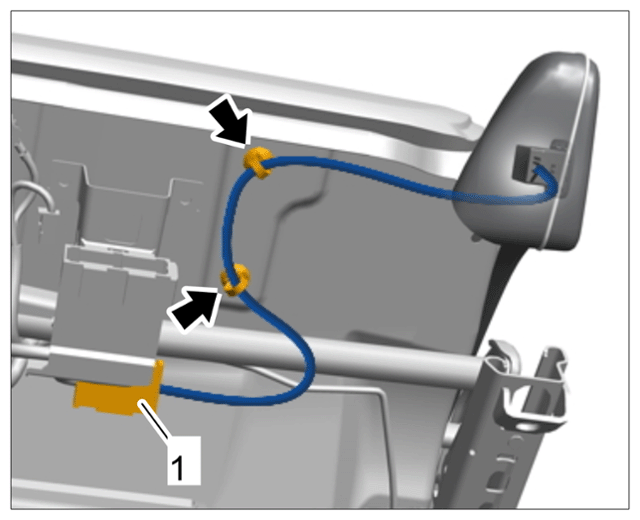

   Wire harness

   1. 2.1  Disconnect plug connection -1-  .
   2. 2.2  Unclip line -Arrow-  .
3. Remove height adjustment switch -2-  by unclipping it -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

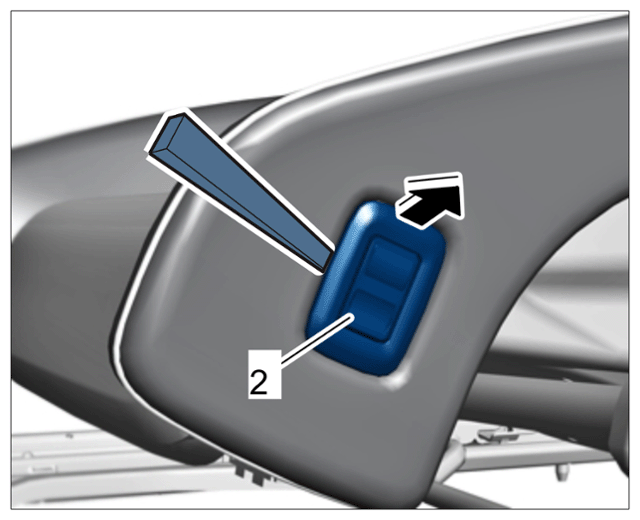

   Height adjustment device

4. Unclip trims -1-Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

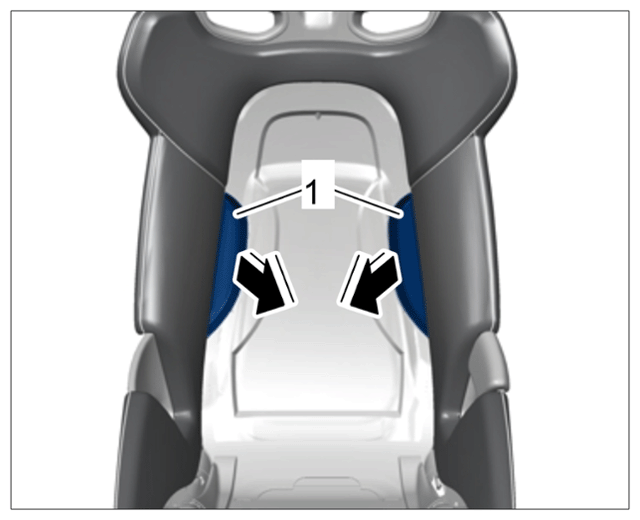

   Trims

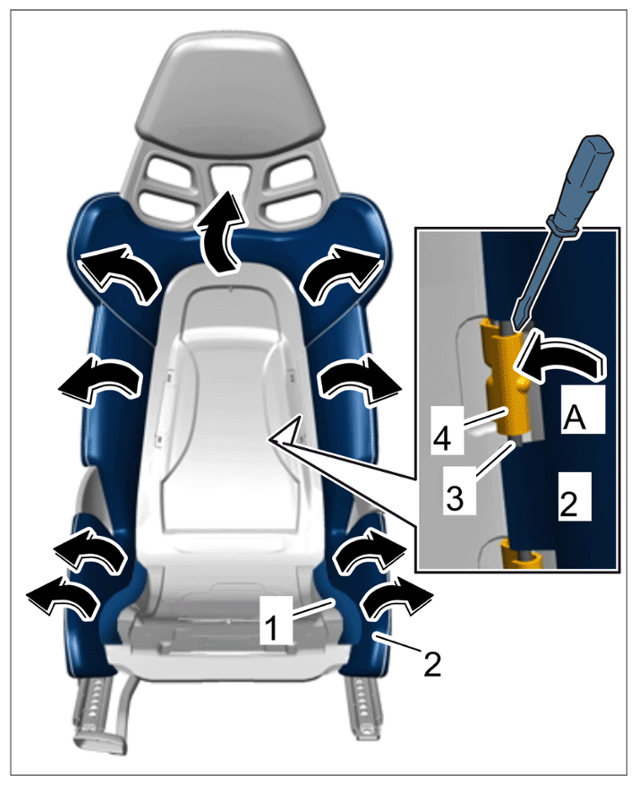

5. Remove cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Airbag reinforcement

   1. 5.1  Pull off cover -2-  at the Velcro fasteners -1-  all the way around -Arrow-  .
   2. 5.2  Unhook the reinforcement -3-  in the side airbag area from the holder -4-  . -Arrow A-

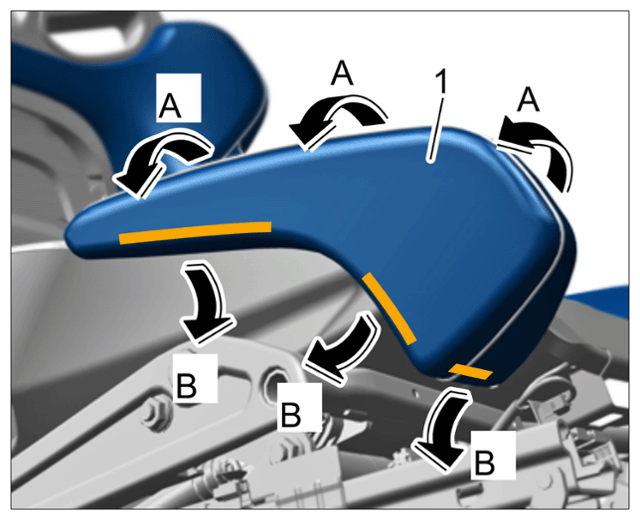

6. Press seat cover -1-  down over the side cushion -Arrow B-  and disengage it at the seat shell -Arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Side cover

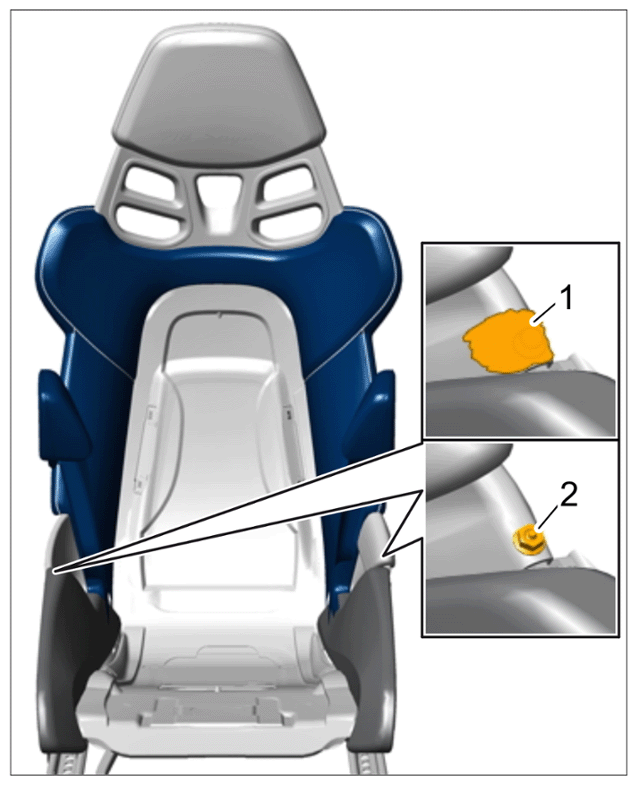

7. Remove mounting for belt feed-through element.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening mounting for belt feed-through element

   1. 7.1  Pull off felt adhesive tape -1-  .
   2. 7.2  Unscrew nut -2-  .

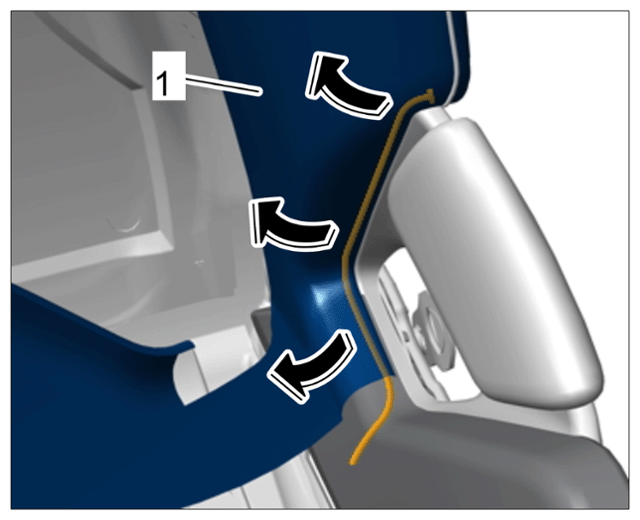

8. Remove the seat cover -1-  from the belt guide area. -Arrows-

   To do this, pull the Bowden cable out of the seat cover. This must be replaced following removal.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Seat cover on belt guide

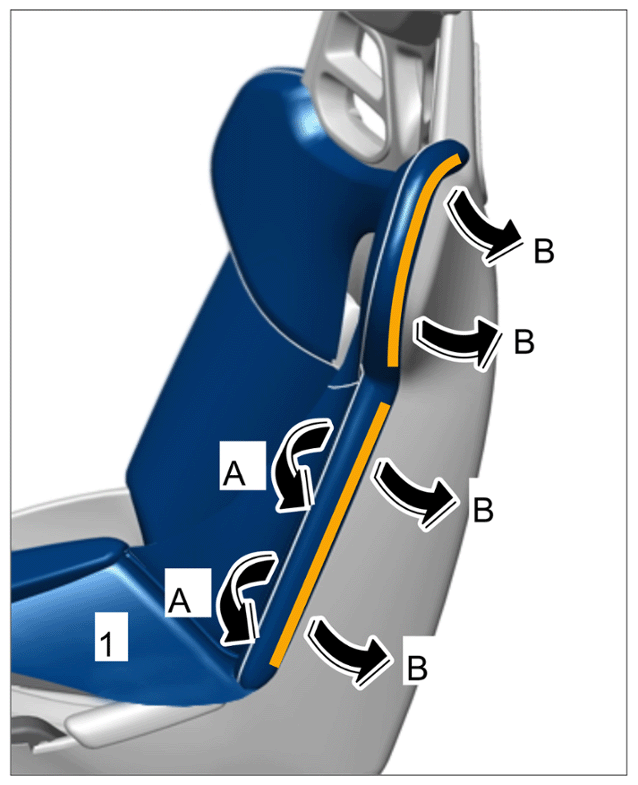

9. Press seat cover -1-  down over the side cushion -Arrow B-  and disengage it at the seat shell -Arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Seat cover for sides

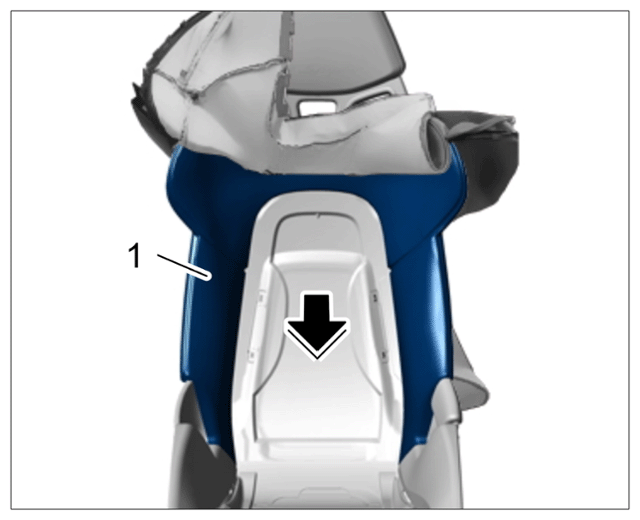

10. -1-  Remove padding. -Arrow-

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Padding

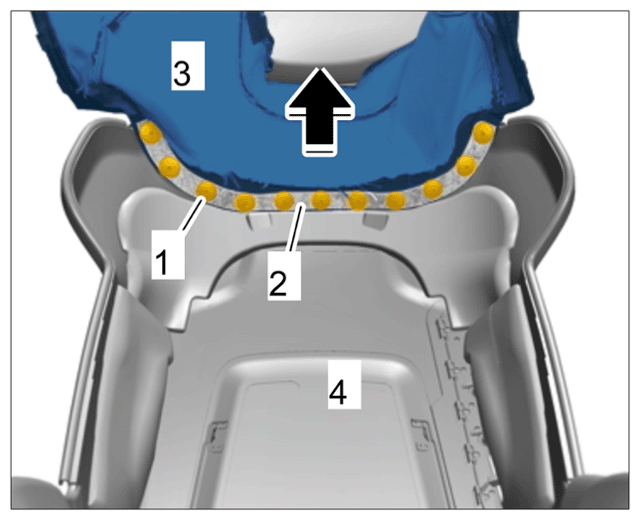

11. Remove cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest cover

1. 11.1  Unclip plastic rivets -1-  .
2. 11.2  Remove reinforcement -2-  with backrest cover -3-  from the seat shell -4-  (-Arrow-  ).
