Removing And Installing Cover For Front Backrest (Sports Seat Plus)

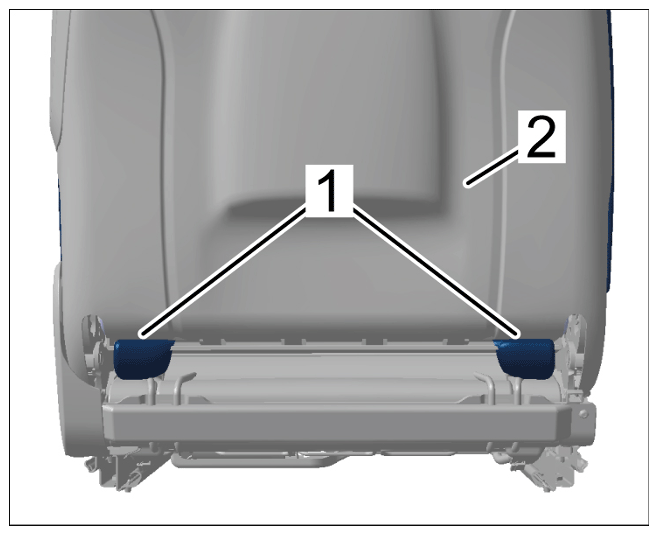

Unclip cover for front backrest -1- using a suitable tool and remove it from the cushion carrier -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detaching cover for front backrest from cushion carrier

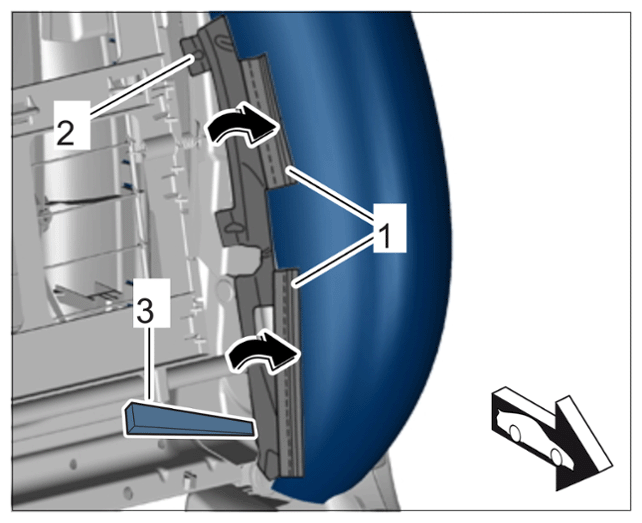

Loosen cover piping -1- at the left and right using a suitable tool -3- and remove it from the fixing clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening cover piping

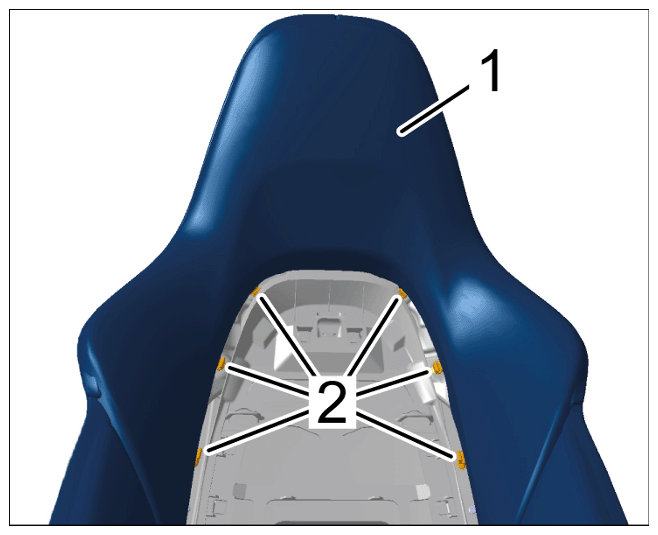

Detach cover for front backrest -1- from the fixing clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detaching cover for front backrest at the top

Information

Only for vehicles with heated seats.

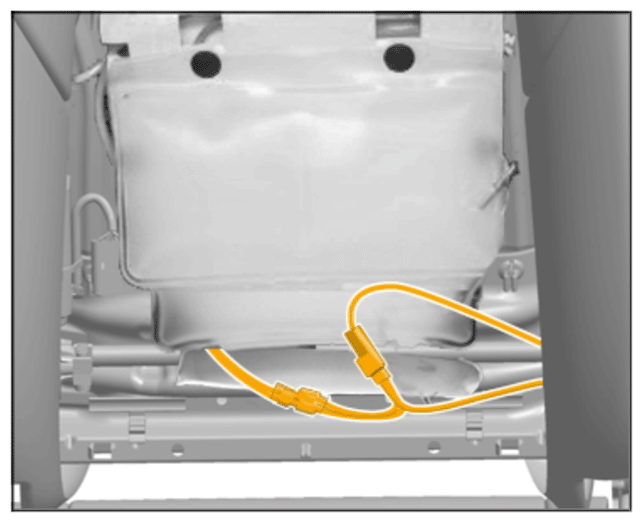

Disconnect electric plug connections for backrest side bolster heating > Disconnecting electric plug connections for backrest side bolster heating .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connections for backrest side bolster heating

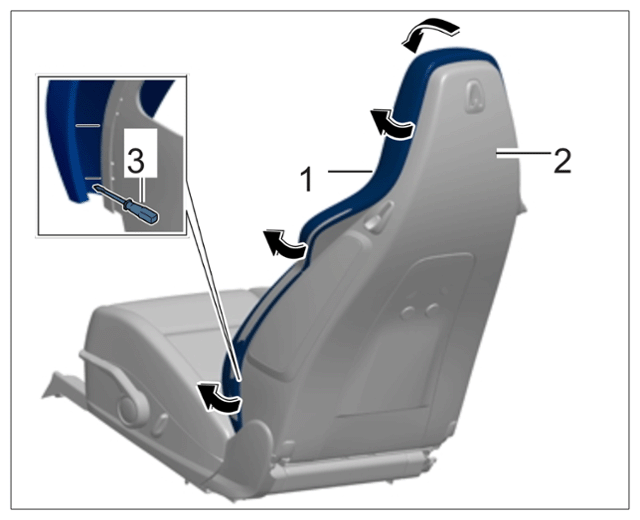

Detach cover for front backrest -1- from the cushion carrier -2- , starting from the bottom using a suitable tool -3- and pull it out all around by hand -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging cover for front backrest

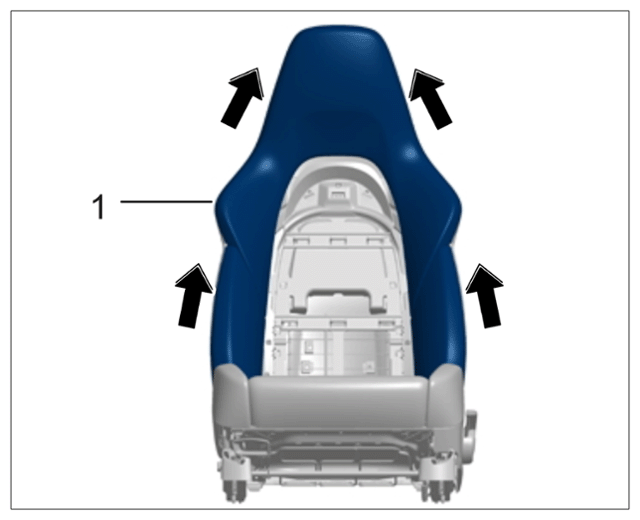

Remove cover for front backrest -1- (-arrows- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover for front backrest
Check all fixing clips for damage and replace them if necessary.
Installation is performed in reverse order.
